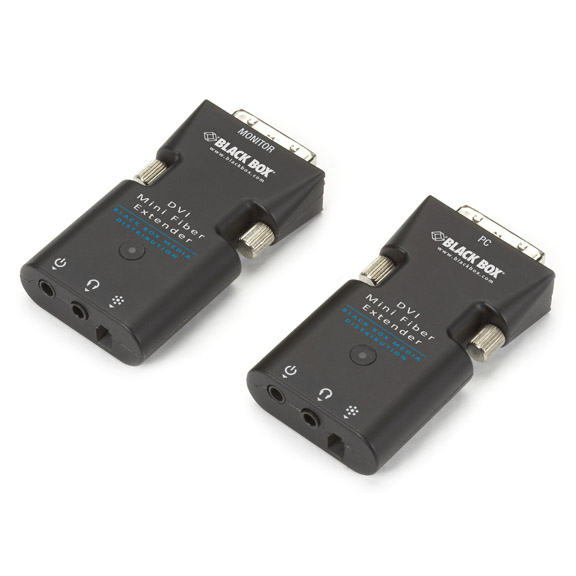

AVX-DVI-FO-MINI

Photo may show similar product

Other views

Mini Extender Kit for DVI-D and Stereo Audio over Fiber

Extend DVI-D video and stereo audio up to 1.5 kilometers over a single strand of single-mode or 500 meters over multimode fiber.

AVX-DVI-FO-MINI

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Extends Full HD video and 24-bit stereo audio—with no signal loss.
  • Very compact, in-line extender units. No need to make room for external boxes.
  • Great for reaching digital signage in public information systems, transit stations, and factories.


  • Description

    Mini Extender Kit for DVI-D and Stereo Audio over Fiber


    Quick Facts

  • Extends Full HD video and 24-bit stereo audio—with no signal loss.
  • Very compact, in-line extender units. No need to make room for external boxes.
  • Great for reaching digital signage in public information systems, transit stations, and factories.

  • Further Details

  • Ideal for applications with a high level of EMI/RFI in the environment.
  • Transmits over just a single strand of single-mode fiber.
  • Offers powerful optical output and reliable sensitivity.
  • EDID programmable for use with the latest screens.
  • Maximum resolution of 1920 x 1200 (WUXGA) at 60 Hz.
  • Reach additional screens with optional optical splitters.
  • Lower power consumption.

  • This economical extender kit enables you to transmit DVI and stereo audio signals longer distances over a single optical fiber strand—without compromising the quality of the original video or audio signal.

    Delivering Full HD video resolution to a screen up to 1.5 kilometers (0.9 mi.) away, the Mini Extender Kit for DVI-D and Stereo Audio over Fiber is ideal for transmitting DVI-D video and CD-quality audio to remote digital signage.

    It also supports 24-bit true color depth, which makes it great for sharing video in healthcare, education, multimedia production, or process engineering applications.

    What's more, because it uses optical media for extension, the signal is immune to interference from nearby machinery or equipment and is highly secure.

    For optimum display communications, the extender reads EDID data from your latest, custom-resolution screens. Just plug it into the display and program it.

    Plus, the extender units are super-compact. The receiver can be hidden quite easily behind a screen, and the transmitter can be installed in-line at a player or other source device.

    Need to reach more than one distant screen? Add a 4- or 8-port splitter, or a 2-port daisychainable version, which enables you to not only extend to this kit's receiver but also output signals via fiber to a second splitter for additional screen connectivity.

    What's included:
    • Transmitter
    • Receiver
    • (2) power supplies
    • (2) 3.5-mm audio cables
    • User manual



    Technical Specifications for Mini Extender Kit for DVI-D and Stereo Audio over Fiber:

    Audio Channels 24-bit, stereo
    Audio Frequency Response 20 Hz-20 kHz
    Audio Impedance 60 kohms
    Audio Level (Maximum) 2 V pp
    Fiber Data Rate 5 Gbps (2.5 Gbps per single wavelength)
    Fiber Distance (Maximum) Single-mode fiber: 1.5 km (0.9 mi.);
    Multimode fiber: 500 m (1640 ft.)
    Fiber Receiver Sensitivity -21 dB (maximum)
    Fiber Transmission Power -5 dB (minimum)
    Fiber Wavelength 1310/1550 nm (dual wavelength)
    Video Color Depth 24-bit true color
    Video Resolution (Maximum) 1920 x 1200 (WUXGA) at 60 Hz
    Video Standard DVI 1.0
    CE Approval Yes
    RoHS Yes
    Power Each unit: Input: 100-240 VAC, 50-60 Hz, autosensing;
    Output: 5 VDC;
    Consumption: 2.5 watts (maximum)
    Connectors Transmitter unit: Video input: DVI-D M; Audio input: (1) 3.5-mm jack (stereo); Fiber interconnect: (1) LC;
    Receiver unit: Video output: DVI-D M; Audio output: (1) 3.5-mm jack (stereo); Fiber interconnect: (1) LC
    Indicators Each unit: (2) color LEDs indicating Power, Link Status
    Size Each unit: 0.6"H x 2.7"W x 1.5"D (1.5 x 6.9 x 3 cm)
    Weight Each unit: 0.2 lb. (0.1 kg)

    This product works with:
    • 8-Port Optical Splitter for AVX-DVI-FO-MINI Extender Kit (AVX-DVI-FO-SP8)
    • 4-Port Optical Splitter for AVX-DVI-FO-MINI Extender Kit (AVX-DVI-FO-SP4)
    • 2-Port Daisychainable Optical Splitter for AVX-DVI-FO-MINI Extender Kit (AVX-DVI-FO-SPCS)
    • USB Power Cable for AVX-DVI-FO-MINI Extender Kit (AVX-DVI-FO-USBPS)
    • Spare Power Supply for AVX-DVI-FO-MINI Extender Kit (AVX-DVI-FO-PS)
    • Single-Mode, 9-Micron Duplex Fiber Optic Cable, LC–LC (EFN310-LCLC)
    • 10-Gigabit Multimode, 50-Micron Fiber Optic Cable, Zipcord, LC–LC (EFNT010-LCLC)
