Datacom > Extenders & Line Drivers

click photo to enlarge

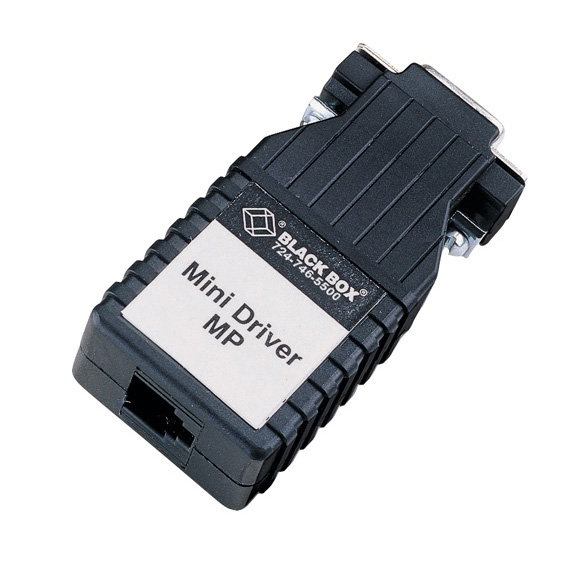

ME777A-MSP

Photo may show similar product

Other views

Mini Driver MP9, DB9 Male

Compact drivers for sending RS-232 data over two or four wires.

ME777A-MSP

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Measuring less then 3 inches high, they're ideal for tight spaces.
  • Plug right into your machine's DB9 serial port, so you still have room for other connections.
  • Runs up to 115.2 kbps as far as 1.4 miles (2.2 km).

  • Description

    Mini Driver MP9 (Asynchronous), RJ-45/DB9 Male


    Quick Facts

  • Measuring less then 3 inches high, they're ideal for tight spaces.
  • Plug right into your machine's DB9 serial port, so you still have room for other connections.
  • Runs up to 115.2 kbps as far as 1.4 miles (2.2 km).

  • Further Details

  • Supports distances up to 5 miles (8 km) at 1200 bps.
  • Operates half- or full-duplex, async, multipoint or point-to-point over two or four wires.
  • Built-in surge protection—up to 600 watts per wire!
  • Handles up to 50 multipoint drops.

  • Technical Specifications for Mini Driver MP9, DB9 Male:

    Distance — 5 mi. (8 km) at 1200 bps (24 AWG wire); 1.4 mi. (2.2 km) at 115.2 kbps
    Operation — 2- or 4-wire, half- or full-duplex
    Protocol — Asynchronous
    Speed (Maximum) — 115.2 kbps
    CE Approval — Yes
    Interface — RS-232
    Connectors — ME775A-MSP: (1) DB9 M, (1) terminal block;
    ME775A-FSP: (1) DB9 F, (1) terminal block;
    ME776A-FSP: (1) DB9 F, (1) RJ-11;
    ME777A-MSP: (1) DB9 M, (1) RJ-45;
    ME777A-FSP: (1) DB9 F, (1) RJ-45
    Power — 6 to 12 VDC from Pins 3, 4, 7, or 9
    Size — 2.7"H x 2.1"W x 0.7"D (6.9 x 5.3 x 1.8 cm)
    NOTE: Order one unit for each attached device.

    This product works with:
    • GigaBase® 350 CAT5e, 350-MHz Bulk Cables, 4-Pair (EYN851A-PB-1100, etc.)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Mini Driver MP9, DB9 Male:


    Connect your Mini Driver MP9, DB9 Male with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $11.50

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $22.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    Mini Driver MP9, DB9 Male ME777A-MSP $114.95

    Mini Driver MP9, DB9 Female ME775A-FSP $111.95

    Mini Driver MP9, DB9 Male ME775A-MSP $111.95

    Mini Driver MP9, DB9 Female ME776A-FSP $114.95

    Mini Driver MP9, DB9 Female ME777A-FSP $114.95
