Datacom > Extenders and Line Drivers


click photo to enlarge

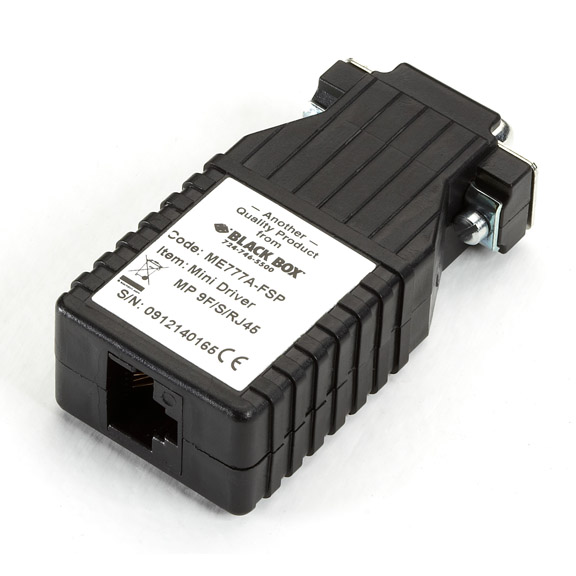

ME777A-FSP

Photo may show similar product

Other views

Mini Driver MP9, DB9 Female

Compact drivers for sending RS-232 data over two or four wires.

ME777A-FSP

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Measuring less then 3 inches high, they're ideal for tight spaces.
  • Plug right into your machine's DB9 serial port, so you still have room for other connections.
  • Runs up to 115.2 kbps as far as 1.4 miles (2.2 km).


  • Description

    Mini Driver MP9 (Asynchronous), RJ-45/DB9 Female


    Quick Facts

  • Measuring less then 3 inches high, they're ideal for tight spaces.
  • Plug right into your machine's DB9 serial port, so you still have room for other connections.
  • Runs up to 115.2 kbps as far as 1.4 miles (2.2 km).

  • Further Details

  • Supports distances up to 5 miles (8 km) at 1200 bps.
  • Operates half- or full-duplex, async, multipoint or point-to-point over two or four wires.
  • Built-in surge protection—up to 600 watts per wire!
  • Handles up to 50 multipoint drops.

  • Technical Specifications for Mini Driver MP9, DB9 Female:

    Distance 5 mi. (8 km) at 1200 bps (24 AWG wire); 1.4 mi. (2.2 km) at 115.2 kbps
    Operation 2- or 4-wire, half- or full-duplex
    Protocol Asynchronous
    Speed (Maximum) 115.2 kbps
    CE Approval Yes
    Interface RS-232
    Connectors ME775A-MSP: (1) DB9 M, (1) terminal block;
    ME775A-FSP: (1) DB9 F, (1) terminal block;
    ME776A-FSP: (1) DB9 F, (1) RJ-11;
    ME777A-MSP: (1) DB9 M, (1) RJ-45;
    ME777A-FSP: (1) DB9 F, (1) RJ-45
    Power 6 to 12 VDC from Pins 3, 4, 7, or 9
    Size 2.7"H x 2.1"W x 0.7"D (6.9 x 5.3 x 1.8 cm)
    NOTE: Order one unit for each attached device.

    This product works with:
    • GigaBase® 350 CAT5e, 350-MHz Bulk Cables, 4-Pair (EYN851A-PB-1100, etc.)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Mini Driver MP9, DB9 Female:


    Connect your Mini Driver MP9, DB9 Female with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamondâ„¢ warranty!
    Cost: $11.10

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamondâ„¢ warranty!
    Cost: $22.19

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Mini Driver MP9, DB9 Female ME775A-FSP $111.95

    Mini Driver MP9, DB9 Male ME775A-MSP $111.95

    Mini Driver MP9, DB9 Female ME776A-FSP $114.95

    Mini Driver MP9, DB9 Male ME777A-MSP $114.95

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $114.95

    Quantity Available: 30

    Quantity

    Warranty

    Total

    Shipping Info

    Weight: 0.15 lbs.
    HxWxD: 0.77 x 6.27 x 6.6 in.

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
