Industrial > Extenders

click photo to enlarge

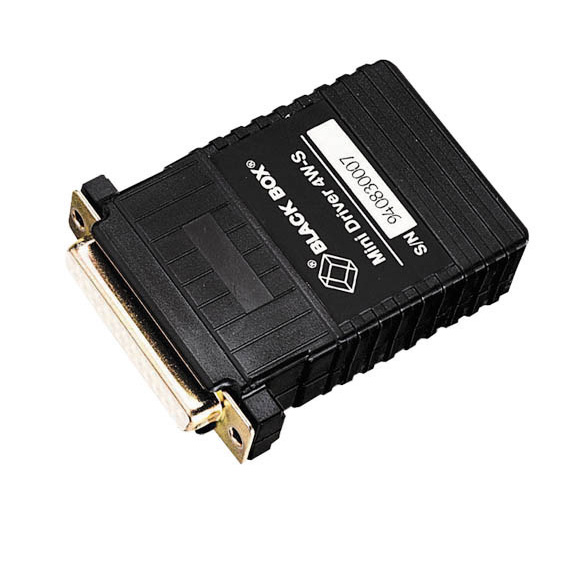

ME756A-FSP

Photo may show similar product

Other views

Mini Driver 4-Wire (4W-S-CL), DB25 Female

The clocking and the distance you need for your sync applications.

ME756A-FSP

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Clocking is crystal controlled.
  • Great distance—up to 8.5 miles (13.6 km).
  • Perfect for tail-circuit applications.
  • Built-in surge protection available.
  • Interface powered.
  • Internal, external, and receive recovery clocking.

  • Description

    Mini Driver 4W-S-CL w/Surge Protection, RJ-45, DB25 F


    Quick Facts

  • Clocking is crystal controlled.
  • Great distance—up to 8.5 miles (13.6 km).
  • Perfect for tail-circuit applications.
  • Built-in surge protection available.
  • Interface powered.
  • Internal, external, and receive recovery clocking.

  • Further Details

    The Mini Driver 4-Wire (4W-S-CL) is designed for point-to-point sync applications that require internal clocking, or external and receive loopback clocking for tail-circuit applications.

    All models carry your data up to 3.5 miles (5.6 km) at 19.2 kbps (over 24 AWG wire). Transformer isolation and optional surge protection keep your equipment safe from ground loops and electrical surges—that’s perfect for between-building connections.


    Technical Specifications for Mini Driver 4-Wire (4W-S-CL), DB25 Female:

    Clocking — Internal, external, recovered
    Distance (Maximum) — 8.5 mi. (13.6 km)
    Operation — 4-wire full-duplex
    Protocol — Synchronous
    Speed (Maximum) — 19.2 kbps
    CE Approval — Yes
    Connectors — ME753A-M: DCE: (1) DB25 M; Line: (1) 5-screw terminal block;
    ME753A-FSP: DCE: (1) DB25 F; Line: (1) 5-screw terminal block;
    ME754A-M: DCE: (1) DB25 M; Line: (1) RJ-11;
    ME756A-F, ME756A-FSP: DCE: (1) DB25 F; Line: (1) RJ-45
    Power — DCE Mode: Pins 4, 9, 20
    Size — 2.7"H x 2.1"W x 0.7"D (6.9 x 5.3 x 1.8 cm)
    Weight — 0.2 lb. (0.1 kg)
    These products work with:
    • GigaBase® 350 CAT5e, 350-MHz Bulk Cables, 4-Pair (EYN851A, etc.)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Mini Driver 4-Wire (4W-S-CL), DB25 Female:


    Connect your Mini Driver 4-Wire (4W-S-CL), DB25 Female with:
