Datacom > Converters

click photo to enlarge

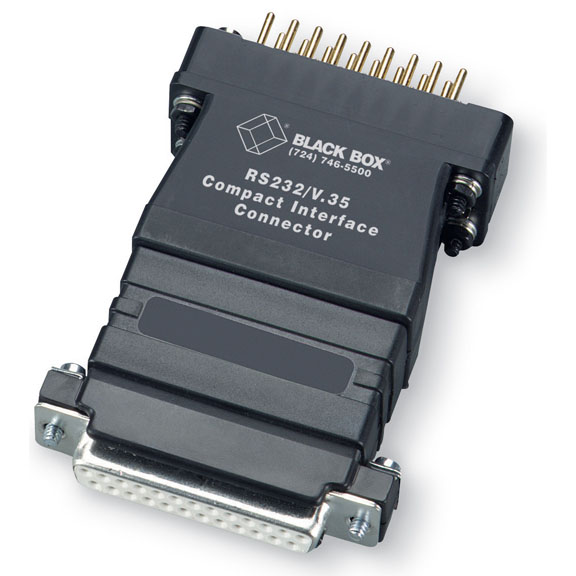

IC956A-M

Photo may show similar product

Other views

Mini Converter RS-232 to V.35 (without Cable), DB25 Male/M34 Female

Access V.35 lines with RS-232 equipment at speeds up to 384 kbps.

IC956A-M


One year Warranty

Product Highlights

  • No additional cables required!
  • Supports rates to 384 kbps.
  • DTE/DCE switchable; no other configuration needed.
  • Protocol-independent and passes all appropriate data, clocking, and control signals.

  • Description

    Mini Converter RS-232 to V.35 (without Cable), DB25 Male/M34 Female


    Quick Facts

  • No additional cables required!
  • Supports rates to 384 kbps.
  • DTE/DCE switchable; no other configuration needed.
  • Protocol-independent and passes all appropriate data, clocking, and control signals.

  • Further Details

  • Protocol-independent and passes all appropriate data, clocking, and control signals.
  • Half- or full-duplex operation.
  • It's as easy to use as patch cable!
  • Just plug this converter in-line for high-speed communication between otherwise incompatible RS-232 and V.35 devices.

  • Technical Specifications for Mini Converter RS-232 to V.35 (without Cable), DB25 Male/M34 Female:

    Distance (Maximum) — 6.5 ft. (2 m)
    CE Approval — Yes
    Connectors — IC955A-M: (1) DB25 M, (1) M/34 M
    IC956A-M: (1) DB25 M, (1) M/34 F
    IC955A-F: (1) DB25 F, (1) M/34 M
    Power — From the interface
    Size — 1.7"H x 0.9"W x 2.7"D (4.3 x 2.3 x 6.9 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Mini Converter RS-232 to V.35 (without Cable), DB25 Male/M34 Female:


    Connect your Mini Converter RS-232 to V.35 (without Cable), DB25 Male/M34 Female with:
