Video & Multimedia > Extenders

click photo to enlarge

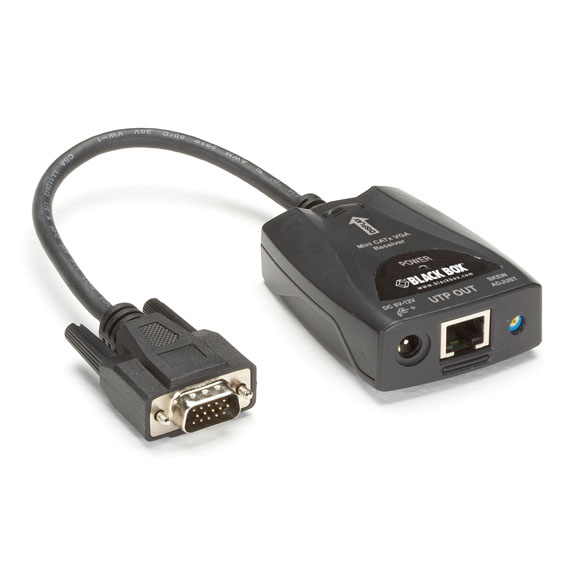

VX-VGA520-RA

Photo may show similar product

Other views

Mini CATx VGA Extender Receiver with Skew Adjustment, Standalone

A compact, budget-friendly CATx VGA receiver for extending video as far as 500 feet.

VX-VGA520-RA

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Works with a compatible transmitter to extend VGA video up to 500 feet (152.4 m) over ordinary CAT5/5e/6 cable.
  • Eliminates the need for bulky VGA cables, allowing you to use UTP cabling already installed.
  • Features skew compensation adjustment for optimizing image quality at maximum distances.

  • Description

    Mini CATx VGA Extender Receiver with Skew Adjustment, Standalone


    Quick Facts

  • Works with a compatible transmitter to extend VGA video up to 500 feet (152.4 m) over ordinary CAT5/5e/6 cable.
  • Eliminates the need for bulky VGA cables, allowing you to use UTP cabling already installed.
  • Features skew compensation adjustment for optimizing image quality at maximum distances.

  • Further Details

  • Enables you to extend VGA resolutions up to 1920 x 1200, including 1080p quality video.
  • Small form factor standalone unit for space-saving installation (wallplate receiver also available).
  • Can be powered conveniently from either end of the CATx link, locally or remotely.

  • There’s no need to use expensive, hard-to-terminate VGA cable for extending high-resolution video. The Mini CATx VGA Extender enables you to use ordinary CAT5/5e/6 UTP cable to link a video monitor or display up to 500 feet (152.4 m) from your PC or video source.

    The model featured here is the system’s standalone receiver (a single-gang wallplate version is also available). It works with the separately available transmitter (available in a standalone or wallplate version) that converts a PC’s VGA signal into a format suitable for transmission over a non-networked CATx link. The transmitter communicates point to point over the link with the receiver, which then converts the signal back to VGA for connection to your monitor, projector, or other display device.

    In the transmission, there’s little or no degradation of video quality. Supporting VGA resolutions up to 1920 x 1200 (including 1080p video) at even the maximum distance of 500 feet (152.4 m), the Mini CATx VGA Extender system features skew compensation controllable by the receiver. Using equalization and gain control, you can fine-tune video for a clear image on your remote display.

    Plus, the system has an EDID copy feature. With a push of a button on the transmitter unit, you can copy precise EDID info from the remotely attached monitor back to the source computer’s video card. This way, you can ensure optimum video communications between the two, with the video card adapting automatically to the monitor’s supported resolution, refresh rate, and timing characteristics across the CATx link.

    Even better, the Mini CATx VGA Extender system requires power only at one end—great for applications where you’re short on outlets. Just order the separately available AC power supply (VX-VGA520-PS) and plug in at either end of the link, whichever side is most convenient for you.

    You can also transport the very compact standalone transmitter and receiver units and install them with ease. Their small form factor design makes them ideal for discreet installation in areas frequented by the public.

    NOTE: For multichannel distribution of VGA video over CAT5 or higher cable, see our Mini CAT5 Extender family (AC504A-WP, AC504A-WP-R, AC600A–AC603A, AC654A).

    This product works with:
  • Mini CATx VGA Extender AC PSU (VX-VGA520-PS)
  • Mini CATx VGA Extender Transmitter, Standalone (VX-VGA520-TA)
  • Mini CATx VGA Extender Transmitter, Wallplate (VX-VGA520-TB)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for Mini CATx VGA Extender Receiver with Skew Adjustment, Standalone:

    Distance (Maximum) — 500 ft. (152.4 m)
    Resolution (Maximum) — 1920 x 1200
    CE Approval — Yes
    RoHS — Yes
    Connectors — Video: (1) HD15 F on 7" (17.8-cm) lead;
    Interconnect: (1) RJ-45
    Power — From the separately ordered VX-VGA520-PS power supply unit (plugged into either the transmitter or receiver)
    Size — 0.75"H x 2.2"W x 2.75"D (19.1 x 5.6 x 7 cm) with VGA connector on 7" (17.8-cm) lead
    Weight — 0.2 lb. (0.1 kg)
    This product works with:
  • Mini CATx VGA Extender AC PSU (VX-VGA520-PS)
  • Mini CATx VGA Extender Transmitter, Standalone (VX-VGA520-TA)
  • Mini CATx VGA Extender Transmitter, Wallplate (VX-VGA520-TB)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for Mini CATx VGA Extender Receiver with Skew Adjustment, Standalone:

    Manuals

    • Mini CATx VGA Extender User Manual
      User Manual for VX-VGA520-TA, VX-VGA520-RA, VX-VGA520-TB, VX-VGA520-RB, and VX-VGA520-PS (1)
