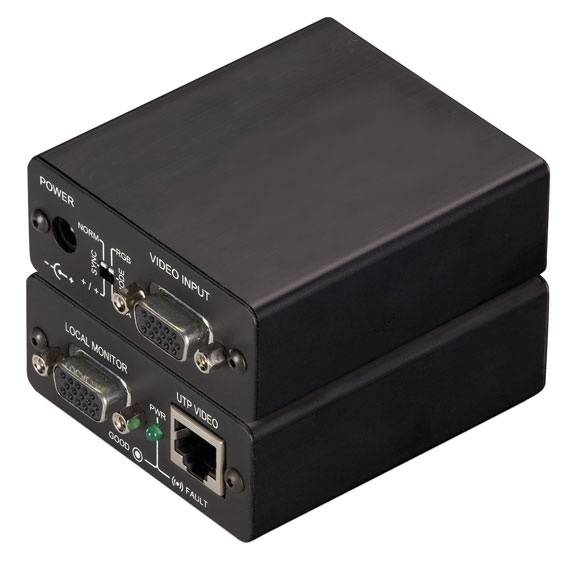

AC603A

Photo may show similar product

Other views

Mini CAT5 VGA Extender Transmitter with Local Port

Offers a single-channel extension and local monitoring.

AC603A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Sends video over up to 500 feet of ordinary CAT5 cable.
  • Eliminates the need for bulky VGA cables.
  • Buffers and boosts signals for a clear video image.


  • Description

    Mini CAT5 VGA Extender Transmitter with Local Port


    Quick Facts

  • Sends video over up to 500 feet of ordinary CAT5 cable.
  • Eliminates the need for bulky VGA cables.
  • Buffers and boosts signals for a clear video image.

  • Further Details

    This transmitter suits single-channel extensions and features a local loopthrough HD15 port, which you can use to attach a VGA monitor for a local display.

    And because it supplies "phantom power" over the CAT5 interconnecting link, it only requires power at one end in most applications. This can be either through the included power supply or through the Mini CAT5 VGA Receiver (AC602A) at the other end.

    So, say good-bye to bulky, expensive, and difficult-to-terminate VGA cable. Black Box® Mini CAT5 Extenders enable you to use ordinary CAT5 UTP cable to connect video monitors up to 500 feet (152.4 m) from your PC or video source.

    The transmitters amplify the signal for clean and crisp transmission, and differential signaling eliminates ground loops and noise. In the transmission, there's little or no degradation of video quality, and they handle resolutions up to 1600 x 1200 at any refresh rate. The VGA models work with VGA, SVGA, XGA, and UXGA video.

    You can also transport them and install them with ease. Rugged and reliable, the extender units feature a compact plastic enclosure that can withstand the daily grind and frequent cable changes.


    Technical Specifications for Mini CAT5 VGA Extender Transmitter with Local Port:

    Distance (Maximum) 500 ft. (152.4 m)
    Resolution (Maximum) 1600 x 1200 at 300 ft. (91.4 m) or 1280 x 1024 at 500 ft. (152.4 m)
    CE Approval Yes
    Connectors Video input: (1) HD15 F,
    Local monitor: (1) HD15 F,
    Interconnect: (1) shielded RJ-45
    Power 100-240 VAC, 50-60 Hz, autosensing
    Size 0.8"H x 1.7"W x 4.5"D (2 x 4.3 x 11.4 cm)
    These products work with:
  • CAT5 100-MHz Solid Conductor Cable, 4-Pair, Straight-Pinned (EYN556MS, EYN550MS)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for Mini CAT5 VGA Extender Transmitter with Local Port:

    Manuals

    • Mini Cat5 VGA Transmitter With Local Port
      Installation/User

    Product Data Sheets
