Video & Multimedia > Splitters

click photo to enlarge

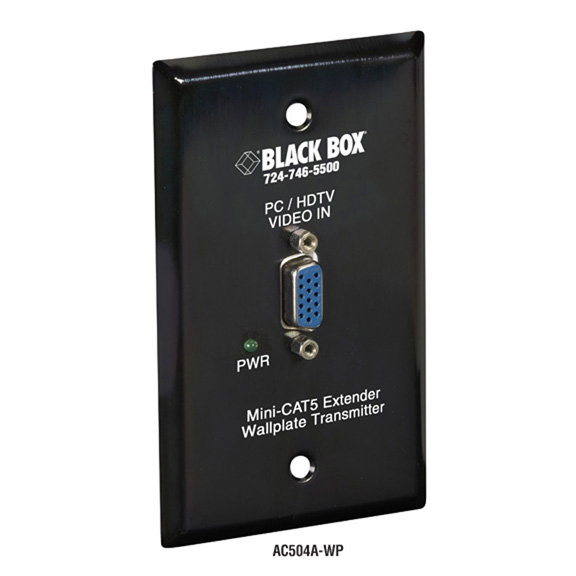

AC504A-WP

Photo may show similar product

Other views

Mini CAT5 VGA Extender Transmitter in Wallplate

Save space and simplify your video distribution application.

AC504A-WP


One year Warranty

Product Highlights

  • Sends video over up to 500 feet of ordinary CAT5 cable.
  • Eliminates the need for bulky VGA cables.
  • Buffers and boosts signals for a clear video image.

  • Description

    Mini CAT5 VGA Extender Transmitter in Wallplate


    Quick Facts

  • Sends video over up to 500 feet of ordinary CAT5 cable.
  • Eliminates the need for bulky VGA cables.
  • Buffers and boosts signals for a clear video image.

  • Further Details

    This extender transmitter not only sends video up to 500 feet (152.4 m) over CAT5 and enables you to eliminate bulky VGA cables in your application, but it also has a single-gang wallplate that mounts in any standard junction box—saving you valuable space and simplifying your installation.

    For this reason, the Mini CAT5 VGA Extender Transmitter with Wallplate is ideal for crowded video distribution applications, especially those in which equipment is close to a wall.

    The rear of the extender transmitter has an RJ-45 connector for CAT5 links, and the front has an HD15 connector for local video links, as well as a power supply that connects with screw terminals.

    The extender transmitter amplifies the signal for clean and crisp transmission, and differential signaling eliminates ground loops and noise. In the transmission, there’s little or no degradation of video quality, and it handles resolutions up to 1600 x 1200 at any refresh rate. It works with VGA, SVGA, XGA, and UXGA video.


    Technical Specifications for Mini CAT5 VGA Extender Transmitter in Wallplate:

    Distance (Maximum) — 500 ft. (152.4 m)
    Resolution (Maximum) — 1600 x 1200 at 300 ft. (91.4 m) or 1280 x 1024 at 500 ft. (152.4 m)
    CE Approval — Yes
    Connectors — Video input: (1) HD15 F,
    Interconnect: (1) shielded RJ-45
    Power — External: output voltage: 9 DC center-positive; sends power over UTP
    Size — Single-gang wallplate
    This product works with:
  • CAT5 100-MHz Solid Conductor Cable, 4-Pair, Straight-Pinned (EYN556MS, EYN550MS)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for Mini CAT5 VGA Extender Transmitter in Wallplate:

    Manuals

    • Mini-Cat5 Extender Wallplate Transmiter
      Installation/User

    Product Data Sheets


    Connect your Mini CAT5 VGA Extender Transmitter in Wallplate with:

    Accessory: AC603A

    Mini CAT5 VGA Extender Transmitter with Local Port

    Mini CAT5 VGA Extender Transmitter with Local Port

    Accessory: AC600A

    2-Channel Mini CAT5 VGA Splitter/Extender Transmitter with Local Port

    2-Channel Mini CAT5 VGA Splitter/Extender Transmitter with Local Port

    Accessory: EYN556MS-0010

    CAT5e Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, 10-ft. (3.0-m)

    CAT5e Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, 10-ft. (3.0-m)
