Datacom > Extenders and Line Drivers

click photo to enlarge

ME792A-MSP

Photo may show similar product

Other views

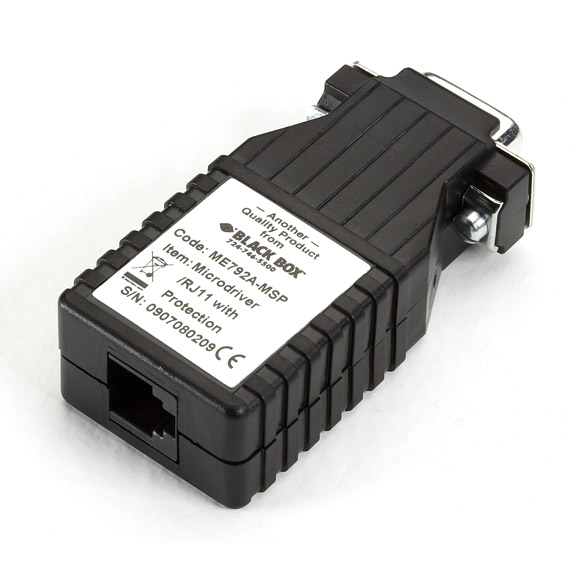

Microdriver 9, RJ-11, DB9 Male with Surge Protection

Tight space? One of these compact drivers is sure to meet your DB9 connection needs.

ME792A-MSP

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • A compact driver that supports distances of 12 miles (19.3 km) or speeds up to 19.2 kbps.
  • Measuring less then 3 inches high, it's ideal for tight spaces.
  • Plug right into your machine's DB9 serial port, so you still have room for other connections.
  • Ideal for PC/AT®, Unisys® 6000 or 7000 series, NCR Tower®, or other applications with limited room for DB9 connections.

  • Description

    Microdriver 9, RJ-11, DB9 Male with Surge Protection


    Quick Facts

  • A compact driver that supports distances of 12 miles (19.3 km) or speeds up to 19.2 kbps.
  • Measuring less then 3 inches high, it's ideal for tight spaces.
  • Plug right into your machine's DB9 serial port, so you still have room for other connections.
  • Ideal for PC/AT®, Unisys® 6000 or 7000 series, NCR Tower®, or other applications with limited room for DB9 connections.

  • Further Details

  • Async, 4-wire line driver ideal for PC/AT® or other systems.
  • Sends data up to 12 miles (19.3 km) at 1200 bps or up to 3.7 miles (5.9 km) at 19.2 kbps.
  • Optional surge protection—up to 600 watts per wire!

    NOTE: Order one unit for each attached device.

    This product works with:
    • GigaBase® 350 CAT5e, 350-MHz Bulk Cables, 4-Pair, 1100-ft. (EYN851A-PB-1100, etc.)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for Microdriver 9, RJ-11, DB9 Male with Surge Protection:

    Distance 12 mi. (19.3 km) at 1200 bps (24 AWG wire); 3.7 mi. (5.9 km) at 19.2 kbps
    Operation 4-wire half- or full-duplex
    Protocol Asynchronous
    CE Approval Yes
    Interface RS-232
    Connectors (1) RJ-11, (1) DB9 M
    Power 6 VDC from Pins 4 or 7
    Size 2.7"H x 2.1"W x 0.7"D (6.9 x 5.3 x 1.8 cm)
    NOTE: Order one unit for each attached device.

    This product works with:
    • GigaBase® 350 CAT5e, 350-MHz Bulk Cables, 4-Pair, 1100-ft. (EYN851A-PB-1100, etc.)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Microdriver 9, RJ-11, DB9 Male with Surge Protection:


    Connect your Microdriver 9, RJ-11, DB9 Male with Surge Protection with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $7.30

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $14.59

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Microdriver 9, DB9 Female ME790A-F $70.95

    Microdriver 9, DB9 Male ME790A-M $70.95

    Microdriver 9 RJ-11, DB9 Female with Surge Protection ME792A-FSP $74.95

    Microdriver 9, RJ-45, DB9 Male ME794A-M $70.95

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $74.95

    Quantity Available: 0

    Quantity

    Warranty

    Total

    (0 available)

    Shipping Info

    Weight: 0.35 lbs.
    HxWxD: 0.5 x 1.2 x 2.5 in.
