Datacom > Switches

click photo to enlarge

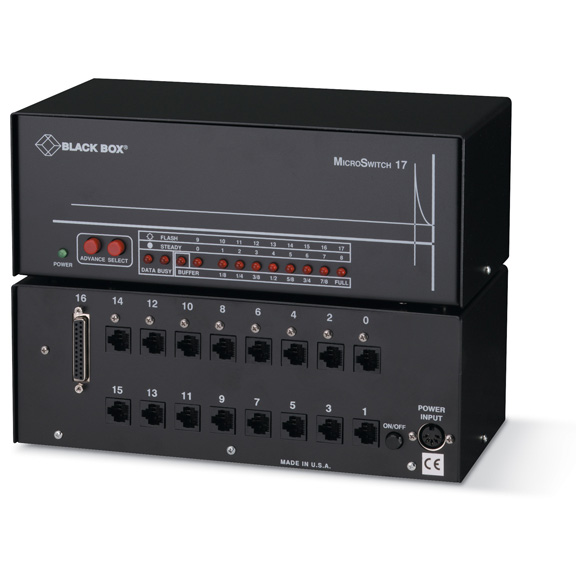

SL017A

Photo may show similar product

Other views

MicroSwitch 17SPN, (16) Serial, (1) Parallel: (16) RJ-45 Female; (1) DB25 Female

Maximum versatility, minimum cost.

SL017A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • The smart-priced choice for office automation, CAD/CAM, machine control, data collection, local area networking, telecommunications, and retail POS.
  • Include a 64 KB memory buffer that can be expanded up to 4 MB.
  • Come in several models with up to 17 ports—serial, parallel, or combinations of both.

  • Description

    MicroSwitch 17SPN, (16) Serial, (1) Parallel: (16) RJ-45 Female; (1) DB25 Female


    Quick Facts

  • The smart-priced choice for office automation, CAD/CAM, machine control, data collection, local area networking, telecommunications, and retail POS.
  • Include a 64 KB memory buffer that can be expanded up to 4 MB.
  • Come in several models with up to 17 ports—serial, parallel, or combinations of both.

  • Further Details

  • Rackmountable with optional bracket.
  • Easy-configuration menu system makes setup simple.

  • These versatile switches have expandable memory and are available with just the ports you need.

    They're expandable.
    Standard memory is 64 KB, dynamically allocated. You can expand with 256 KB, 512 KB, or 1 MB Expansion Boards (see "Related Products" in previous window). Total memory capacity is 4 MB. And eight models are available, from 3 ports up to 17, in serial, parallel, or combinations of both. You can choose the exact model for your system.

    They're up to the demand.
    MicroSwitch can also handle port contention for a host or a modem without the need for a PC. You can share hosts just by connecting terminals.

    A simple status command enables you to see queued jobs by source, destination, status, priority, and length. Up to 64 jobs can be queued at once. Time-outs keep one PC or terminal from monopolizing a port. Be sure to order the appropriate MicroSwitch Adapters for your application (see "Related Products" in previous window).


    Technical Specifications for MicroSwitch 17SPN, (16) Serial, (1) Parallel: (16) RJ-45 Female; (1) DB25 Female:

    Buffer Up to 4 MB with optional Memory Expansion Board
    Data Format 5–8 bits, 1–2 stop bits; odd, even, mark, space, or no parity (user-programmable)
    Flow Control Serial ports: DTR/DSR or X-ON/X-OFF to buffer (user-programmable); ports configured as modems support DCD passthrough;
    Parallel ports: Hardware handshaking, Busy, Acknowledge
    Speed 50 bps to 19.2 kbps, selectable
    CE Approval 230-VAC versions: SL001A, SL003A, SL005A, SL007A
    Indicators LEDs: (1) Power, (1) Buffer, (1) Data, (1) Busy, (9) Port Activity; Select and Advance switches
    Power 115 VAC, 60 Hz
    Size 3.5"H x 10.5"W x 5"D (8.9 x 26.7 x 12.7 cm)
    Weight 6 lb. (2.8 kg)

    These products work with:
  • MicroSwitch Memory Expansion Boards (SL012-C–SL014-C)
  • MicroSwitch Modem, AT®, PC, and Printer Adapters (FA042–FA045)
  • MicroSwitch Rackmount Bracket (RM014A)
  • Extended-Distance Data Cable, 25-Conductor (EDN25C, EDN25T)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for MicroSwitch 17SPN, (16) Serial, (1) Parallel: (16) RJ-45 Female; (1) DB25 Female:

    Application Diagrams


    Connect your MicroSwitch 17SPN, (16) Serial, (1) Parallel: (16) RJ-45 Female; (1) DB25 Female with:

    Accessory: FA042

    MicroSwitch Adapters, Modem (DB25 Male–RJ-45)

    MicroSwitch Adapter, Modem (DB25 M–RJ-45)

    Accessory: FA043

    MicroSwitch Adapter, AT (DB9 F–RJ-45)

    MicroSwitch Adapter, AT® (DB9 F–RJ-45)

    Accessory: FA044

    MicroSwitch Adapter, PC (DB25 F–RJ-45)

    MicroSwitch Adapter, PC (DB25 F–RJ-45)

    Accessory: FA045

    MicroSwitch Printer Adapter (DB25 M–RJ-45)

    MicroSwitch Printer Adapter (DB25 M–RJ-45)

    Accessory: RM014A

    MicroSwitch Rackmount Bracket

    MicroSwitch Rackmount Bracket
