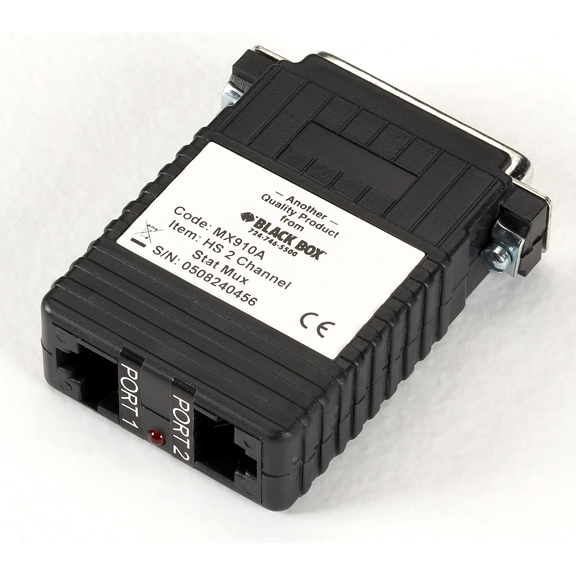

MX910A

Photo may show similar product

Other views

MicroStat-2

Multiplex two async channels onto one async composite link.

MX910A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Multiplexes two subchannels up to 38.4 kbps.
  • Plugs directly into an RS-232 modem port.
  • Connect two async devices over a single async dialup or leased-line modem link.


  • Description

    MicroStat-2


    Quick Facts

  • Multiplexes two subchannels up to 38.4 kbps.
  • Plugs directly into an RS-232 modem port.
  • Connect two async devices over a single async dialup or leased-line modem link.

  • Further Details

  • Supports hardware and software flow control on all ports.
  • Enhanced AT Command Set configuration.
  • Status LED monitors communications link.

  • Now you can virtually double the efficiency of your dialup or leased line modem link. The MicroStat-2 multiplexes two asynchronous channels—at data rates up to 38.4 kbps—onto a single asynchronous point-to-point link. And since both subchannels and the modem channel support these data rates, you can take full advantage of V.34+ modem technology.

    What's more, you get either hardware or software flow control, end to end. Also you can configure both local and remote from the local end.

    The MicroStat-2 derives its power from the RS-232 device, so it doesn't need any outside AC power or batteries.

    NOTE: Must be used in pairs.

    This product works with:
  • RJ-45/DB25 to DTE Adapter Kits (MX530–MX531)
  • RJ-45 (8-Wire) Modular Cable, Straight-Pinned (EL08MS)
    Questions? Contact Tech Support.

  • Technical Specifications for MicroStat-2:

    Flow Control X-ON/X-OFF, RTS/CTS
    Multiplexor Type Statistical
    Speed Subchannel: 110 bps to 38.4 kbps;
    Composite: 1200 bps to 38.4 kbps
    CE Approval Yes
    Interface RS-232, asynchronous
    Connectors (2) RJ-45, (1) DB25 M
    Temperature Tolerance Operating: 32 to 114° F (0 to 45° C)
    Storage: -40 to +176° F (-40 to +80° C)
    Power From the attached DCE device
    Size 2.2"H x 1.7"W x 0.8"D (5.6 x 4.3 x 2 cm)
    Weight 1 lb. (0.5 kg)

    NOTE: Must be used in pairs.

    This product works with:
  • RJ-45/DB25 to DTE Adapter Kits (MX530–MX531)
  • RJ-45 (8-Wire) Modular Cable, Straight-Pinned (EL08MS)
    Questions? Contact Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
