Datacom > Modems & CSUs

click photo to enlarge

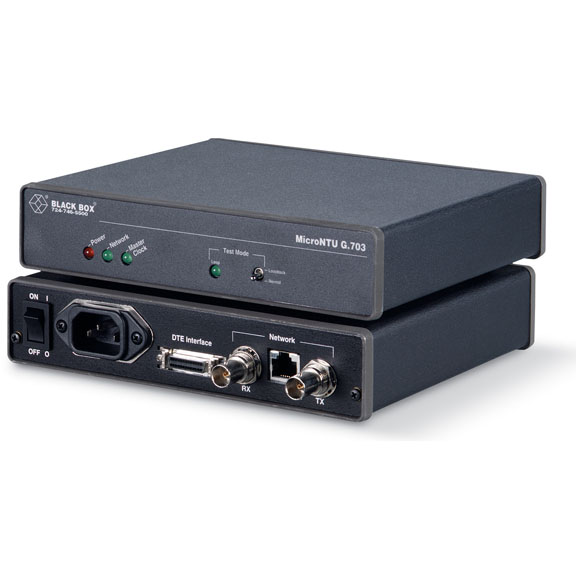

MT240A-R2

Photo may show similar product

Other views

Micro NTU G.703 Standalone, 75-Ohm/120-Ohm

An NTU and an interface converter in one—all you need for G.703 connections.

MT240A-R2


One year Warranty

Product Highlights

  • Connect equipment with RS-530, X.21, or V.35 terminal interfaces to your G.703 networks with this compact NTU.
  • Network data rates to 2.048 Mbps and four selectable terminal rates.
  • Support RS-530 (RS-422/V.36), X.21, or V.35 terminal interfaces.

  • Description

    Micro NTU G.703 Standalone, 75-Ohm/120-Ohm


    Quick Facts

  • Connect equipment with RS-530, X.21, or V.35 terminal interfaces to your G.703 networks with this compact NTU.
  • Network data rates to 2.048 Mbps and four selectable terminal rates.
  • Support RS-530 (RS-422/V.36), X.21, or V.35 terminal interfaces.

  • Further Details

  • MicroRACK card also available.

    The Micro NTU G.703 Standalone is ideal for connecting equipment with RS-530 (RS-422/V.36), X.21, or V.35 terminal interfaces to both 75-ohm (dual-coax) and 120-ohm (twisted-pair) G.703 networks.

    Used as a modem, the Micro NTU sends unstructured, sync 2.048-Mbps data from a G.703/E1 network to a router, bridge, or mux. You can also use the Micro NTU to connect a lower-bandwidth device (256 kbps, 512 kbps, or 1.024 Mbps) to a 2.048-Mbps G.703/E1 link.

    The Micro NTU G.703 also works as an interface converter, accepting 75-ohm (dual-coax) or 120-ohm (twisted-pair) G.703/E1 signals and converting them so your RS-530, X.21, or V.35 equipment can read them. (NOTE: Be sure to order the appropriate optional HD26 Adapter Cable and, if necessary, a G.703 75–120 Adapter.)

    We also offer a Micro NTU Card, which offers the same features of the standalone model except multiplexing and V.35 support, and installs in our MicroRACK. To order the card, see “Related Products.”

    Want just X.21 connectivity? Then see our Micro NTU G.703<–>X.21 Standalone, also under “Related Products.”

    This product works with:
  • HD26 Adapter Cable to DB25 Male (EHN092-530)
  • HD26 Adapter Cable to M/34 Male (EHN092-V35)
  • HD26 Adapter Cable to DB15 Male (EHN092-X21M)
  • G.703 75–120 Adapters (MT1242A-M, MT1242A-F)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for Micro NTU G.703 Standalone, 75-Ohm/120-Ohm:

    Clocking — G.703: Internal, external, network (receive loop)
    Diagnostics — Local Analog Loopback Test via front panel or switch S1–8
    Environment — Operating temperature: 32 to 140º F (0 to 60º C);
    Relative humidity: Up to 95%, noncondensing
    Speed — Network: 2.048 Mbps;
    Terminal: 256 kbps, 512 kbps, 1.024 Mbps, 2.048 Mbps
    CE Approval — Yes
    Interface — Network: G.703;
    Terminal: RS-530 (RS-422/V.36), V.35, X.21 on HD26
    Connectors — (2) BNC F, (1) RJ-45, (1) UD26 F, (1) Power
    Indicators — (4) LEDs: Power, Network, Master Clock, Loopback Test
    Power — 115 VAC/60 Hz or 230 VAC/50 Hz internal switch-selectable
    Size — 1.6"H x 7.3"W x 7"D (4.1 x 18.5 x 17.8 cm)
    Weight — 2 lb. (0.9 kg)
    This product works with:
  • HD26 Adapter Cable to DB25 Male (EHN092-530)
  • HD26 Adapter Cable to M/34 Male (EHN092-V35)
  • HD26 Adapter Cable to DB15 Male (EHN092-X21M)
  • G.703 75–120 Adapters (MT1242A-M, MT1242A-F)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for Micro NTU G.703 Standalone, 75-Ohm/120-Ohm:

    Product Data Sheets

    Application Diagrams


    Connect your Micro NTU G.703 Standalone, 75-Ohm/120-Ohm with:

    Accessory: MT260A-F

    G.703 75–120 Adapters, Female

    G.703 75–120 High-Speed Adapters, 8-Mbps, Female

    Accessory: MT246A

    MicroRACK Micro NTU G.703 Card, 75-Ohm

    MicroRACK Micro NTU G.703 Card, 75-Ohm
