Premises Security > CCTV

click photo to enlarge

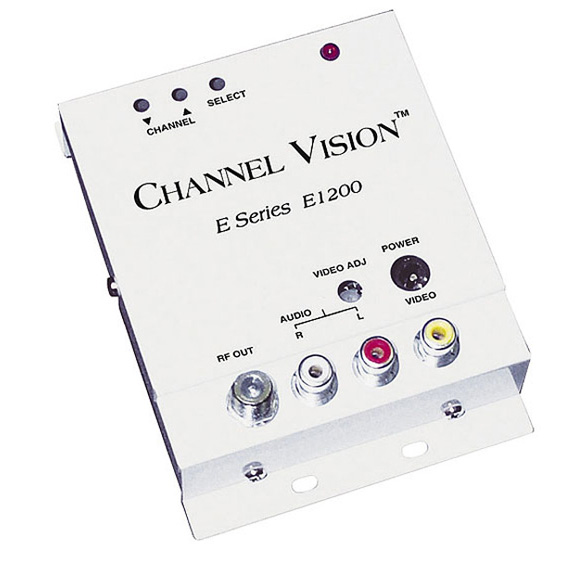

E1200

Photo may show similar product

Other views

Micro Modulator

Connect video signals from surveillance cameras and view them on any TV or monitor.

E1200


Two year Warranty

Product Highlights

  • A built-in video amplifier yields 25-dB mV output, which exceeds the signal needs of most security systems. Video signal level is adjustable.
  • Easily assign the channels via a push-button channel selector.
  • A wide range of available channels includes UHF channels 14–78 and cable channels 65–135 (except for 95–99).

  • Description

    Micro Modulator


    Quick Facts

  • A built-in video amplifier yields 25-dB mV output, which exceeds the signal needs of most security systems. Video signal level is adjustable.
  • Easily assign the channels via a push-button channel selector.
  • A wide range of available channels includes UHF channels 14–78 and cable channels 65–135 (except for 95–99).

  • Further Details

  • UL® approved.
  • Wallmountable unit is small enough to fit anywhere.
  • Digital circuitry for clear picture and sharp sound.
  • Nonvolatile memory, unaffected by voltage fluctuations.
  • Includes (1) attenuator, (1) AC adapter, and (1) user’s manual.


  • If you need a cost-effective way to distribute source video from security cameras or multiplexor units for playback on your CCTV system, the Micro Modulator is what you need! It enables you to assign your video signal to a broad range of standard TV channels: either UHF channels 14–78 or cable channels 65–135 (excluding 95–99). The Micro Modulator can even combine your CCTV signal with commercial signals.

    Channels are easy to set using the recessed push buttons, and digital tuning ensures that you don’t lose signal to frequency drift. Because it contains an electrically erasable programmable read-only memory (EEPROM), you don’t lose channel settings after a power outage.

    The internal video amplifier boosts your output to 25-dB mV, which is more than adequate for most security monitoring systems. And the Micro Modulator features a built-in audio impedance adjustment for true stereo audio loop-through. It relies on all-digital circuitry for clear picture and sharp sound, and it’s UL® approved.

    This modulator is a perfect solution for structured wiring installations. All inputs are on the top of the unit, and with its small size, you can mount it virtually anywhere.


    Technical Specifications for Micro Modulator:

    Audio Offset — 4.5 MHz
    Bandwidth — 5–1000 MHz
    Channels — One (1) Audio 1 VRMS L&R combined mono;
    UHF: 14–78;
    Ultraband: 65–135 (except 95–99)
    Channel Width — 6 MHz
    Environmental — Operating temperature: 32 to 122° F (0 to 50° C)
    Frequency Ranges — UHF: 471.25–855.25 MHz;
    Ultraband: 469.25–859.25 MHz
    Frequency Stability — ± 1 KHz
    RF Output — 25 dBm V maximum
    Sidebands — Double
    Signal-to-Noise Ratio — >52 dB
    Spurious Output Rejection (Non-Harmonic) — Outside carrier: +12 MHz greater than 62 dBC;
    Inside carrier: +12 MHz greater than 55 dBC
    Type — RF Modulator PLL Synthesized Oscillator
    Connectors — Input: (1) RCA female video/audio;
    Output: (1) RF Female
    Power — Input: 120 VAC, 60 Hz;
    Output: 12 VDC, 250 mA
    Size — 7"H x 4.8"W x 1.6"D (17.8 x 12.2 x 4.1 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
