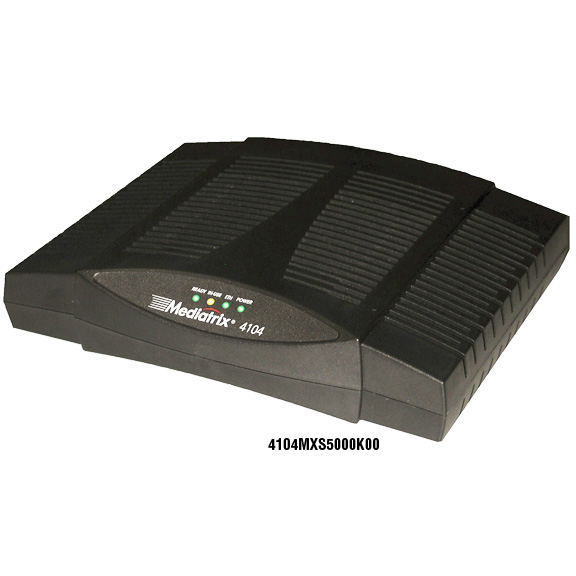

Mediatrix 4100 Series VoIP Access Devices

Link a branch office or multi-tenant bulding to VoIP while keeping your investment in analog phones.


Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Carrier-grade voice quality.
  • Fax over IP support, including T.38.
  • Connect up to 24 analog phones to an IP network.
  • Connects directly to a broadband modem or LAN.
  • Optional PSTN bypass mode enables you to route calls to your analog phone line if the IP network goes down or to make emergency calls.

  • Further Details

  • Manageable through any standard Web browser or SNMP.
  • Support encrypted configuration files.
  • High-compression codecs on analog ports save bandwidth.
  • Compliant to current legacy standards for compatibility with PBX or Key systems.

  • Take advantage of Voice over IP while keeping your existing analog phones and fax machines! The Mediatrix 4100 series VoIP Access device enables you to save money by connecting these analog devices to VoIP across your IP network or the Internet. Its low price and ease of use make it ideal for applications in small offices and branch offices. Or use it for bringing VoIP to multi-tenant buildings.

    It's easy to install—just in plug your phones and fax machines and use your Web browser for setup. Mediatrix can also autoprovision by fetching encrypted configuration information from a TFTP, HTTP, or HTTPS server for a secure and transparent setup.

    Mediatrix 4100 Series VoIP Access Devices provide all basic phone features such as Call Forwarding, Call Transfer, Conference Call, and Call Waiting.

    An optional intelligent PSTN bypass can automatically switch your phone to PSTN analog phone lines when your power goes out, your network connection fails, or when you dial special numbers you specify—911 emergency, for instance.

    Data Features DHCP server; STUN client; QoS Support
    Echo Cancellation G.168
    Protocols IP Telephony: SIP or MGCP;
    Real-Time Transport: RTP/RTCP;
    Network Management: Web-based GUI, SNMPv1, v2, v3 agent (MIB II and private MIB), TFTP, HTTP
    Vocoders G.711 (a-law, µ-law), G.723.1, G.726, G.729a, ab
    Connectors 4104MXS5000K00, 4104MXM5000K00: (1) RJ-45, (4) RJ-11;
    4108MXS5000K00, 4108MXM5000K00: (1) RJ-45, (8) RJ-11;
    4116MXS5000K00, 4116MXM5000K00: (1) RJ-45, (16) RJ-11;
    4124MXS5000K00, 4124MXM5000K00: (1) RJ-45, (24) RJ-11
    Size 1.8"H x 18.9"W x 8.6"D (5.5 x 26 x 17.7 cm)
    Weight 3.9 lb. (1.8 kg)
    Warranty 3 years

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.
