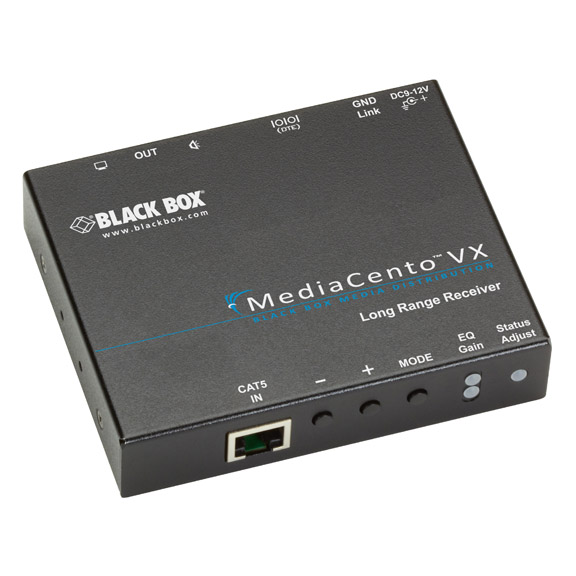

AVX-VGA-TP-LRX

Photo may show similar product

Other views

MediaCento VX Long-Range Receiver

Use to receive VGA video, stereo audio, and serial signals over CATx at distances of 1000 feet (300 m).

AVX-VGA-TP-LRX

Extended Double Diamond™ Warranty Available
(1 Year)

Product Highlights

  • Receives high-quality VGA plus audio and serial signals over ordinary CATx cabling.
  • System features an icon-based GUI for easily managing groups of extender connections.
  • Supports VGA resolutions up to 1920 x 1200 (or 1920 x 1080).

  • Description

    MediaCento VX Long-Range Receiver


    Quick Facts

  • Receives high-quality VGA plus audio and serial signals over ordinary CATx cabling.
  • System features an icon-based GUI for easily managing groups of extender connections.
  • Supports VGA resolutions up to 1920 x 1200 (or 1920 x 1080).

  • Further Details

  • Features advanced skew compensation, sharpness, and brightness controls.
  • Enables independently turning on/off of video and audio ports.
  • 3.5-mm stereo jacks for audio and speaker connections.
  • For serial device extensions, transmits RS-232 (TX/GND) signals.

    Use ordinary copper UTP cable to distribute analog RGB video to a remote room with the MediaCento™ VX system. When receiving signals from a compatible transmitter in the family, this receiver enables VGA video along with stereo audio and serial signals to be distributed up to 1000 feet (300 m).

    Because the transmitter and receiver install directly into an existing non-networked CATx infrastructure, integration is easy. There's no longer the need to pull new VGA cables to distribute video to distant monitors and displays.

    The system supports most common VGA resolutions, including WUXGA (1920 x 1200), Full HD (1920 x 1080), and UXGA (1600 x 1200) video on analog connectors, even at the longer distances.

    What's more, unique equalizer (sharpness), gain (brightness), and RGB skew controls on the receiver make it easy to fine-tune the video image quality over longer CATx cable runs.

    MediaCento VX is great for:
    • Any digital signage application with VGA screens near CATx wallplates.
    • Sending video to distant classroom monitors in schools.
    • Sharing video with older VGA monitors in control rooms.
    • Distributing legacy VGA video across a hospital campus.
    • Extending corporate video to monitors in different rooms.
    • Anywhere you need to quickly manage video output on groups of screens (government buildings, transit stations, malls, and retail stores).

    What's included:
    • Receiver
    • Power supply with 6-ft. (1.8-m) cord
    • Ground cable
    • (4) rubber feet
    • User manual on CD



  • Technical Specifications for MediaCento VX Long-Range Receiver:

    Distance (Maximum) 1000 ft. (300 m)
    MTBF 90,000 hours
    Resolution (Maximum) 1920 x 1200 at maximum distance
    CE Approval Yes
    RoHS Yes
    Connectors Video output: (1) HD15 F (VGA);
    Audio output: (1) 3.5-mm jack (stereo);
    Interconnect: (1) RJ-45;
    Serial output: (1) DB9 M (RS-232 TX/GND signals);
    Power: (1) 2.1-mm barrel jack;
    Ground: (1) ground connector
    User Controls (3) push buttons: (1) for entering/exiting video adjustment mode; (1) to increase video one level; (1) to decrease video one level
    Power External, in-line adapter:
    Input: 100-240 VAC, 50-60 Hz, 0.6 amps (maximum);
    Output: 12 VDC, 1.5 amps (maximum);
    Consumption: 18 watts
    Size 0.9"H x 4.25"W x 3.4"D (2.3 x 10.8 x 8.6 cm)
    Weight 0.7 lb. (0.3 kg)

    This product works with:
    • MediaCento VX Single-Port Transmitter (AVX-VGA-TP-TX)
    • MediaCento VX 4-Port Transmitter (AVX-VGA-TP-TX-4)
    • MediaCento VX 8-Port Transmitter (AVX-VGA-TP-TX-8)
    • MediaCento VX Cascadable Long-Range Receiver (AVX-VGA-TP-CSRX)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for MediaCento VX Long-Range Receiver:

    Manuals

    • MediaCento VX User Manual
      User Manual for the AVX-VGA-TP-TX, AVX-VGA-TP-TX-4, AVX-VGA-TP-TX-8, AVX-VGA-TP-SRX, AVX-VGA-TP-LRX, & AVX-VGA-TP-CSRX (Version 1)
