Video & Multimedia > Extenders

click photo to enlarge

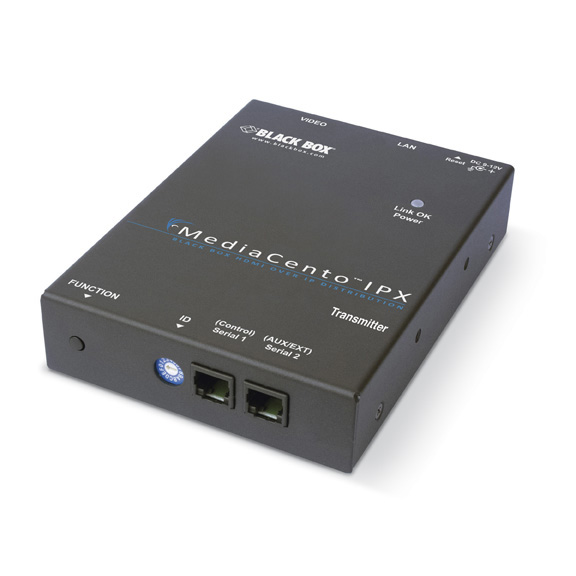

VX-HDMI-IP-UTX

Photo may show similar product

Other views

MediaCento™ IPX Unicast Transmitter

Send HDMI video over an IP network to a distant screen for faster, more efficient HD content distribution.

VX-HDMI-IP-UTX


One year Warranty

Product Highlights

  • A digital solution for the future at an analog price!
  • Transmits HDMI® video and audio over an Ethernet network to a single monitor or display.
  • Uses existing standards-based Ethernet technology and TCP/IP protocols.

  • Description

    MediaCento™ IPX Unicast Transmitter


    Quick Facts

  • A digital solution for the future at an analog price!
  • Transmits HDMI® video and audio over an Ethernet network to a single monitor or display.
  • Uses existing standards-based Ethernet technology and TCP/IP protocols.

  • Further Details

  • Provides very high image quality with visually lossless compression.
  • EDID copy function for optimal PC-to-screen performance.
  • Virtually no distance limitations. Can go as far as your network reaches.
  • Supports serial connections to switch a screen on/off.
  • HDCP compliant and Blu-ray ready.

    This attractively priced IP streaming solution unicasts HDMI® video and audio to a distant screen on your network. Use the MediaCento IPX Unicast system to distribute digital signage content or other HD video and audio across an Ethernet network.

    Because the transmitter and receiver install directly into your existing LAN infrastructure, integration is easy. There’s no need to run expensive dedicated links from a back room to digital signage in lobbies.

    The extender transmits up to 328 feet (100 m) point to point, but goes even longer with network switches added to the mix. You can even use fiber with media converters to go several miles if needed. Its signal is completely digital from end to end, so your digital content is never compromised.

    Lossless compression for HD extension.
    The MediaCento IPX Unicast system packetizes signals so your HD source content can be delivered anywhere you want over Ethernet wiring.

    Featuring visually lossless compression, the MediaCento IPX Unicast units transmit broadcast-quality video and audio, and support Full 1080p resolution no matter what the distance, as well as all common PC resolutions (XGA, SXGA, UXGA, WSXGA) up to 1920 x 1200 at 60 Hz.

    Extremely easy to set up and use.
    The MediaCento IPX Unicast system also supports RS-232 for configuration and control, and for extending bidirectional control signals. Use this serial link to switch a screen on or off.

    There’s no need to configure any IP settings (although more experienced users can do that if needed). Simply use rotary switches to set the transmitter and receiver to the same channel and all IP settings are automatically configured; then just connect your source, your display, and a network switch. It’s ready to go!

    MediaCento IPX Unicast is great for:
    • Any digital signage application with a screen in a different building or store.
    • Distributing high-quality medical imaging video across a hospital campus.
    • Streaming video to classrooms in schools.
    • Sharing video in command and control room setups.
    • Corporate video sharing and training.

    What’s included:
    • (1) MediaCento IPX Unicast Transmitter
    • (1) power supply
    • (1) power cord
    • (4) foot pads
    • (1) CD-ROM with user manual

    Want to multicast video to multiple screens, even video walls?
    For point-to-multipoint IP-based video streaming, see our MediaCento IPX Multicast Transmitter and Receiver (VX-HDMI-IP-MTX, VX-HDMI-IP-MRX). For multicasting video over a network to a video wall, see our MediaCento IPX Multicast Video Wall Transmitter and Receiver (VX-HDMI-IP-VTX, VX-HDMI-IP-VRX).


  • Technical Specifications for MediaCento™ IPX Unicast Transmitter:


    Distance (Maximum) — Point-to-point: 328 ft. (100 m); use an Ethernet switch to go farther distances
    Resolution (Maximum) — Full HD (1920 x 1080); WUXGA (1920 x 1200 at 60 Hz)
    User Controls — (1) 16-position rotary selection dial, (1) reset button, (1) function button
    User Interface — Telnet, RS-232
    CE Approval — Yes
    RoHS — Yes
    Connectors — Video input: (1) HDMI F;
    Interconnect/LAN: (1) RJ-45 (10/100/1000 Mbps);
    Serial control: (2) RJ-12 6P6C (RS-232)
    Indicators — (1) LED for power/connection status, (1) LED for network activity
    Power — Input: 100–240 VAC, 50–60 Hz;
    Output: 9–12 VDC, 1.5 amps;
    Consumption: 13.5 watts
    Size — 1"H x 3.8"W x 5.1"D (2.5 x 9.6 x 13 cm)
    Weight — 1.1 lb. (0.5 kg)


    This product works with:
    • MediaCento IPX Unicast Receiver (VX-HDMI-IP-URX)
    • VESA/Wallmount Kit for MediaCento IPX (VX-HDMI-IP-VESA)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for MediaCento™ IPX Unicast Transmitter:

    Manuals

    • MediaCento%X99 IPX User Manual
      User Manual for the VX-HDMI-IP-MTX, VX-HDMI-IP-UTX, VX-HDMI-IP-VTX, VX-HDMI-IP-MRX, VX-HDMI-IP-URX, and VX-HDMI-IP-VRX (Version 2)

    Videos


    Connect your MediaCento™ IPX Unicast Transmitter with:

    Accessory: VX-HDMI-IP-URX

    MediaCento™ IPX Unicast Receiver

    MediaCento™ IPX Unicast Receiver

    Accessory: LGB616A

    Gigabit Web Smart Switch, 16-Port

    Gigabit Web Smart Switch, 16-Port
