Video & Multimedia > Extenders

click photo to enlarge

VX-HDMI-IP-MTX

Photo may show similar product

Other views

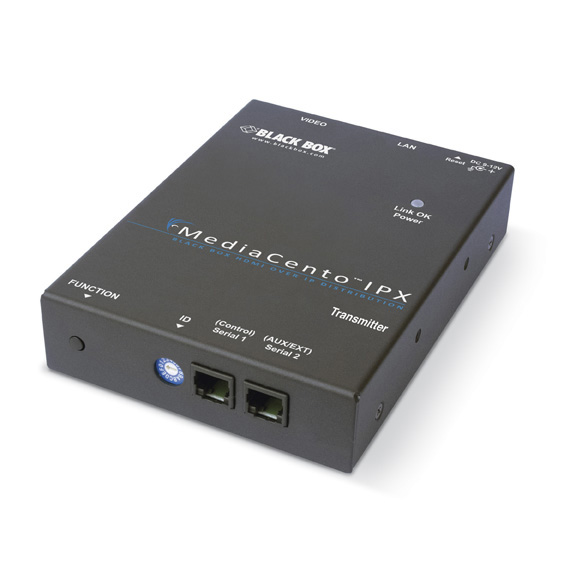

MediaCento™ IPX Multicast Transmitter

Multicast HDMI video over an IP network to up to 250 distant screens for faster, more efficient HD content distribution.

VX-HDMI-IP-MTX

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • A digital solution for the future at an analog price!
  • Transmits HDMI® video and audio over an Ethernet network to up to 250 screens.
  • Uses existing standards-based Ethernet technology and TCP/IP protocols.

  • Description

    MediaCento™ IPX Multicast Transmitter


    Quick Facts

  • A digital solution for the future at an analog price!
  • Transmits HDMI® video and audio over an Ethernet network to up to 250 screens.
  • Uses existing standards-based Ethernet technology and TCP/IP protocols.

  • Further Details

  • Provides very high image quality with visually lossless compression.
  • A single transmitter can deliver multimedia to hundreds of displays.
  • EDID copy function for optimal PC-to-screen performance.
  • Virtually no distance limitations. Can go as far as your network reaches.
  • Supports serial connections to switch screens on/off.
  • HDCP compliant and Blu-ray ready.

    This attractively priced IP streaming solution multicasts HDMI® video and audio to up to 250 screens on a network. You need just one transmitter and up to 250 receivers.

    MediaCento IPX Multicast is ideal for distributing digital signage content or other HD video and audio across an Ethernet network. Because the transmitter and receivers install directly into your existing LAN infrastructure, integration is easy. There’s no need to run expensive dedicated links from a back room to digital signage in lobbies.

    The extender transmits up to 328 feet (100 m) per link, but goes even longer when additional network switches are added to the mix. You can even use fiber with media converters to go several miles if needed. Its signal is completely digital from end to end, so your digital content is never compromised.

    Lossless compression for HD extension.
    MediaCento IPX Multicast features IGMP support and packetizes signals so all your HD source content can be delivered anywhere you want over Ethernet wiring.

    It works in point-to-point or point-to-multipoint configurations. Just plug in as many receivers as you need at your remote screens. From one transmitter, you can have 16 different multicast groups to multiple receivers in multicast mode.

    Featuring visually lossless compression, the MediaCento IPX Multicast units transmit broadcast-quality video and audio, and support Full 1080p resolution no matter what the distance or the number of screens, as well as all common PC resolutions (XGA, SXGA, UXGA, WSXGA) up to 1920 x 1200 at 60 Hz.

    Extremely easy to set up and use.
    MediaCento IPX Multicast also supports RS-232 for configuration and control, and for extending bidirectional control signals. Use this serial link to switch screens on or off.

    There’s no need to configure any IP settings (although more experienced users can do that if needed). Simply use rotary switches to set the transmitter and receivers to the same multicast channel and all IP multicasting settings are automatically configured; then just connect your source, your display(s), and a network switch. It’s ready to go!

    MediaCento IPX Multicast is great for:
    • Any digital signage application with screens in different buildings or stores.
    • Distributing high-quality medical imaging video across a hospital campus.
    • Streaming video to classrooms in schools.
    • Multicasting video in command and control room setups.
    • Corporate video sharing and training.

    NOTE: For the best performance, use with a Layer 2 or 3 switch with IGMP support. For details, contact Black Box Tech Support. For a selection of switches, see our Networking section.

    What’s included:
    • (1) MediaCento IPX Multicast Transmitter
    • (1) power supply
    • (1) power cord
    • (4) foot pads
    • (1) CD-ROM with user manual

    Want to multicast video to screens in a video wall setup?
    See our MediaCento IPX Multicast Video Wall Transmitter (VX-HDMI-IP-VTX) and Receiver (VX-HDMI-IP-VRX). And for point-to-point IP-based video streaming, we also offer a unicast transmitter and receiver (VX-HDMI-IP-UTX, VX-HDMI-IP-URX).


  • Technical Specifications for MediaCento™ IPX Multicast Transmitter:

    Distance (Maximum) — Point-to-point: 328 ft. (100 m); use an Ethernet switch to go farther distances
    Resolution (Maximum) — Full HD (1920 x 1080); WUXGA (1920 x 1200 at 60 Hz)
    User Controls — (1) 16-position rotary selection dial, (1) reset button, (1) function button
    User Interface — Web interface, Telnet, RS-232
    CE Approval — Yes
    RoHS — Yes
    Connectors — Video input: (1) HDMI F;
    Interconnect/LAN: (1) RJ-45 (10/100/1000 Mbps);
    Serial control: (2) RJ-12 6P6C (RS-232)
    Indicators — (1) LED for power/connection status, (1) LED for network activity
    Power — Input: 100–240 VAC, 50–60 Hz;
    Output: 9–12 VDC, 1.5 amps;
    Consumption: 13.5 watts
    Size — 1"H x 3.8"W x 5.1"D (2.5 x 9.6 x 13 cm)
    Weight — 1.1 lb. (0.5 kg)


    This product works with:
    • MediaCento IPX Multicast Receiver (VX-HDMI-IP-MRX)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for MediaCento™ IPX Multicast Transmitter:

    Manuals

    • MediaCento%X99 IPX User Manual
      User Manual for the VX-HDMI-IP-MTX, VX-HDMI-IP-UTX, VX-HDMI-IP-VTX, VX-HDMI-IP-MRX, VX-HDMI-IP-URX, and VX-HDMI-IP-VRX (Version 2)

    Product Data Sheets

    Videos
