Infrastructure Hardware > Cable Management

click photo to enlarge

JPT800

Photo may show similar product

Other views

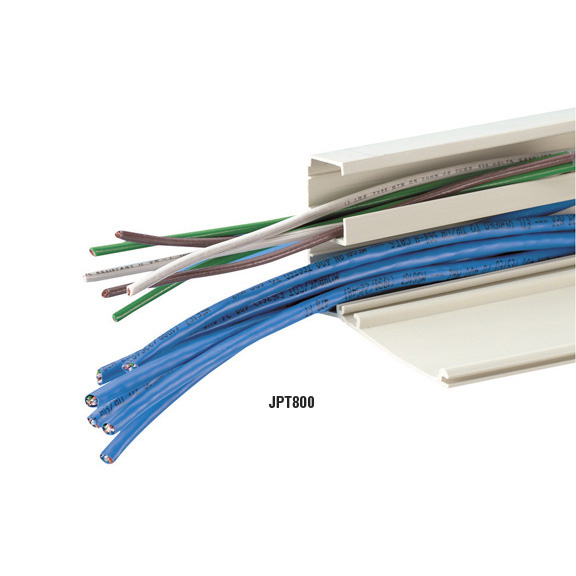

Media Track 8 Base and Cover, without Adhesive

Separate data cable from power cable in your raceway installations.

JPT800


Lifetime Warranty

Product Highlights

  • Dual channels separate data cables from power cables.
  • Single-piece, double-latching raceways provide fast and easy installation, as well as tamper resistance.
  • Guaranteed for life!

  • Description

    Media Track 8, Base and Cover without Adhesive, 10 per Box, 2.12"W x 1.04"D, 7-ft. (2.1-m) Length


    Quick Facts

  • Dual channels separate data cables from power cables.
  • Single-piece, double-latching raceways provide fast and easy installation, as well as tamper resistance.
  • Guaranteed for life!

  • Further Details

  • Nonmetallic, so they’re lightweight and nonconductive.
  • Compliant with CAT6, CAT5e, and CAT5 copper cables, as well as video, voice, and fiber cables.
  • Accepts common electrical wiring. Rated for use up to 600 volts.
  • Meets fiber bend requirements.
  • Full range of single- and dual-gang surface-mount boxes available.
  • Neutral office-white color blends with any decor.
  • Raceways available with double-sided adhesive tape.
  • UL® Listed, CSA certified.

  • Do you have an office with cinder block or plaster walls? Want to install new cable, but don’t want to break into the walls? Avoid the mess and expense with our Media Track 8 cable raceway. This secure, easy-to-install cabling system enables you to run cable without breaking into the walls. It features two channels, so you can separate cable types and run data and power cables in the same raceway. It’s UL® rated for up to 600 volts.

    Easy to install.
    Media Track 8 is lightweight and easy to cut. It features a unique, one-piece design. The cover is actually attached to the base with a soft hinge.

    Inch marks on the base make the raceway easy to position. Locator tabs simplify alignment to fittings, and center grooves keep screws aligned. The soft hinge provides quick access for drills when mounting. Even the screws you need are included! Choose from raceways with or without adhesive backing.

    Difficult to tamper with.
    When you snap the raceway shut, it double latches to provide a snug, tamper-resistant fit.

    Adaptable to any cable.
    The corner fittings (sold separately)—with a 1.25" (3.2-cm) minimum bend radius—are ideal for all commonly used cables, including UTP, video, voice, fiber optic, and electrical cable. They snap on easily for a clean look, and the office white color blends in with most office environments.

    Fit every application.
    All communications and surface-mount boxes (sold separately) feature knockouts to fit different conduit sizes. The Double-Gang Communications Box and Divided Box give you a combination of communications and power connections. If you need boxes with side openings or for a low-clearance environment, see our Surface-Mount Housings.

    Build your own Media Track.
    We offer all the components you need to join Media Track systems. Because they’re also office white, they help you maintain a professional appearance in your raceway installation.

    Complete your Media Track with components including End Caps, Splice Covers, Security Straps, and more. To join two raceways in the corner of a room without jeopardizing the required bend radius of the cable within a connected run, order a Media Track Elbow. Need to join a vertical raceway with a horizontal one that’s overhead? Then order a Conduit/Ceiling Fitting.


    Technical Specifications for Media Track 8 Base and Cover, without Adhesive:



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Media Track 8 Base and Cover, without Adhesive:

    Application Diagrams


    Connect your Media Track 8 Base and Cover, without Adhesive with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Lifetime warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    Media Track 8 Base and Cover, without Adhesive JPT800 $259.95

    Media Track 8 Base and Cover, with Adhesive JPT805-ADH $280.95
