Infrastructure Hardware > Cable Management

click photo to enlarge

JPT705-ADH

Photo may show similar product

Other views

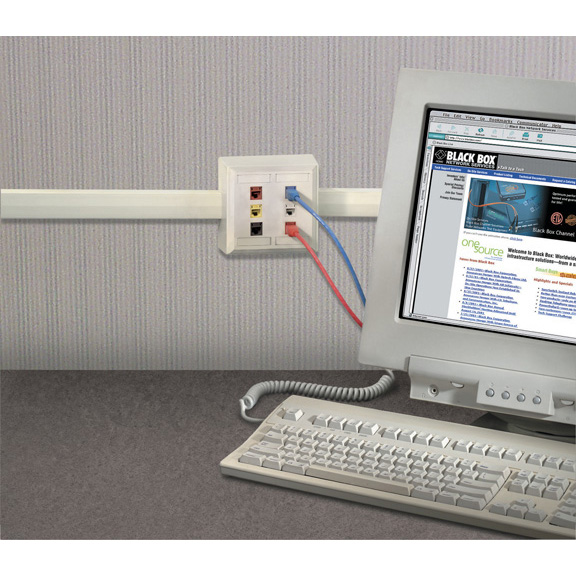

Media Track 7 Base and Cover, with Adhesive

A larger single-channel raceway ready for UTP, fiber optic, voice, video, and electrical cables.

JPT705-ADH


Lifetime Warranty

Product Highlights

  • Accommodates 11 cables.
  • Perfect for data, voice, video, and CATV applications.
  • Single-piece, double-latching raceway provides fast and easy installation, as well as tamper resistance.
  • Guaranteed for life!

  • Description

    Media Track 7, Base and Cover with Adhesive, 10 per Box, 1.04"H x 1.38" W (Closed), 7-ft. (2.1-m) Length


    Quick Facts

  • Accommodates 11 cables.
  • Perfect for data, voice, video, and CATV applications.
  • Single-piece, double-latching raceway provides fast and easy installation, as well as tamper resistance.
  • Guaranteed for life!

  • Further Details

  • Meets cable bend requirements for CAT6, CAT5e, CAT5, and fiber optic cable.
  • Accepts common electrical wiring. Rated for use up to 600 volts.
  • Nonmetallic, so they’re lightweight and nonconductive.
  • Neutral office-white color blends in with any decor.
  • Raceways and boxes also available with adhesive strips.
  • Single- and double-gang boxes available.
  • UL® listed, CSA certified.

  • Simplify your cable delivery and provide security for your premise wiring with the Media Track 7 from Black Box.

    This single-channel raceway consists of a one-piece base and double-latching cover. It’s the perfect solution when you need to run cable along walls and ceilings. You don’t have to tear up your walls—even cinder block walls are no longer a problem! Use Media Track 7 to run your data, voice, fiber, video, even power cables.

    Easy to install.

    Mounting cables is easy. Media Track 7’s hinged cover doesn’t get in the way. In addition, inch marks enable you to locate fastening points quickly, locator tabs simplify alignment to fittings, and center grooves keep screws from being misaligned.

    Difficult to tamper with.
    When you snap the raceway shut, it double latches to provide a snug, tamper-resistant fit.

    Designed to be durable.
    If you perform moves, adds, and changes frequently, Media Track 7 has the durability to take excessive use other systems can’t handle. It even withstands up to 300 pounds (136.1 kg) of crush force plus impacts. That’s tough! And because Media Track 7 is constructed of nonmetallic, nonconductive, UV-stablized PVC, it doesn’t scratch, chip, dent, or rust.

    Adaptable to any cable.
    Media Track 7 complies fully with the cable bend requirements of CAT5, CAT5e, CAT6, and fiber optic cables. It has an integral 1.25" minimum bend radius in all corner fittings with bases. A variety of single- and double-gang surface-mount boxes provide connections to phones, computers, printers, scanners, and other equipment.

    Flexibility for the future.
    Choose your Media Track 7 raceway with or without adhesive strips. Both versions are easy to assemble and mount, and they provide extra space for future additions. Media Track 7 blends into any environment and will meet your cable routing needs for today—and tomorrow.

    Fit every application.
    All communications and surface-mount boxes (sold separately) feature knockouts to fit different conduit sizes. The Double-Gang Communications Box and Divided Box give you a combination of communications and power connections. If you need boxes with side openings or for a low-clearance environment, see our Surface-Mount Housings.

    Build your own Media Track.
    We offer all the components you need to build a Media Track system. Because they’re also office white, they help you maintain a professional appearance in your raceway installation.

    Complete your Media Track with components including End Caps, Splice Covers, Security Straps, and more. To join two raceways in the corner of a room without jeopardizing the required bend radius of the cable within a connected run, order a Media Track Elbow. Need to join a vertical raceway with a horizontal one that’s overhead? Then order a Conduit/Ceiling Fitting.


    Technical Specifications for Media Track 7 Base and Cover, with Adhesive:



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Media Track 7 Base and Cover, with Adhesive:

    Application Diagrams


    Connect your Media Track 7 Base and Cover, with Adhesive with:

    Accessory: JPT805-ADH

    Media Track 8 Base and Cover, with Adhesive

    Media Track 8, Base and Cover with Adhesive, 10 per Box, 2.12"W x 1.04"D (Closed), 7-ft. (2.1-m) Length

    Accessory: JPB652D

    Surface-Mount Box, Deep Profile, Single-Gang, 4.9"H x 3.25"W x 2.4"D

    Surface-Mount Box, Deep Profile, Single-Gang, 4.9"H x 3.25"W x 2.4"D

    Accessory: WP272-R4

    Surface-Mount Housing, 2-Port, Office White

    Surface-Mount Housing, 2-Port, Office White

    Accessory: JPT605-ADH

    Media Track 6 Base and Cover, with Adhesive

    Media Track 6, Base and Cover with Adhesive, 10 per Box, 0.77"H x 0.84"W x 0.37"D (Closed), 7-ft. (2.1-m) Length

    Accessory: WP274-R2

    Flush-Mount Adapter, Single-Gang

    Flush-Mount Adapter, Single-Gang

    Accessory: JPT606

    Media Track 6 and 7 Conduit/Ceiling Fitting, 3.9"H x 2.21"W x 3.31"D

    Media Track 6 and 7 Conduit/Ceiling Fitting, 3.9"H x 2.21"W x 3.31"D

    Accessory: JPT721

    Media Track 7 Flat Elbow, Base and Cover

    Media Track 7 Components, Flat Elbow, Base and Cover

    Accessory: JPT745

    Media Track 7 Splice Cover, 5 per Box, 1.55"H x 1.11"W x 1.12"D

    Media Track 7 Components, Splice Cover, 5 per Box, 1.55"H x 1.11"W x 1.12"D

    Accessory: JPT726

    Media Track 7 Internal Elbow, Base and Cover

    Media Track 7 Components, Internal Elbow, Base and Cover

    Accessory: JPT716

    Media Track 7 External Elbow, Base and Cover

    Media Track 7 Components, External Elbow, Base and Cover

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Lifetime warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    Media Track 7 Base and Cover, with Adhesive JPT705-ADH $234.95

    Media Track 7 Base and Cover, without Adhesive JPT700 $182.95
