Media Track 6 Base and Cover, with Adhesive

The nonmetallic, single-channel surface raceway ready for UTP, fiber optic, and electrical cables.

JPT605-ADH

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Works with data, voice, and electrical cables.
  • Single-piece, double-latching raceways provide fast and easy installation, as well as tamper resistance.
  • Nonmetallic, so it's lightweight and nonconductive.
  • Available with double-sided adhesive tape.
  • Guaranteed for life!


  • Description

    Media Track 6, Base and Cover with Adhesive, 10 per Box, 0.77"H x 0.84"W x 0.37"D (Closed), 7-ft. (2.1-m) Length


    Quick Facts

  • Works with data, voice, and electrical cables.
  • Single-piece, double-latching raceways provide fast and easy installation, as well as tamper resistance.
  • Nonmetallic, so it's lightweight and nonconductive.
  • Available with double-sided adhesive tape.
  • Guaranteed for life!

  • Further Details

  • Compliant with CAT6, CAT5e, and CAT5 copper cables, as well as video, voice, and fiber cables.
  • Accept common electrical wiring. Rated for use up to 600 volts.
  • Meet fiber bend requirements.
  • UL® Listed, CSA certified.
  • Full range of single- and dual-gang surface-mount boxes available.


  • Do you have an office with cinder block or plaster walls? Want to install new cable, but don't want to break into the walls? Avoid the mess and expense with the single-channel Media Track 6 cable raceway. This secure, easy-to-install one-track cabling system enables you to run cable without breaking into the walls.

    Because many data stations are now being specified with multiple data outlets, this modular cable raceway accommodates multiple data cables, as well as electrical cables. Plus, it's UL® rated for up to 600 volts.

    Easy to install.
    Media Track 6 is lightweight and easy to cut. It features a unique, one-piece design. The cover is actually attached to the base with a soft hinge.

    Inch marks on the base make the raceway easy to position. Locator tabs simplify alignment to fittings, and center grooves keep screws aligned. The soft hinge provides quick access for drills when mounting. Even the screws you need are included! Choose from raceways with or without adhesive backing.

    Difficult to tamper with.
    When you snap the raceway shut, it double latches to provide a snug, tamper-resistant fit.

    Adaptable to any cable.
    The corner fittings (sold separately)—with a 1.25" (3.2-cm) minimum bend radius—are ideal for all commonly used cables, including UTP, video, voice, fiber optic, and electrical cable. They snap on easily for a clean look, and the office white color blends in with most office environments.

    Fit every application.
    All communications and surface-mount boxes (sold separately) feature knockouts to fit different conduit sizes. The Double-Gang Communications Box and Divided Box give you a combination of communications and power connections. If you need boxes with side openings or for a low-clearance environment, see our Surface-Mount Housings.

    Build your own Media Track.
    We offer all the components you need to join Media Track systems. Because they're also office white, they help you maintain a professional appearance in your raceway installation.

    Complete your Media Track 6 with components including End Caps, Splice Covers, Security Straps, and more. To join two raceways in the corner of a room without jeopardizing the required bend radius of the cable within a connected run, order a Media Track Elbow. Need to join a vertical raceway with a horizontal one that's overhead? Then order a Conduit/Ceiling Fitting.


    Technical Specifications for Media Track 6 Base and Cover, with Adhesive:



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Media Track 6 Base and Cover, with Adhesive:

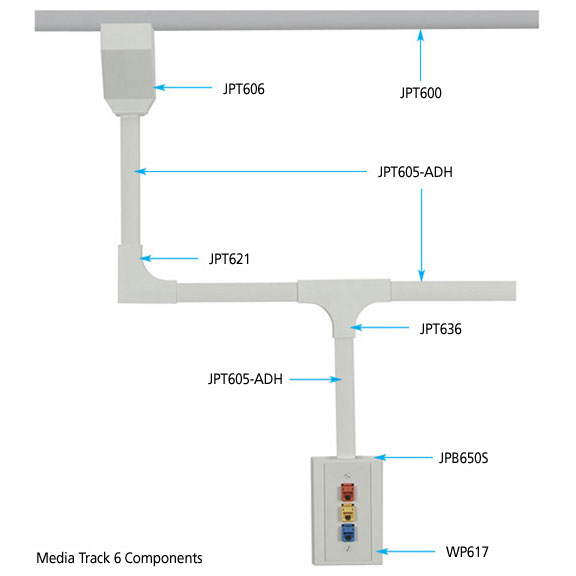

    Application Diagrams


    Connect your Media Track 6 Base and Cover, with Adhesive with:

    Accessory: JPB652D

    Surface-Mount Box, Deep Profile, Single-Gang, 4.9"H x 3.25"W x 2.4"D

    Surface-Mount Box, Deep Profile, Single-Gang, 4.9"H x 3.25"W x 2.4"D

    Accessory: JPT606

    Media Track 6 and 7 Conduit/Ceiling Fitting, 3.9"H x 2.21"W x 3.31"D

    Media Track 6 and 7 Conduit/Ceiling Fitting, 3.9"H x 2.21"W x 3.31"D

    Accessory: JPT616

    Media Track External Elbow, Base and Cover

    Media Track 6 External Elbow Base and Cover

    Accessory: JPT636

    Media Track 6 Tee, Base and Cover

    Media Track 6 Tee Base and Cover

    Accessory: JPT637

    Media Track 6 Security Strap, 1.94"H x 0.86"W x 0.62"D

    Media Track 6 Security Strap, 5 Per Box, 1.94"H x 0.86"W x 0.62"D

    Accessory: JPT805-ADH

    Media Track 8 Base and Cover, with Adhesive

    Media Track 8, Base and Cover with Adhesive, 10 per Box, 2.12"W x 1.04"D (Closed), 7-ft. (2.1-m) Length

    Accessory: WP272-R4

    Surface-Mount Housing, 2-Port, Office White

    Surface-Mount Housing, 2-Port, Office White

    Accessory: WP274-R2

    Flush-Mount Adapter, Single-Gang

    Flush-Mount Adapter, Single-Gang

    Accessory: WP610

    Media Track Wallplate, Single-Gang, Blank

    Media Track Wallplate, Single-Gang, Blank
