Infrastructure Hardware > Cable Management

click photo to enlarge

JPT905

Photo may show similar product

Other views

Media Track 10 Base and Cover, 1.8"H x 6.7"W (Closed), 5-ft. (1.5-m) Length

Run data, voice, and power lines all in one triple-channel raceway.

JPT905


Lifetime Warranty

Product Highlights

  • Three-channel design separates power, voice, and data cables.
  • Compliant with CAT6, CAT5e, and CAT5 copper cables, as well as video, voice, and fiber cables.
  • Nonmetallic, so they’re lightweight and nonconductive.
  • Guaranteed for life!

  • Description

    Media Track 10, Base and Cover, 10 per Box, 1.8"H x 6.7"W (Closed), 5-ft. (1.5-m) Length


    Quick Facts

  • Three-channel design separates power, voice, and data cables.
  • Compliant with CAT6, CAT5e, and CAT5 copper cables, as well as video, voice, and fiber cables.
  • Nonmetallic, so they’re lightweight and nonconductive.
  • Guaranteed for life!

  • Further Details

  • Meet fiber bend requirements.
  • Accept common electrical wiring. Rated for use up to 600 volts.
  • Neutral office-white color blends in with any decor.
  • UL® Listed, CSA certified.
  • Full range of single- and dual-gang surface-mount boxes available.


  • Here’s great news if you’re installing a new cabling system, especially if your office has cinder block walls: You don’t have to tear up the walls to run your new cabling! Run cable along the walls and ceiling with Media Track 10.

    The top of the line
    With three separate channels and a sleek, tamper-resistant design, Media Track 10 is our best Media Track system. It gives you more capacity, longer lengths, and more versatility! It’s ideal for setting up multimedia systems that you can use for years.

    The Media Track 10 features three channels for running large bundles of cable. Use one for your copper CAT6, CAT5e, and video cable. Use the second channel for your fiber cable runs. Use the third channel for your power cables. In a cross-section, the three channels together provide 10.6 square inches of area. That’s a lot of room for running cable!

    Easy to install
    The Media Track 10 is extremely lightweight, making it easier to handle and cut. The office-white color blends into any decor. It’s tough, too—it won’t scratch, dent, chip, or rust because of its nonmetallic, nonconductive, UV-stabilized PVC construction.

    For installation, the 16" center marks make positioning easy. Locator tabs simplify alignment to fittings. Center grooves keep screws from being misaligned.

    The right choice for multimedia applications

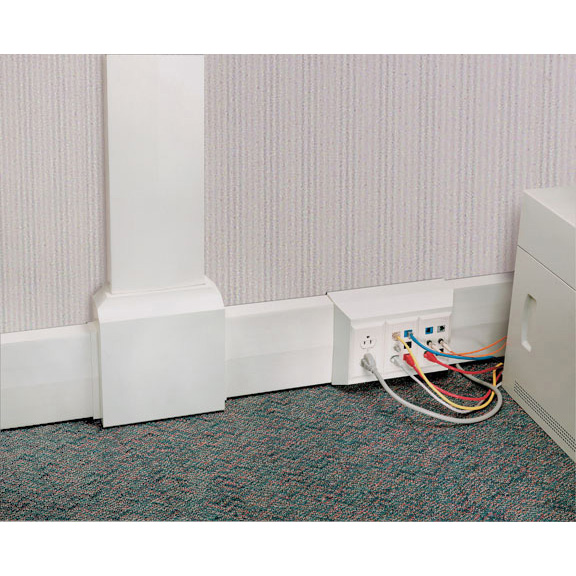

    The Media Track 10 is designed for use with copper and fiber data cables, voice cables, and power cables. The corner fittings, with a 1.25" radius, comply with the bend requirements for both copper and fiber cable. For a smooth, flush appearance, choose the Triple-Gang Inline Box, which mounts vertically. For traditional outlets, use our Full-Capacity Boxes, as shown in the photo.


    Technical Specifications for Media Track 10 Base and Cover, 1.8"H x 6.7"W (Closed), 5-ft. (1.5-m) Length:



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Media Track 10 Base and Cover, 1.8"H x 6.7"W (Closed), 5-ft. (1.5-m) Length:


    Connect your Media Track 10 Base and Cover, 1.8"H x 6.7"W (Closed), 5-ft. (1.5-m) Length with:

    Accessory: JPT805-ADH

    Media Track 8 Base and Cover, with Adhesive

    Media Track 8, Base and Cover with Adhesive, 10 per Box, 2.12"W x 1.04"D (Closed), 7-ft. (2.1-m) Length

    Accessory: JPT605-ADH

    Media Track 6 Base and Cover, with Adhesive

    Media Track 6, Base and Cover with Adhesive, 10 per Box, 0.77"H x 0.84"W x 0.37"D (Closed), 7-ft. (2.1-m) Length

    Accessory: JPT705-ADH

    Media Track 7 Base and Cover, with Adhesive

    Media Track 7, Base and Cover with Adhesive, 10 per Box, 1.04"H x 1.38" W (Closed), 7-ft. (2.1-m) Length

    Accessory: JPT945

    Media Track 10 Splice Cover, 5 per Box, 1.56"H x 6.95"W x 2.03"D

    Media Track 10 Components, Splice Cover, 5 per Box, 1.56"H x 6.95"W x 2.03"D

    Accessory: JPT937

    Media Track 10 Security Strap, 5 per Box, 0.19" Mounting Hole, 2.08"H x 1.5"W x 8.24"D

    Media Track 10 Components, Security Strap,5 per Box, 0.19" Mounting Hole, 2.08"H x 1.5"W x 8.24"D

    Accessory: WP610

    Media Track Wallplates, Blank

    Media Track Wallplates, Single-Gang, Blank

    Accessory: JPT910

    Media Track 10 End Cap, 1.5"H x 6.88"W x 2.06"D

    Media Track 10 Components, End Cap, 1.5"H x 6.88"W x 2.06"D

    Accessory: JPT921

    Media Track 10 Flat Elbow, Base and Cover, 9.85"H x 9.85"W x 2.08"D

    Media Track 10 Components, Flat Elbow, Base and Cover,9.85"H x 9.85"W x 2.08"D

    Accessory: JPT906

    Media Track 10 Conduit/Ceiling Fitting, 0.5–2"H Knockouts, 6.93"H x 4.32"W x 6.296"D

    Media Track 10 Components, Conduit/Ceiling Fitting, 0.5–2"H Knockouts, 6.93"H x 4.32"W x 6.296"D
