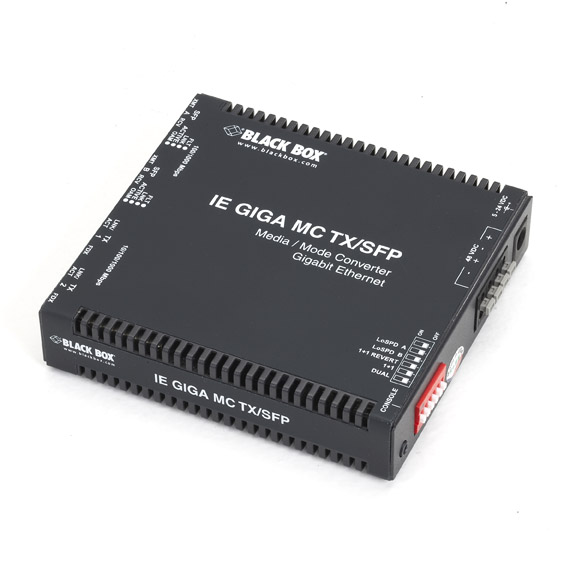

LGC340A

Photo may show similar product

Other views

Media Converter Network Interface Device, (2) 10-/100-/1000-Mbps Copper to (2) SFP Copper/Fiber

Use multiple ways.includes multiple power options and is hardened for industrial and Telco environments.

LGC340A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Functions as a switch, a media converter, and a mode converter.
  • Features two 10-/100-/1000-Mbps copper Ethernet ports plus two 100-/1000-Mbps SFP ports.


  • Description

    Media Converter Network Interface Device, (2) 10-/100-/1000-Mbps Copper to (2) SFP Copper/Fiber


    Quick Facts

  • Functions as a switch, a media converter, and a mode converter.
  • Features two 10-/100-/1000-Mbps copper Ethernet ports plus two 100-/1000-Mbps SFP ports.

  • Further Details

  • Use as a switch, a media converter, and a mode converter.
  • If a link goes down, 1+1 uplink protection provides failover in under 50 milliseconds.
  • Powered through AC, DC, or USB.
  • Extended temperature range of -4 to +158° F (-20 to +70° C).
  • Supports 155-Mbps and 1250-Mbps SFPs.
  • Jumbo frame support up to 10,240 bytes.
  • DIN rail mount (sold separately).


  • Use multiple ways.
    The Media Converter Network Interface Device, (2) 10-/100-/1000-Mbps Copper to (2) SFP is a carrier-class DIN rail switch that has the versatility to handle many applications at the edge of your network. Two autosensing 10-/100/1000-Mbps ports plus two autosensing 100-/1000-Mbps SFP slots in an intelligent switch enable you to use the Media Converter Network Interface Device for managed fiber termination, fiber drop and insert, fiber repeater, fiber mode conversion, and dual independent copper-to-fiber media conversion with automatic failover.

    Copper and/or fiber switch.
    You can use the Device as a copper/fiber or all copper switch. The versatility is in the SFP slots. As a copper/fiber switch, you can have two 10-/100-/1000-Mbps copper ports and two autosensing 100-/1000-Mbps fiber SFP ports. But the SFPs also support 10-/100-10000-Mbps copper operation. So if you insert two copper SFPs, you will have an entirely copper switch. Talk about versatility.

    Double-duty media conversion.
    For more application diversity, the device gives you media conversion flexibility for distance extension. You can install it as a dual copper/fiber media converter then use it as two independent converters, saving a bundle in equipment costs. Double-duty mode conversion with redundant 1+1 protection.
    You can deploy this Device as a 4-port device with fiber redundancy. And it gives you two different mode conversions to choose from: 1+1 Non-Revertive and 1+1 Revertive. Both relate to how the box responds if a primary link fails. In Non-Revertive mode, the box will continue to use the backup fiber link after the failure on the primary link has been fixed. In Revertive mode, the box will revert to the primary link.

    The SFP slots auto detect 100- or 1000-Mbps SFPs and comply with SFP Multi-Source Agreements standards (MSA) for complete compatibility with all standard SFPs.

    Hardened for the edge of your network.
    It's designed for industrial use, featuring an extended temperature range of -4 to +158° F (-20 to +70° C) plus power options for AC, DC, and USB power. DC power options include -48 VDC for telco applications. You can combine power options for AC/DC redundancy.

    Fully manageable.
    The switch is fully manageable and supports active and passive IEEE 802.3ah OAM on all ports, as well as DHCP and SNMP. The switch can also be managed through the RS-232 console port via command line interface (CLI).

    The switch has a mini-serial console management port that is accessed via the included mini-jack to DB9F cable.


    DIN mounting requires the DIN Rail Clip (LXC-DR) (sold separately).


    Technical Specifications for Media Converter Network Interface Device, (2) 10-/100-/1000-Mbps Copper to (2) SFP Copper/Fiber:

    Approvals CE; RoHS; FCC Class A using 48V telco-type power, Class B using all other power options; UL/cUL: Yes, power supply E
    Auto Negotiation Auto negotiation, auto-cross for MDI/MDIX
    Connectors (2) 10/100/1000 RJ-45; (2) 100/100 SFP fiber/10/100/1000 copper SFP (sold separately); (1) RS-232 RJ-45; (1) 2.5-mm mini-serial console management
    Environmental Operating temperature: -4 to +158° F (-20 to +70° C);
    Storage temperature: -40 to +185° F (-40 to +85° C);
    Humidity: 5 to 95% non-condensing
    Indicators Diagnostic LEDs
    Power 120-24-VAC from external power supply (MDR-10-24, sold separately);
    7-50 VDC (terminal block);
    USB with USB Power Adapter Cable (LHC021A)
    Standards IEEE 802.3i (10BASE-T); IEEE 802.3u (100BASE-TX, 1000BASE-T, 100BASE-FX, 1000BASE-X)
    Dimensions 3.5"H x 0.9"W x 3.9"D (9 x 2.3 x 10 cm)
    Weight 1 lb. (0.45 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Media Converter Network Interface Device, (2) 10-/100-/1000-Mbps Copper to (2) SFP Copper/Fiber:

    Manuals

    • Media Converter Network Interface Device Manual
      Manual for LGC340A (Version 1)

    Black Box Explains


    Connect your Media Converter Network Interface Device, (2) 10-/100-/1000-Mbps Copper to (2) SFP Copper/Fiber with:

    Accessory: LXC-DR

    DIN Rail Clip for MultiPower Miniature and Industrial MultiPower Media Converters

    DIN Rail Clip for MultiPower Miniature and Industrial MultiPower Media Converters

    Accessory: MDR-10-24

    DIN Rail Power Supply, 10 Watts, 24 VDC

    DIN Rail Power Supply, 10 Watts, 24 VDC

    Accessory: LHC021A

    Miniature Media Converter and Industrial Multipower Media Converter USB Power Adapter Cable

    Miniature Media Converter and Industrial Multipower Media Converter USB Power Adapter Cable
