Testers & Tools > Testers

click photo to enlarge

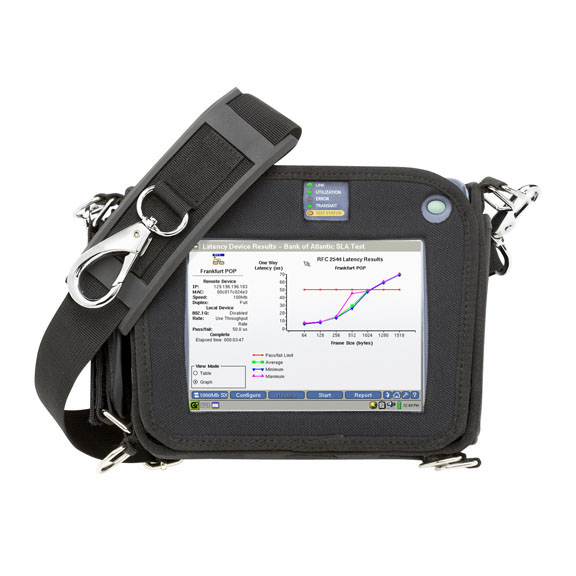

MTSCOPE

Photo may show similar product

Other views

Fluke Networks® MetroScope Mainframe

Perfect for service providers, this Ethernet tester provides SLA testing and detailed IP analysis.

MTSCOPE

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Ideal for use by service providers.
  • Provides RFC 2544 SLA testing.
  • Measures jitter and server response time.
  • Enables complete IP analysis.
  • Supports throughput, latency, frame loss, and back-to-back testing modes for RFC 2544 automated test suite.
  • Monitors traffic and discovers and analyzes active networks.


    • Description

    Fluke Networks® MetroScope Mainframe


    Quick Facts

  • Ideal for use by service providers.
  • Provides RFC 2544 SLA testing.
  • Measures jitter and server response time.
  • Enables complete IP analysis.
  • Supports throughput, latency, frame loss, and back-to-back testing modes for RFC 2544 automated test suite.
  • Monitors traffic and discovers and analyzes active networks.

    • Further Details

  • Full VGA color display offers resolution and detail that other handheld testers can’t match.
  • Simply touch the screen to run advanced tests such as VLAN discovery and monitoring.
  • Enables SNMP management.
  • Customizes scripting for optimum testing.
  • Control the tester with a Web browser.

    • When a network connection fails, users expect fast and complete troubleshooting service from their service provider.

    As a service provider, you need tools to provide fast, reliable troubleshooting service for your customers. For 10/100/1000BASE-T and 1000BASE-FX Ethernet connections, the Fluke MetroScope Mainframe pinpoints problems to get your network up and running again—fast.

    Via a simple user interface, the MetroScope provides complex testing. Just connect the tester to your copper or fiber network via its 10/100/1000BASE-T RJ-45 or 1000BASE-FX SFP’s dual SC connectors. Or use a Web browser to test a remote network.

    The MetroScope supports throughput, latency, frame loss, and back-to-back testing modes. This enables it to perform RFC 2544 testing. The tester generates customized reports. These reports include data about server response time, physical layer and BERT testing (the tester measures optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage). The tester also provides VLAN monitoring.

    In addition to RFC 2544 testing, you can even test jitter with accuracy in microseconds. This feature gives you SLAs for VoIP and IPTV.

    Because it complies with SLA standards for response time, the tester handles advanced services (think DNS or e-mail). IP analysis monitors traffic to provide troubleshooting for customer or network connections.

    Since the tester supports SNMP, you can query switches and routers, find overloaded ports, and pinpoint offending devices.


    Technical Specifications for Fluke Networks® MetroScope Mainframe:

    Approvals — MetroScope Mainframe unit: Shock and vibration: MIL-PRF-28800F for Class 3 equipment;
    Safety: CSA, CE, FCC Part 15 Class A, C-TICK N10140;
    AC adapter: UL® listed, CSA approved;
    Other: EMC EN61326, Class A, Criteria C
    SFP Modules Supported — 100BASE-LX, -SX, -ZX, -BX, 100BASE-FX
    Connectors — Testing ports: (1) RJ-45 10/100/1000BASE-T Ethernet, (1) pair of SC on SFP module, Communication ports: (1) USB, (1) PCMCIA (PC Card type II). (1) SFP, (1) CompactFlash (Card Type I/II), (1) DB9 serial, (1) headphone jack, (1) microphone jack, (1) Kensington lock receptacle,
    Indicators — (6) LEDs: Power, NEED OTHER 5 LEDs here
    Temperature — Operating: 32 to 122°F (0 to 50°C);
    Storage: -4 to +140°F (-20 to +60°C)
    Battery charging: 50 to 104°F (10 to 40°C);
    Power — AC input: 90 to 264 VAC, 28 to 62 Hz, 1.5 A external AC adapter/battery charger;
    Battery: (1) 7.2 VDC, 4.2 A Lithium ion removable/rechargeable battery (TECH: IS 4.2 A correct?);
    Battery life: Typical: 4 hours; Standby: 10 hours
    Auto charger: 12 V charger (fits in cigarette lighter) with 6-foot (1.8-m) cord (fully extended) and LED power indicator
    Size —  7.5"H x 6"W x 1.75"D (19.1 x 15.2 x 4.4 cm)
    Weight (with battery) — 1.9 lb. (0.9 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
