Cables > Fiber - Multimode

click photo to enlarge

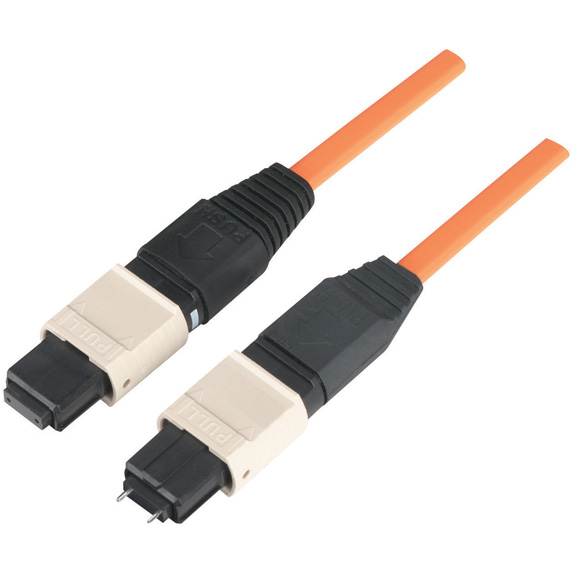

EFN5020

Photo may show similar product

Other views

MTP–MTP 12-Fiber Patch Cable, (1) MTP Male/(1) MTP Male, Custom Lengths

Get up to 12 fibers in a slim, light, preterminated cable.

EFN5020


One year Warranty

Product Highlights

  • Run 12 fibers in a single compact cable.
  • Guaranteed for life!


    • Description

    MTP–MTP 12-Fiber Patch Cable, (1) MTP Male/(1) MTP Male, Custom Lengths


    Quick Facts

  • Run 12 fibers in a single compact cable.
  • Guaranteed for life!

    • Further Details

  • Reliable, high-density connections for backbone and zone cabling.
  • The MTP connector is the most compact connector available on multistrand fiber cables.
  • No termination needed—reduces installation time and costs.


    • MTP Patch Cable features 12 fiber strands with an MTP connector on each end. Use for point-to-point application or for connections to standard patch panels.

    Run multistrand fiber optic cables without worrying about expensive, time-consuming termination. Because they’re preterminated, you can install and test them in the same day!

    MTP Cables are one-third the size of tight-buffered fiber optic cables. They fit into tighter spaces and have a smaller minimum bend radius. And the MTP connector supports up to 12 fibers in a tiny connector!

    Although MTP Cables are “ribbon” type, they are built for heavy-duty use and have the extra protection of a thermoplastic PVC jacket covering the fiber ribbon.

    Use MTP Cables in any high-density fiber optic environment, such as digital cross-connects, optical backplanes, parallel processing applications, and Fibre Channel storage facilities.


    Technical Specifications for MTP–MTP 12-Fiber Patch Cable, (1) MTP Male/(1) MTP Male, Custom Lengths:

    Fiber Type — 62.5/125 µm multimode
    Insertion Loss — Typical: 0.35 dB;
    Maximum: 1.0 dB
    MTP Crimp Sleeve — Tin-plated copper
    MTP Ferrule — Reinforced thermoplastic with stainless-steel alignment/guide
    MTP Grip Housing — VO-rated thermoplastic
    MTP Strain-Relief Boot — VO-rated thermoplastic rubber
    Connectors — EFN5018: (2) MTP F;
    EFN5019: (1) MTP F, (1) MTP M;
    EFN5020: (2) MTP M


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for MTP–MTP 12-Fiber Patch Cable, (1) MTP Male/(1) MTP Male, Custom Lengths:


    Connect your MTP–MTP 12-Fiber Patch Cable, (1) MTP Male/(1) MTP Male, Custom Lengths with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    You can find this product in the following subcategory(s)


    Kit Pricing

    Starting At: $259.51

    To order please call
    1-877-877-2269


    Shipping Info

    Usually Ships in 3-5 days


    45-day return policy
