Networking > Wireless

click photo to enlarge

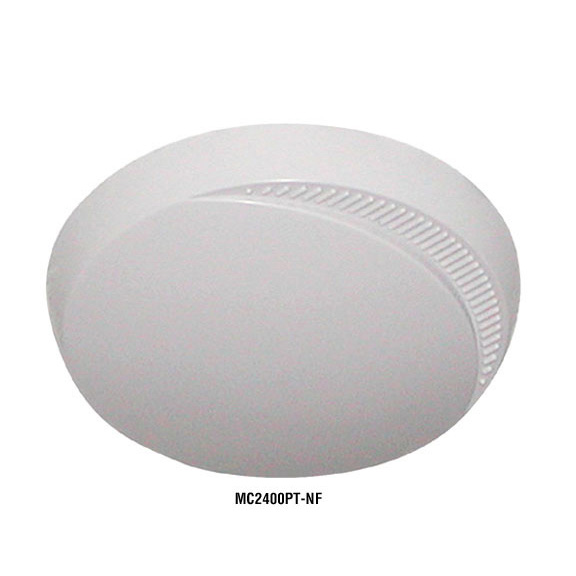

MC2400PT-NF

Photo may show similar product

Other views

MAXRAD Michelangelo Series 2.4-GHz ISM Antennas, Omnidirectional

Antenna solutions designed for all types of indoor wireless networks.

MC2400PT-NF


Two year Warranty

Product Highlights

  • A wide variety of wireless antennas for a wide variety of applications.


    • Description

    MAXRAD Michelangelo 2.4-GHz ISM Ceiling-Mount Antenna, Omnidirectional


    Quick Facts

  • A wide variety of wireless antennas for a wide variety of applications.

    • Further Details

    Omnidirectional Antenna (MC2400PT-NF)
    • A low-profile antenna for indoor applications where you need an unobtrusive solution.
    • Works in 2.3- to 2.5-GHz frequencies with a VSWR of less than 1.5:1 across the band.
    • Has a UL® Listed radome housing that blends well with most office environments.
    • Mounts easily to drop-ceiling tiles or solid ceiling surfaces with cable-routing access.
    • Includes a 1-foot (0.3-m) plenum RG58/U pigtail cable with an N-Type connector.

    Omnidirectional Diversity Antenna (MCD2400PT-NF)
    • Combines two flat ceiling-mount omnidirectional antennas for spacial diversity uses.
    • Covers frequencies from 2.4- to 2.485-GHz with a VSWR of less than 1.5:1.
    • UL® Listed, aesthetically pleasing radome housing mounts easily to dual studs in ceiling tiles or solid ceiling surfaces.
    • Offers more than 20 dB of isolation between two elements.
    • Includes a 1-foot (0.3-m) plenum RG58/U pigtail cable with an N-Type connector.

    Omnidirectional Fiberglass Antenna (MFB2400CM)
    • Features a radome housing with 5⁄8“diameter pultruded, UV-stabilized fiberglass for use in harsh indoor environments.
    • Covers 2.4- to 2.483-GHz frequencies with a VSWR of less than 1.5:1.
    • No need for a ground plane. Mounts in a ceiling tile with included bracket.
    • Has an N-Type female connector.

    Omnidirectional Ultra-Flat Diversity Antennas (UFO24003PT-NF, UFODAP1200)
    • For above-ceiling spatial diversity applications.
    • Combine two ultra-flat omnidirectional antennas with isolation greater than 25 dB.
    • Include two 3-foot (0.9-m) plenum-rated RG58/U pigtails with N-Type connectors.
    • UFODAP1200 model has mounting bracket for housing a Cisco AP1200 Access Point.
    • Uses UL® 94-V-0 materials for the highest UL® flame retardant rating.

    Bidirectional Antenna (MHA2400PT-NF)
    • Provides extended point-to-point wireless LAN coverage in two directions.
    • Small, low-profile design and bidirectional function make it ideal for use in long corridors or other areas where you need more focused, radiated coverage.
    • Radome built of UL® 94-V-0 rated material and has 6“ (15.2-cm) plenum RG-58 cable.

    XtremeWave™ Directional Panel Antenna (MP24013XFPT-NF)
    • Can be used indoors and out and be mounted in vertical or horizontal polarity.
    • VSWR of less than 1.5:1 and maximum gain from a low-profile package.
    • Built of UL® 94-V-0 rated plastic and includes a 1-foot (0.3-m) plenum RG-58/U cable.


    Technical Specifications for MAXRAD Michelangelo Series 2.4-GHz ISM Antennas, Omnidirectional:

    Omnidirectional Antennas (except Ultra-Flat models):
    Impedance (Nominal) — 50 ohms
    Mounting Method — MC2400PT-NF, MCD2400PT-NF: Studmount (single hole on MC2400PT-NF and double hole on MCD2400PT-NF); include side cable exit adapter for solid ceiling mounting; optional bracket also available for ceiling-tile mounting in areas requiring no visibility of the antenna;
    MFB24004CM: Ceiling-mount bracket (included)
    Polarization — MC2400PT-NF, MCD2400PT-NF: Vertical, linear;
    MFB24004CM: Vertical
    Connector — (1) N-Type F
    Size — MC2400PT-NF: 4.25"W x 0.5"D (10.8 x 1.3 cm);
    MCD2400PT-NF: 0.5"H x 4.25"W x 8.5"D (1.3 x 10.8 x 21.6 cm);
    MFB24004CM: 10"H (25.4 cm) with 1.25" (3.2-cm) mounting base diameter
    Weight — MC2400PT-NF: 0.5 lb. (0.2 kg);
    MCD2400PT-NF: 1 lb. (0.5 kg);
    MFB2400CM: 0.3 lb. (0.1 kg)
    Warranty — 1 Year

    Omnidirectional Ultra-Flat Diversity Antennas:
    Beamwidth — Horizontal: 360°;
    Vertical: 55°
    Frequency Range — 2400–2500 MHz
    Gain — 3 dBi
    Impedance (Nominal) — 50 ohms
    Isolation — > 25 dB
    Mounting Method — Dual 10-32 stud mount
    Polarization — Vertical, linear
    VSWR — <2:0:1
    Connector — (1) N-Type F
    Power — Input: 20 watts maximum
    Size — UFOD24003PT-NF: 0.1"H x 10"D x 5"W (0.3 x 25.4 x 12.7 cm);
    UFODAP1200: 9"H x 9"W x 36"D (22.9 x 22.9 x 91.4 cm) assembled
    Weight — UFOD24003PT-NF: 0.5 lb. (0.2 kg);
    UFODAP1200: 3.5 lb. (1.6 kg)
    Warranty — 1 Year

    Bidirectional Antenna:
    Beamwidth — Vertical: 75°
    Frequency Range — 2300–2500 MHz
    Gain — 4 dBi
    Impedance (Nominal) — 50 ohms
    Mounting Method — Bracket clips to standard 1"W suspended ceiling tile rails; holes provided for flat-ceiling mounting with screws (not included)
    Polarization — Vertical
    VSWR — <2:1
    Connector — (1) N-Type F
    Power — Input: 10 watts maximum
    Size — 2.5"H x 3"W x 0.5"D (6.4 x 7.6 x 1.3 cm)
    Weight — 0.1 lb. (<0.1 kg)
    Warranty — 1 Year

    XtremeWave Directional Panel Antenna:
    Beamwidth — 3-dB vertical and horizontal: 35°
    Frequency Range — 2300–2500 MHz
    Front-to-Back Ratio — > 18 dB
    Gain — 13.0 dBi
    Polarization — Vertical or horizontal, linear
    VSWR — <1.5:1
    Connector — (1) N-Type F
    Power — Input: 20 watts maximum
    Size — 8.8"H x 8.1"W x 1.6"D (22.4 x 20.6 x 4.1 cm)
    Weight — 1.2 lb. (0.5 kg)
    Warranty — 1 Year
    All include adjustable brackets for indoor mounting. For indoor corner or outdoor mounting, these products work with:
  • MAXRAD Antenna Brackets
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
