ACU5001A

Photo may show similar product

Other views

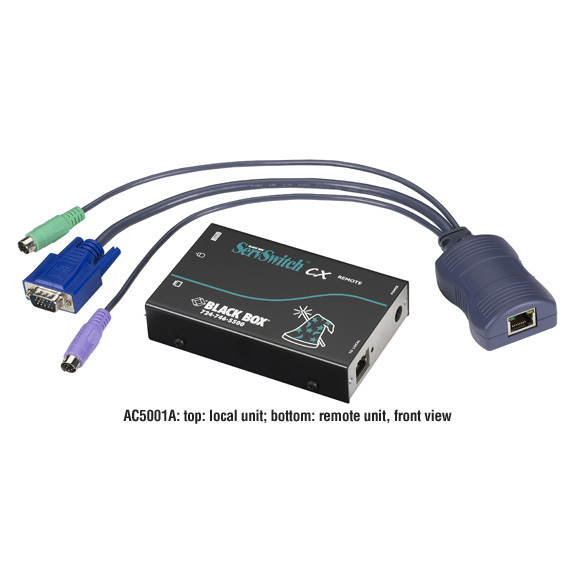

Low-Cost ServSwitch Wizard Extender Kit for PS/2 Console and PS/2 Computer

Use a PS/2 keyboard and mouse at your remote console to connect to a PS/2 computer up to 328 feet away.

ACU5001A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Provides 1600 x 1200 resolution up to 328 feet (100 m).
  • Provides 1900 x 1440 resolution at up to 164 feet (50 m).


  • Description

    Low-Cost ServSwitch Wizard Extender Kit for PS/2 Console to PS/2 Computer


    Quick Facts

  • Provides 1600 x 1200 resolution up to 328 feet (100 m).
  • Provides 1900 x 1440 resolution at up to 164 feet (50 m).

  • Further Details

  • Perfect for short-haul extension applications over CATx cable.
  • Compatible with a wide range of operating systems: Windows®, DOS, Linux, UNIX®, BSD, Sun® OS, NetWare®, and more!
  • Includes Rackmount Blanking Plate (ACU5005).


  • Need simple, inexpensive KVM extension for short distances? The BLACK BOX® Low-Cost ServSwitch Wizard™ Extender Kit extends your CATx transmissions up to 328 feet (100 m) for a PS/2® computer.

    You get top-flight video performance with resolutions of 1600 x 1200 up to 328 feet (100 m) and 1900 x 1440 up to 164 feet (50 m). The Wizard Extender Kit features built-in skew compensation and emulated DDC so your computer's high-performance video card can be used at high resolutions. What's more, the extender offers its own brightness correction to ensure clear and bright images. You can use the extender kit with flat-screen and CRT-style monitors.


    Technical Specifications for Low-Cost ServSwitch Wizard Extender Kit for PS/2 Console and PS/2 Computer:

    Approvals CE
    Distance 328 feet (100 m) maximum
    Operating Temperature 32 to 104° F (0 to 40° C)
    Connectors Local module: Interconnect: (1) RJ-45; Keyboard and mouse: (2) 6-pin mini DIN F; Video: (1) HD15 F;
    Remote module: Interconnect: (1) RJ-45; Keyboard and mouse: (2) 6-pin mini DIN F; Video: (1) HD15 F; Power: (1) 2.5-mm jack
    Power 100-240 VAC, 50-60 Hz, autosensing, external
    Size 1"H x 1.8"W x 2.4"D (2.5 x 4.6 x 6.4 cm)


    This product works with:
  • GigaBase® 350 CAT5e, 350-MHz Patch Cable (EVNSL5+)
    Questions? Contact ServSwitch Central™ at 724-746-5500 or by clicking "Talk to a Tech."

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for Low-Cost ServSwitch Wizard Extender Kit for PS/2 Console and PS/2 Computer:

    Product Data Sheets

    Application Diagrams

    Software

    • ServSwitch Brand KVM Extender Software


    Connect your Low-Cost ServSwitch Wizard Extender Kit for PS/2 Console and PS/2 Computer with:

    Accessory: ACU5002A

    Low-Cost ServSwitch Wizard Extender Kit for PS/2 Console and USB Computer

    Low-Cost ServSwitch Wizard Extender Kit for PS/2 Console and USB Computer

    Accessory: EVNSL57-0010

    GigaBase 350 CAT5e Patch Cable, Basic Connectors, Black, 10-ft. (3.0-m)

    GigaBase 350 CAT5e Patch Cable, Basic Connectors, Black, 10-ft. (3.0-m)
