Cables > Fiber - Multimode

click photo to enlarge

FOR-SL-50-010M-LCLC

Photo may show similar product

Other views

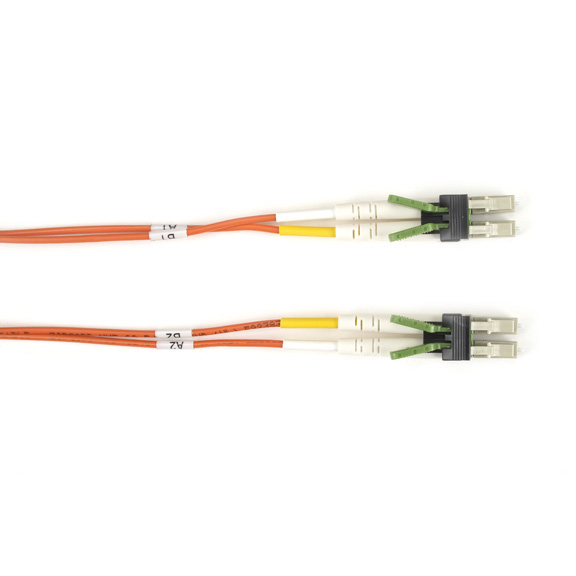

LockPORT Secure Locking 50-Micron Fiber Optic Patch Cable, Duplex, Riser, LC-LC, 10-m (32.8-ft.)

Secure your ports from unauthorized access and accidental disconnects.

FOR-SL-50-010M-LCLC


Lifetime Warranty

Product Highlights

  • Secure your ports and your network.
  • Prevent unauthorized personnel from disrupting vital network connections.
  • Protect publicly accessible network connections.
  • Avoid preventable downtime from accidental disconnects.
  • Cables stay locked in place—until YOU take them out.
  • Select from three types of cables with different locks: secure/secure, secure/key, and key/key.
  • Key locks require a removal tool; Secure locks do not.
  • Guaranteed for life!


    • Description

    LockPORT Secure Locking 50-Micron Fiber Optic Patch Cable, Duplex, Riser, LC-LC, 10-m (32.8-ft.)


    Quick Facts

  • Secure your ports and your network.
  • Prevent unauthorized personnel from disrupting vital network connections.
  • Protect publicly accessible network connections.
  • Avoid preventable downtime from accidental disconnects.
  • Cables stay locked in place—until YOU take them out.
  • Select from three types of cables with different locks: secure/secure, secure/key, and key/key.
  • Key locks require a removal tool; Secure locks do not.
  • Guaranteed for life!

    • Further Details

  • Make your fiber patch cables a Layer 1 security tool.
  • Lock up critical network ports in data centers, and wiring closets to prevent disconnects and vandalism.
  • Stop disgruntled employees from causing havoc and bringing the network down.
  • Prevent tampering in public areas such as hotels, airports, event centers, government offices, shops, and more.
  • Perfect for safeguarding wireless access points, security cameras, and PoE equipment connections.
  • Ideal for a variety of industries: healthcare, education, retail, manufacturing, government, and more.
  • Great for new buildings and upgrades to existing buildings.
  • Insertion loss of less than 3 dB.
  • Duplex riser cable features two 900-µm buffered fibers, acrylate coating, aramid yarn strength members, PVC jacket, and ceramic connectors.
  • Ceramic connectors provide low signal loss and high reliability.
  • Guaranteed for life!


    • Boost your physical network security starting at the port. Here's one of the simplest and inexpensive, yet most effective ways you can increase your Layer 1 security. Lock up your network ports with LockPORT Security Locking Patch Cables. If someone can't disconnect your network cable connections—either intentionally or accidentally—they can't tamper with and bring down your network.

    Another danger to your network are cable connections that work loose over time or are accidentally knocked out. Loose cable connections are also one of the largest causes of network downtwime.

    Two levels of security.
    LockPORT cables feature two different locks. Both feature the same LockPORT boot. What differs are the patented clip inserts. One requires a key for removal while the other does not.

    For absolute port security, use the Key Lock cable. It features a specially designed clip, which can’t be released without the special Removal Tool (sold separately). To unlock the cable, simply insert the Tool in the clip.

    To prevent accidental disconnects, use the Secure Lock cable. Just squeeze the secure butterfly-style clip into the boot. This holds the cable in place and eliminates disconnects from jostling and general wear and tear.

    Choose from three types of cables.
    Depending on your application, you can choose from three types of cables. One has Key Locks on both ends. The second has Secure Locks on both ends. The third has a Key Lock on one end and a Secure Lock on the other.


    Technical Specifications for LockPORT Secure Locking 50-Micron Fiber Optic Patch Cable, Duplex, Riser, LC-LC, 10-m (32.8-ft.):

    Attenuation (Maximum) — 850 nm: =2.3 dB; 1300 nm: =0.7 dB
    Bandwidth (Maximum) — 850 nm: 500 MHz
    Bend Radius — Load: 2.3" (5.8 cm); Unload: 1.1" (2.9 cm)
    Diameters — 900 µm buffering, 125 µm cladding
    Insertion Loss — = 0.3 dB
    Jacket — PVC: OFNR/FT4
    Outer Diameter — 2.0 mm (0.07")/4.0 mm (0.15")
    Standards — IEC 60793-2
    Temperature — Operating: -4 to +176° F (-20 to +80° C); Storage: -40 to +176° F (-40 to +80° C)
    Tensile Load — Short Term: 150 N (33.75 lb./ft.); Long Term: 80 N (18 lb./ft.)
    Type — Duplex riser
    Wavelength — 850/1300 nm
    NOTE: This Key Lock cable requires the Removal Tool (KEY-BK).
    Questions? Contact our FREE Tech Support.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
