Networking > Legacy Technologies

click photo to enlarge

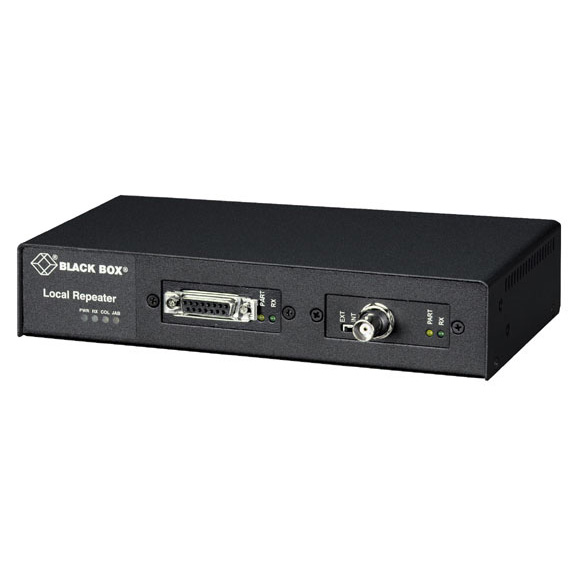

LE601A-R3

Photo may show similar product

Other views

Local Repeaters, AUI/AUI

Top-quality, standalone repeaters for all Ethernet media types.

LE601A-R3

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Support for standard coax, ThinNet, 10BASE-T, or fiber.

  • Description

    Local Repeaters, AUI/AUI


    Quick Facts

  • Support for standard coax, ThinNet, 10BASE-T, or fiber.

  • Further Details

    Autosensing power supplies.
    Just plug in these repeaters. Their internal power supplies automatically adjust to any power source with AC voltage from 90 to 260 VAC and power input frequencies between 47 and 63 Hz.

    Full repeater functionality.
    Each repeater has port connections, so you can connect two Ethernet segments. And each segment conforms to IEEE 802.3 specifications for length and number of nodes. You get precise transmission of your LAN data—each unit performs full-signal regeneration and retiming.

    Models for all interfaces.
    There’s a range of models, too. You can select just the right repeater no matter what cable type you’re using: standard coax, ThinNet, unshielded twisted pair, or fiber optic.

    Local Repeaters.
    With the Local models, you can connect or mix and match copper-based Ethernet segments.

    Remote Fiber Optic Multimode Repeaters.
    Break the Ethernet coax distance barrier for your network. Use the Remote units with their fiber optic connector ports to get greater distances by linking two Ethernet segments via fiber optic cable. These repeaters are 10BASE-FL compliant, so you can make long-distance connections over a mile (1.6 km) away. And the repeaters are fully backwards compatible with FOIRL, so you can integrate them into your network easily.

    Remote Fiber Optic Single-Mode Repeaters
    Or send your data even further with these repeaters—go up to 6.2 miles (10 km).


    Technical Specifications for Local Repeaters, AUI/AUI:

    SPECIFICATIONS
    Standards — Depending on the unit: Ethernet v. 1.0/v. 2.0, IEEE 802.3, 10BASE5, 10BASE2, 10BASE-T, 10BASE-FL, FOIRL, DTE
    CE Approval — Yes
    Connectors — Standard Ethernet: DB15 F;
    ThinNet: BNC for RG-58A/U coax cable;
    10BASE-T: RJ-45;
    Fiber optic: ST®
    Indicators — All models: PWR, RX, JAB, COL;
    AUI and BNC ports: (1) Port, (1) RX per port;
    10BASE-T and fiber ports: (1) Link, (1) Port, (1) RX per port
    Power — Local and Remote Fiber Optic Multimode Repeaters: 90–260 VAC, 47–63 Hz autosensing, 15 watts;
    Remote Single-Mode Fiber Repeaters: 115–260 VAC, 60–50 Hz, autosensing
    Size — 1.8“H x 8.5“W x 5.4“D (4.6 x 21.6 x 13.7 cm)
    Weight — 2.5 lb. (1.2 kg)
    These products work with:
    • ThinNet Cable (LCN300)
    • Standard Ethernet Backbone Coax Cable (LCN100)
    • Ceramic Terminated Multimode Fiber Optic Cable, ST–ST (EFN062-CC)
    • Single-Mode Duplex Fiber Optic Cable, ST–ST (EFN5009)
    • CAT5 100-MHz Patch Cable, 4-Pair, Straight-Pinned (EVMSL05)
    Questions? Contact Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Local Repeaters, AUI/AUI:

    Product Data Sheets

    Application Diagrams


    Connect your Local Repeaters, AUI/AUI with:

    Accessory: LCN300-0010

    ThinNet Cable, 10-ft. (3.0-m)

    ThinNet Cable, RG-58, 10BASE2, PVC (NEC® CL2), 10-ft. (3.0-m)

    Accessory: EFN5009-001M

    ST–ST, PVC, 1-m (3.2-ft.)

    Single-Mode, 8.3-Micron Duplex Fiber Optic Cables, ST–ST, PVC, 1-m (3.2-ft.)

    Accessory: LCN100-0077

    Standard Ethernet Backbone Coax Cable (NEC® CL2 & CL2P), 802.3, 77-ft. (23.4-m)

    Standard Ethernet Backbone Coax Cable (NEC® CL2 & CL2P), 802.3, PVC, 77-ft. (23.4-m)
