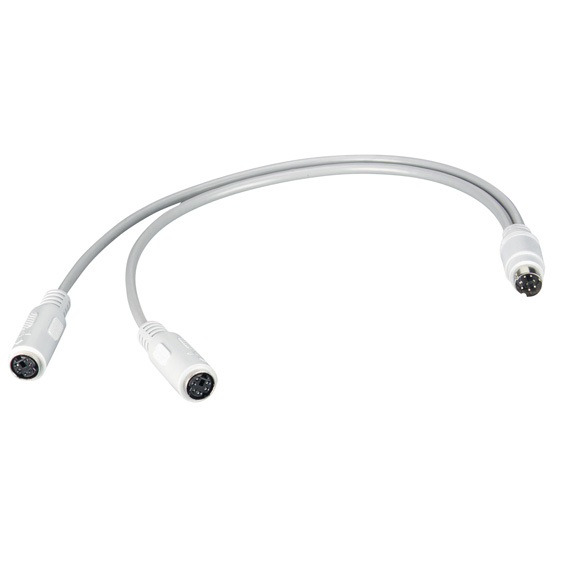

Laptop Y Cable

"Y"? For easy laptop connections.

BC00210

LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Includes 6-pin mini DIN connectors that link accessories, such as trackballs, to an IBM® AT® style computer or keyboard port.
  • 28 AWG, stranded copper cable has a 100% foil Mylar® shield.
  • Guaranteed for life!


  • Further Details

  • Features an older AT style connector.


  • Capacitance 33.3 pF/ft.
    Conductor Material Stranded copper
    Current (Maximum) 1 amp
    Diameter 0.2 ± 0.005
    Distance (Maximum) 25 ft. (7.8 m)
    Hood Assembly 6-pin connector, plastic boot over metal connector
    Jacket Material 0.04" (0.1 cm) thick PVC
    Number of Conductors 6
    Resistance 72 ohms/1000 ft.
    Shielding Overall: Aluminum/polyester, aluminum tape with 25% minimum overlap
    Temperature Tolerance -4 to +176° F (-20 to +80° C)
    Voltage Rating 100 V
    Wire Gauge Conductor and drain wire: 28 AWG (7 x 36 AWG)
    Connectors (1) 6-pin mini DIN M, (2) 6-pin mini DIN F


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Application Diagrams


    Double Diamond Warranty
    LIFETIME DoubleDiamond™ Warranty (Standard)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The Laptop Y Cable comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $15.10

    Quantity Available: 517

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.087 lbs.
    HxWxD: 0.7 x 4.9 x 5.9 in.
