Testers & Tools > Testers

click photo to enlarge

TS4000A

Photo may show similar product

Other views

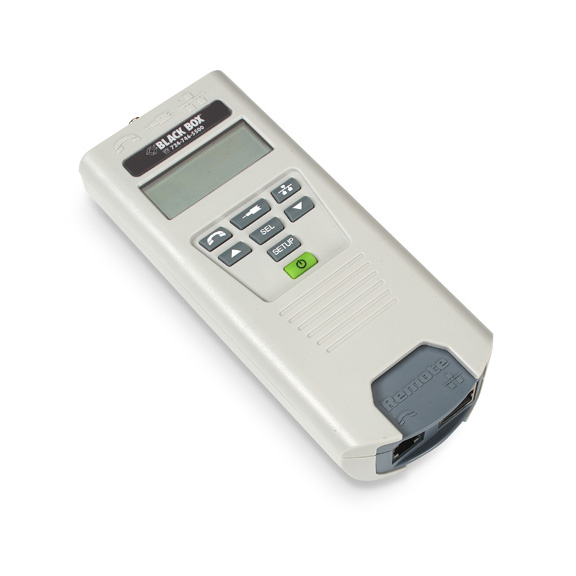

LanTest Pro GB Cable Tester Kit

Test CAT6 Gigabit Ethernet cable runs.

TS4000A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Test Gigabit cabling with this advanced but easy-to-use tool.
  • Use for installation, troubleshooting, and maintenance of Gigabit Ethernet cabling.
  • Use on CAT5e, CAT6, even coax lines.

  • Description

    LanTest Pro GB Cable Tester Kit


    Quick Facts

  • Test Gigabit cabling with this advanced but easy-to-use tool.
  • Use for installation, troubleshooting, and maintenance of Gigabit Ethernet cabling.
  • Use on CAT5e, CAT6, even coax lines.

  • Further Details

  • Measures cable length using patented cable capacitance method.
  • Displays single-ended test results in wiremap format for opens, shorts, and split pairs.
  • Tests and displays in wiremap format shorts, opens, miswires, reversals, and split pairs with a remote.
  • Identifies cable termination on active ports by blinking port LED.
  • Two-line, 16-character, back-lit, full alphanumeric LCD with icon flags.
  • Auto-off and timed backlight in any mode for low power consumption and long battery life.
  • Determine condition of wires.
  • Find and fix position of exposed or hidden cable.

  • If you need to test Gigabit Ethernet networks, the LanTest Pro GB Cable Tester Kit is an integral part of your tool bag. This all-in-one tester provides telecom, datacom, and cable installers and technicians with cable testing, length measurement, and hub blink functions. Just push one button on this easy-to-use tester to initiate telco, network, and coax modes for diagnostic tests and results.

    Use the LanTest Pro GB Cable Tester Kit to perform detailed cable analysis. When used without the remote, it tests and reports on shorts, opens, and split pairs conducted. When used with the remote, it detects miswires, no connections, shorts, high-resistance faults, and split pair conditions. The tester also measures cable length and displays a PASS icon for correctly wired T568A/B and six-pin cable. The MAP ID function identifies multiple cables by displaying ID numbers of map-only remotes. The tone generator mode sends any of four user-selectable tones on all pin and pair combinations.

    The main unit includes built-in RJ-11 and RJ-45 jacks for testing six- and eight-wire twisted-pair cable and an F-connector for testing coax cable. An integrated remote bay houses a detachable test remote with built-in jacks for testing twisted-pair cable terminated with RJ-11 or RJ-45 connectors. The kit also includes eight cable test remotes.


    What's included:
  • Tester with built-in remote
  • (7) cable test remotes
  • 1-ft. RJ-45/alligator-clip cable assembly
  • (2) 1-ft. RJ-45/RJ-45 cables
  • 1-ft. coax cable
  • (1) Coax cable test remote
  • Nylon case


  • Technical Specifications for LanTest Pro GB Cable Tester Kit:

    Cable Types — Shielded or unshielded twisted pair and coax
    Environmental — Operating temperature: 32 to 122° F (0 to 50° C)
    Storage temperature: 14 to 140° F (10 to 60° C)
    Humidity: 10 to 90%, noncondensing
    Length Measurement Range — CAT5/6: 0 to 2000 ft. (0 to 610 m)
    Cable Length (Min.) — Pretest: 4 ft. (1.22 m);
    Split Pairs: 3 ft. (0.9 m)
    CE Approval — Yes
    Power — (1) 9-V battery, not included
    Size — Excluding F-connector: 1.3"H x 2.6"W x 6.2"D (3.3 x 6.7 x 15.7 cm)
    Including F-connector: 1.3"H x 2.6"W x 6.6"D (3.3 x 6.7 x 16.8 cm)
    Weight — 0.52 lb. (0.24 kg) with battery and remote


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for LanTest Pro GB Cable Tester Kit:

    Manuals

    • LanTest Pro GB Cable Tester Kit User Manual
      User Manual for TS4000A (1)
