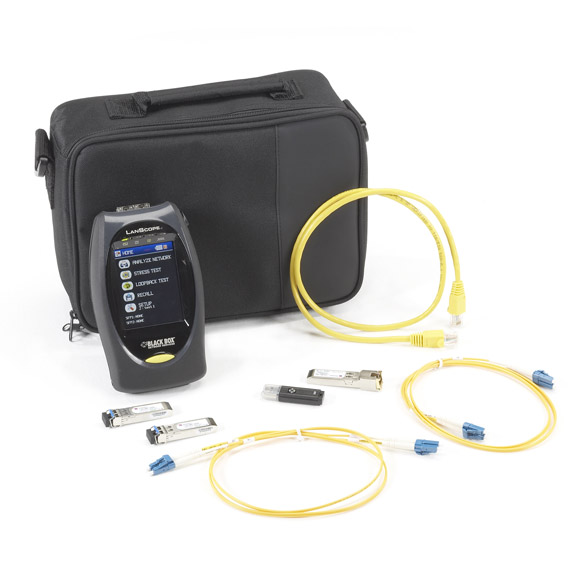

LANSCOPEPRO-SM

Photo may show similar product

Other views

LanScopePro Copper Fiber Network Analyzer, Single-Mode

Advanced Gigabit network and cable and fiber tester provides expert help at an affordable price.

LANSCOPEPRO-SM

Extended Double Diamond™ Warranty Available
(1 Year)

Product Highlights

  • Analyze and troubleshoot networks from the cabling to the packet.
  • Almost all of the features of the LanScope plus fiber capabilities!
  • Quickly change interface modules to instantly connect to single-mode, multimode, and bidirectional fiber with data rates up to 1.25 Gbps, as well as 10/100/1000BASE-T devices.


  • Description

    LanScopePro Copper Fiber Network Analyzer, Single-Mode


    Quick Facts

  • Analyze and troubleshoot networks from the cabling to the packet.
  • Almost all of the features of the LanScope plus fiber capabilities!
  • Quickly change interface modules to instantly connect to single-mode, multimode, and bidirectional fiber with data rates up to 1.25 Gbps, as well as 10/100/1000BASE-T devices.

  • Further Details

  • Enables LAN installers, technicians, managers, and service providers to quickly maintain and optimize 10/100/1000BASE-T networks with a single tester.
  • Features include link detection, PING and trace, packet monitoring, traffic generation, VoIP, e-mail, inline PoE tests, and more.
  • Provides complete inline packet inspection.
  • Detailed packet monitoring, filtering, and capture help identify and solve complex problems.
  • Flexible traffic generation and structured stress tests demonstrate network performance under varying load conditions.
  • VoIP, e-mail, and inline PoE tests provide statistics and measurements required to ensure proper network performance.
  • Captures up to 10,000 packets for analysis or download.
  • Measures PoE voltage and power to determine switch port power allocation.
  • Processes VoIP traffic to determine call statistics and quality.
  • Qualifies network segments with stress test prior to activating.
  • Automatically identifies standard link, frame, and traffic problems.
  • Identifies connected network devices by type, IP address, or MAC address.
  • Color LCD touch screen display.


  • Make the LanScopePro Copper Fiber Network Analyzer an essential part of your tool kit. Use it for installing, monitoring, maintaining, upgrading, and troubleshooting any network. With this one tool, you have one of the most complete suites of testing and analysis functions available at a very affordable price.

    Use the Inline mode to non-intrusively monitor network traffic (10/100/1000BASE-T) to identify protocols, port usage, VoIP statistics, and network utilization. The LanScopePro can capture and store up to 10,000 packets with user-defined filters for detailed analysis in the field. Or download test results over the network or to a flash drive.

    The analyzer features two RJ-45 ports, which you can use for tests such as PING, Link, Trace, DHCP, and Discovery to quickly identify network problems. The LanScopePro can also generate up to 100% traffic loading with control of packet rate and size to demonstrate network performance at various traffic levels.

    You can perform a stress test that generates traffic and measures performance in accordance with RFC 2544. Run the test using the two independent ports on a single unit or run it with a second unit located remotely on the network.


    Technical Specifications for LanScopePro Copper Fiber Network Analyzer, Single-Mode:

    Display Color LCD touch screen, 320 x 240 RGB
    Temperature Operating: 32 to 122° F (0 to 50° C);
    Storage: 14 to 131° F (-10 to 55° C)
    Test Modes Inline; Single-ended; Dual independent
    CE Approval Yes
    Connectors (2) RJ-45; (1) USB Type A; (1) USB Type B
    Power Lithium ion battery pack, AC adapter
    Size 2.8"H x 4"W x 6.5"L (7.1 x 10.0 x 16.5 cm)
    Weight 1.4 lb. (0.6 kg)

    This product works with:
  • LanScopePro SFPs (LSPGIG, etc.)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for LanScopePro Copper Fiber Network Analyzer, Single-Mode:

    Videos


    Connect your LanScopePro Copper Fiber Network Analyzer, Single-Mode with:

    Accessory: LSPGIG

    LanScopePro 10/100/1000BASE-T SFP Module with RJ-45 Interface

    LanScopePro 10/100/1000BASE-T SFP Module with RJ-45 Interface

    Accessory: LSPMM850

    LanScopePro Multimode SFP, 1.25 Gbps, 850-nm, 550 m

    LanScopePro Multimode SFP, 1.25 Gbps, 850-nm, 550 m

    Accessory: LSPSM1310

    LanScopePro Single-Mode SFP, 1.25 Gbps, 1310-nm, 20 km

    LanScopePro Single-Mode SFP, 1.25 Gbps, 1310-nm, 20 km
