Industrial > Testers

click photo to enlarge

TS565A

Photo may show similar product

Other views

LAN Solution Network Tester Kit

A complete kit with a world-class tester and everything you need for extensive troubleshooting.

TS565A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Get the best tool for checking UTP, STP, and coax cable, plus tone-tracing equipment and more.
  • Tests cable and monitors and corrects network problems with Physical Layer and link conditions.
  • Checks for opens, shorts, miswires, and split pairs when doing simple testing with the tester and remote.


    • Description

    LAN Solution Network Tester Kit


    Quick Facts

  • Get the best tool for checking UTP, STP, and coax cable, plus tone-tracing equipment and more.
  • Tests cable and monitors and corrects network problems with Physical Layer and link conditions.
  • Checks for opens, shorts, miswires, and split pairs when doing simple testing with the tester and remote.

    • Further Details

  • Is able to map to its remotes while cable testing.
  • Reports current of analog phone lines.
  • Detects “Ethernet phantom power.“
  • PINGing function verifies connections to devices and queries NICs.
  • Reports network speed and the location and capabilities of network equipment.
  • Identifies port services.
  • Test up to eight connections with the kit.
  • Maps to its remotes while cable testing.
  • Battery supports 50 hours of continuous cable testing and 12 hours of continuous network testing.

    If you’re an installer or an IT professional responsible for keeping your company’s systems operating at peak efficiency, you need the right tools to get the job done.

    The LAN Solution Network Tester is just such a tool—it’s a network management device that combines the capabilities of a world-class cable tester with advanced features.

    Using the LAN Solution Network Tester as a Physical Layer device, you get high-end cable testing functions and a length-measurement device that monitors and corrects network problems with Physical Layer and link conditions.

    The tester identifies port services like Ethernet, ISDN, POTS, and Token Ring. At the same time, it reports information such as network speed and the location of switches and other network devices as well as their capabilities. The tester’s PINGing function verifies connections to network devices and also queries NICs in the network’s PCs.

    Unique functions include the ability to detect “Ethernet phantom power” per IEEE 802.3af specifications. The LAN Solution Network Tester can also report current and voltage capabilities of analog phone lines, plus it can map to its remotes while cable testing.

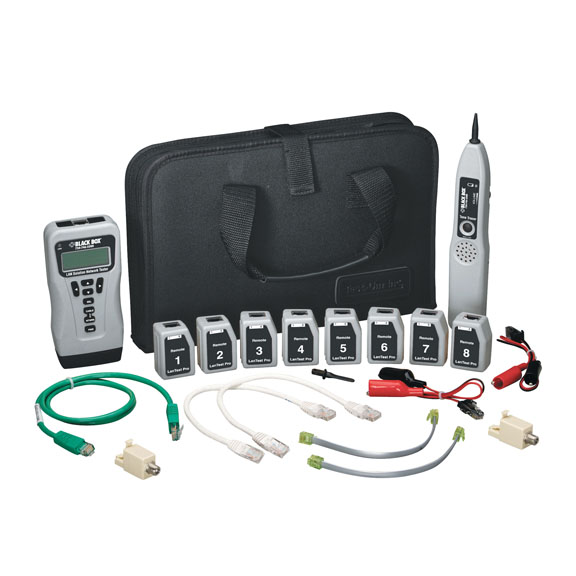

    What’s included
  • LAN Solution Network Tester
  • (8) remotes
  • Tone tracer
  • (2) R-45 to F-type coax connectors
  • (2) 12" RJ-45/alligator-clip cable assemblies
  • (2) 12" UTP cables with RJ-45 connectors
  • (2) 7.5" cable assemblies with no-fault RJ-12 connectors for RJ-11 and RJ-45 jacks
  • Carrying case
  • (1) 9-V alkaline battery


    • Technical Specifications for LAN Solution Network Tester Kit:

    For the LAN Solution Network Tester:
    Battery Life — Standby Mode: 2.5 years;
    Cable Testing Mode: 50 hours (continuous);
    Network Testing Mode: 12 hours (continuous)
    Cable Test Lengths — CAT5, CAT5e, CAT6: Maximum length: 1500 ft. (457.2 m);
    Testing single-ended cable: Minimum length: 4 ft. (1.2 m);
    Testing split-pair cable: Minimum length: 3 ft. (0.3 m)
    Cable Types — Shielded or unshielded CAT3, CAT5, CAT5e, CAT6; coax (with coax connectors attached)
    Operating Environment – Temperature: 32 to 122 ° F (0 to 50 ° C);
    Humidity: 10 to 90% noncondensing
    CE Approval — Yes
    Size — 5.9"H x 2.9"W x 1.3"D (15 x 7.4 x 3.3 cm)
    Weight — With battery: 0.4 lb. (0.2 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
