Testers & Tools > Testers

click photo to enlarge

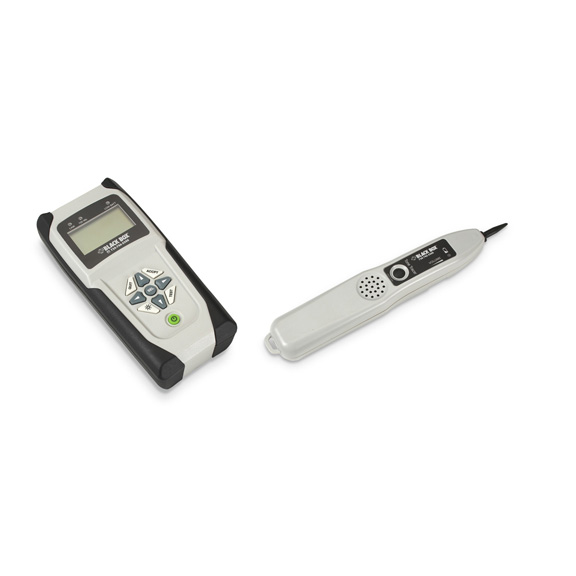

TS5000A

Photo may show similar product

Other views

LAN Solution GB Network Tester Kit

Combines a high-end cable tester with an easy-to-use Gigabit and PoE tester.

TS5000A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Test PoE to ensure adequate power for powered devices such as VoIP phones.
  • Detects and reports speed, duplex mode, wiring mode, and polarity of transmit pair for active Ethernet and other devices up to 1 GB.
  • Tests CAT5/5e/6 network cabling.

  • Description

    LAN Solution GB Network Tester Kit


    Quick Facts

  • Test PoE to ensure adequate power for powered devices such as VoIP phones.
  • Detects and reports speed, duplex mode, wiring mode, and polarity of transmit pair for active Ethernet and other devices up to 1 GB.
  • Tests CAT5/5e/6 network cabling.

  • Further Details

  • Simultaneously pings three addresses at once to verify connectivity to network devices.
  • Blinks a link indicator to identify hub or switch port and links to Cisco bridge or router ports using Cisco Discovery Protocol.
  • Tests cabling configuration and verifies connectivity.
  • Checks for opens, shorts, miswires, split pairs, faults, and reverses.
  • Wiremaps network connections with remote identifiers.
  • Displays length measurement for each pair in feet or meters.
  • Network testing for port discovery, ping test, and hub flash.
  • Conducts single-ended and remote cable tests.
  • Back-lit alphanumeric LCD with icon flags.


  • With the LAN Solution GB Network Tester Kit, you get all the functions of a high-end cable tester and length measurement device plus the capabilities of a Gigabit network tester. You’ll be able to identify, monitor, and correct problems associated with physical layer and link conditions in the your network.

    As a cable tester, the LAN Solution GB Network Tester Kit provides complete cable testing functions. It will display wiremap, ID, and any faults, including shorts, opens, miswires, split pairs, and reverses. You can also use the LAN Solution to measure cable length.

    To test your network, the LAN Solution gives you a quick and easy way to identify active Ethernet, POTS, Token Ring, and other devices at unknown RJ-45 jacks. Use it to test for the presence of devices using power over Ethernet (PoE) at the other end of the jack or cable being tested. The LAN Solution GB Network Tester pings network devices to verify connections and IP addresses. It also automatically accesses DHCP hosts to obtain network information and identifies hubs, NICs, or Auto MDI/MDI-X devices. In addition, you can use the tester to identify the speed and capabilities of network drops.

    What's included:
  • Tester
  • (8) remotes
  • Tone tracer probe
  • 1-ft. RJ-45 to alligator clips cable
  • (2) 1-ft. RJ-45/RJ-45 cables
  • (2) 7.5-in. RJ-12 to RJ-12 cables jacks
  • Nylon case

  • Technical Specifications for LAN Solution GB Network Tester Kit:

    Cable Length (Min.) — Split pairs: 3 ft. (1 m);
    Single-ended cable test: 4 ft. (1.25 m)
    Environmental — Operating temperature: +32 to +122° F (0 to +50° C)
    Storage temperature — –20 to +176° F (-30 to +80° C)
    Length Measurement Range — 0 to 1500 ft. (0 to 457 m), CAT5/5e/6
    CE Approval — Yes
    Power — (4) AA batteries, not included
    Size — 1.8"H x 3.5"W x 7.3"D (4.5 x 8.9 x 18.6 cm)
    Weight — 0.88 lb (0.4 kg) with batteries


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for LAN Solution GB Network Tester Kit:

    Manuals

    • LAN Solution GB Network Tester Kit User Manual
      User Manual for TS5000A (1)
