RM545AL

Photo may show similar product

Other views

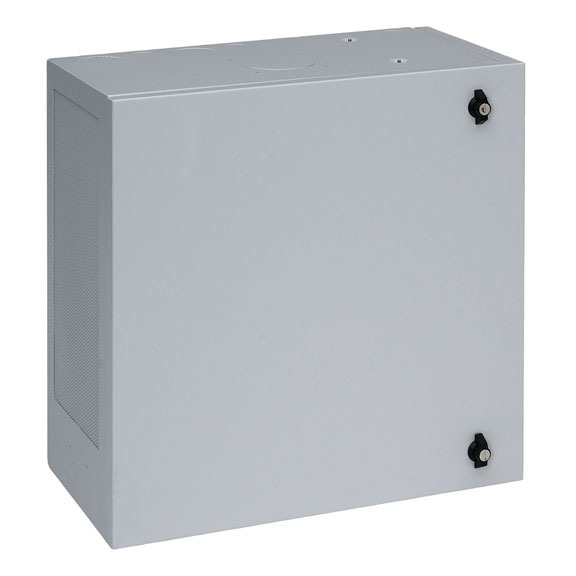

L-Box Wallmount Cabinet, 6U

Save on space without sacrificing on access.

RM545AL

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Offers unique access in high-density applications.
  • Hinged, L-shaped door provides full access to installed equipment.
  • Weight capacity of 75 pounds.
  • 6U high.
  • 10-32 tapped rails.
  • Spring-loaded, self-retained hinge pins for door removal.
  • 120-degree door opening.
  • Quarter-turn latches with key lock.
  • Guaranteed for life!


  • Description

    L-Box Wallmount Cabinet, 6U


    Quick Facts

  • Offers unique access in high-density applications.
  • Hinged, L-shaped door provides full access to installed equipment.
  • Weight capacity of 75 pounds.
  • 6U high.
  • 10-32 tapped rails.
  • Spring-loaded, self-retained hinge pins for door removal.
  • 120-degree door opening.
  • Quarter-turn latches with key lock.
  • Guaranteed for life!

  • Further Details

  • Knockouts for 4-inch fan on top and bottom of enclosure.
  • Two 3-inch knockouts on back for cables.
  • Multiple cable tie-down points on back of enclosure.
  • Includes (20) 10-32 mounting screws.
  • Includes (1) set of 10-32 tapped rails (6U).

  • The L-Box Wallmount Cabinet combines a low profile with convenient mounting and access. Protect your network equipment, patch panels, and connections with this convenient and versatile cabinet. The L-Box meets a variety of equipment mounting, storage, and protection needs, such as horizontal cable distribution, copper-to-fiber interface, cross connections, and consolidation point.


    Technical Specifications for L-Box Wallmount Cabinet, 6U:

    Construction 14-gauge mild steel
    Standards UL® listed, cUL, EIA 310-D
    Size 24"H x 24"W x 12"D (61 x 61 x 30.4 cm)
    Weight 53 lb. (24 kg)
    Weight Capacity 75 lb. (34.1 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
