AC643A

Photo may show similar product

Other views

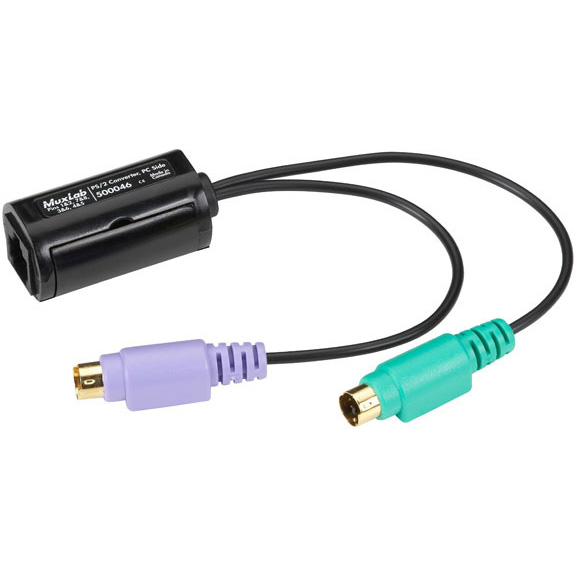

Keyboard/Mouse Extender Local Unit

Works with the remote unit to extend your keyboard and mouse signals up to 350 feet—without power!

AC643A

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Here's a simple, non-powered way to extend your keyboard and mouse signals. You'll need one local unit (AC643A) and one remote unit (AC644A).
  • Connect a PS/2® keyboard and mouse to a PC—up to 350 feet (106.7 m) away.
  • No power needed!
  • Guaranteed for life!


  • Description

    Keyboard/Mouse Extender Local Unit


    Quick Facts

  • Here's a simple, non-powered way to extend your keyboard and mouse signals. You'll need one local unit (AC643A) and one remote unit (AC644A).
  • Connect a PS/2® keyboard and mouse to a PC—up to 350 feet (106.7 m) away.
  • No power needed!
  • Guaranteed for life!

  • Further Details

  • Ideal for classrooms, digital signage, presentations, information systems, and more.
  • Use economical unshielded CAT5 cable.
  • Small and compact! No bulky power supplies needed.
  • Use in point-to-point configurations.
  • Easy to install.

  • Here's the easiest way you can extend your keyboard and mouse signals—without worrying about power hookups! With the Keyboard/Mouse Extender, you can set up your keyboard and mouse 350 feet (106.7 m) from your CPU and monitor or display.

    Make great presentations where the information is the focus, not you. When used in team presentations, you can control the keyboard and mouse at the back of a darkened room, while your partner highlights the display at the front of the room. If you're a teacher or training facilitator, you'll find these extenders work perfectly in the classroom. You can control the keyboard and mouse unobtrusively while the students focus solely on the display.

    You can also use the extenders to control digital signs in boardrooms or even auditoriums. They're ideal for any application where you need to set up your keyboard and mouse some distance from your CPU.

    You'll find these extenders extremely easy to use. Simply connect the local and remote units to your equipment. Then plug in your inexpensive unshielded CAT5 or higher cable. There are no power supplies to worry about!

    Use the extenders in pairs: one local unit and one remote unit. The local unit connects to a PS/2® keyboard and mouse. The remote units connects to the PC. A USB keyboard and mouse may be connected using a USB-to-PS/2® adapter.


    Technical Specifications for Keyboard/Mouse Extender Local Unit:

    Bandwidth DC to 1 MHz
    Cable Unshielded CAT5 or better
    Distance 350 ft. (106.7 m)
    Enclosure ABS fire-retardant plastic
    Pinning Configuration Reverse polarity sensitive; Use T568A or T568B straight-pinned wiring;
    Mouse: Ring: Pins 1 and 3; Tip: Pins 2 and 6;
    Keyboard: Ring: Pins 4 and 7; Tip: Pins 5 and 8
    Signals Mouse data, mouse clock, keyboard data, keyboard clock, Vcc, ground
    Transmission Transparent
    Temperature Operating: 32 to 131° F (0 to 55° C)
    CE Approval Yes
    Connectors PC: (2) 6-pin mini DIN M with 6" (15.2-cm) leads; Cable: (1) RJ-45
    Size 1.9"W x 1"Diameter (4.8 x 2.54 cm) with (2) 6" (15.2-cm) PS/2 cable leads
    Weight 0.1 lb. (<0.1 kg)
    NOTE: Must be used in pairs, which can be two AC643As, two AC644As, or one AC643A and one AC644A.

    This product works with:
  • Keyboard/Mouse Extender Remote Unit (AC644A)
  • VGA Source Balun (AC640A)
  • VGA Extender (AC555A)
  • CAT5 Solid-Conductor Cables (EYN737MS)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
