Premises Security > Access Control

click photo to enlarge

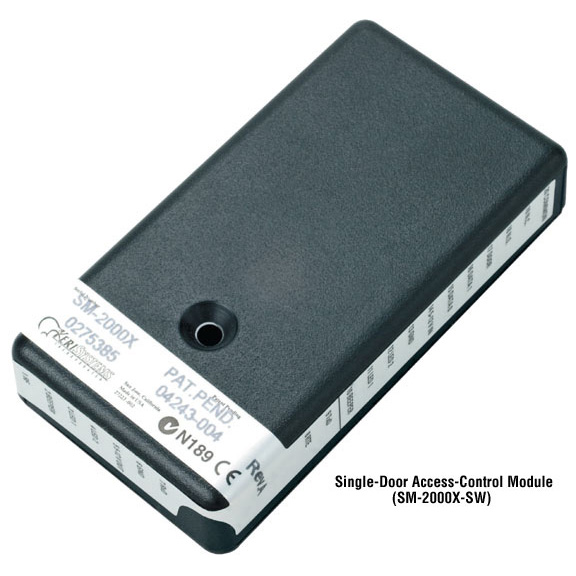

SM-2000X-SW

Photo may show similar product

Other views

Intelliprox 2000 Keyless Entry System Single-Door Access Control Module

Keyless entry for a single doorway and up to 500 users.

SM-2000X-SW


Three year Warranty

Product Highlights

  • Programmed through a simple remote or PC.
  • 26-bit Wiegand output provides overhead for expansion to a larger system.
  • Door controller features relay output for electric strike/lock.
  • Nonvolatile memory.
  • System features a “door held open” alarm.
  • Door-sense and request-to-exit input.

  • Description

    Intelliprox 2000 Keyless Entry System, Single-Door Access Control Module


    Quick Facts

  • Programmed through a simple remote or PC.
  • 26-bit Wiegand output provides overhead for expansion to a larger system.
  • Door controller features relay output for electric strike/lock.
  • Nonvolatile memory.
  • System features a “door held open” alarm.
  • Door-sense and request-to-exit input.

  • Further Details

    Here’s the perfect entry-level access control system. It’s economical, easy to install, and easy to manage, and it provides controlled access to a single doorway for up to 500 users. It’s perfect for installation in areas such as apartment buildings, day care centers, and small businesses.

    To install the complete IntelliProx 2000 Keyless Entry System, start with a Single-Door Access Control Module—the brains of the system. All access privileges and alarms can be programmed via PC into the module using the included database software. You can also program the privileges and alarms into the Hand-Held Programmer. It works much like a TV remote and makes it easy to enroll and void proximity cards.

    Next, you’ll want a Proximity Reader (IP-2003X) to read access cards. Select the reader with the 4" range for applications where users can walk right up to the door and hold the card up to the reader.

    When you need to expand, the IntelliProx 2000 Keyless Entry System is ready. It supports standard 26-bit Wiegand output, enabling you to use it as part of a larger system. If the main system goes down, the IntelliProx reverts automatically to operating as a standalone unit.


    Technical Specifications for Intelliprox 2000 Keyless Entry System Single-Door Access Control Module:

    Door Held Open Time — 7 seconds
    Door Unlock Time — 7 seconds
    Frequency — 125 kHz/62.5 kHz
    Operating Temperature — -40 to +149° F (-40 to +65° C)
    Relay Contact Rating — 1 A at 30 V DC or AC
    Users Supported (Maximum) — 500
    CE Approval — Yes
    Size — 3.5"H x 1.9"W x 1.1"D (8.9 x 4.8 x 2.8 cm)
    Warranty — 3 years
    These products work with:
    • IntelliProx 2000 Hand-Held Programmer
    • IntelliProx 2000 Proximity Reader
    • IntelliProx 2000 Cable
    • IntelliProx 2000 Light Proximity Card
    • IntelliProx 2000 MultiTechnology Proximity Card
    • IntelliProx 2000 MultiTechnology Proximity Card with Magnetic Stripe
    • IntelliProx 2000 Proximity Key Tag
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Intelliprox 2000 Keyless Entry System Single-Door Access Control Module:


    Connect your Intelliprox 2000 Keyless Entry System Single-Door Access Control Module with:
