Intelli-Pass Biometric Access Control, Triad

Eliminates the need for keys and access cards.

Enhanced biometric security with dual-factor authentication.

Can use any combination of PIN, finger scan, or RFID for entry.

Lock and network communications originate from a secure area.

Full audit trail provides detailed entry logs.

Simplify access by using logical groups for users and doors.

Timed access controls are great for cleaning crews or temporary contractors.

Anti-spoof and anti-tamper circuitry.

Integrates with fire alarm and environmental monitoring systems.

Multiple doors may be controlled and managed through optional management software.

Battery backup ensures access during power failures.

The Intelli-Pass™ gives you a complete, secure door-access system. Use it to protect your doors from unauthorized access, notify you when a door is propped open, and get out of the building fast in case of a fire. It works with magnetic locks and electric strike locks to provide fail-safe or fail-secure door lock operation. A fail-safe lock requires power to keep it locked. A fail-secure lock stays locked even without power but requires power to open it.

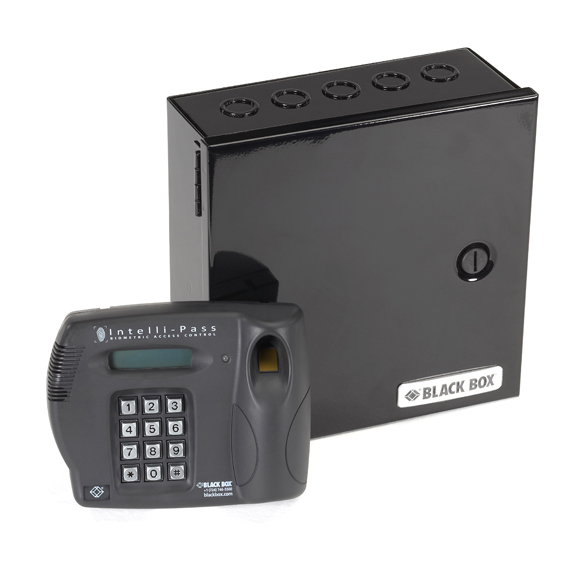

The Intelli-Pass consists of two components: a reader unit and a controller unit. The reader unit has two parts (a front section and a back section), and mounts on a wall next to the door you want to control. You can place the controller unit above a false ceiling or high up out of general reach since you will not need to access it once you install the Intell-Pass system.

Intelli-Pass comes in three versions:
The Standalone Intelli-Pass (SAC510SA) operates independently of a network.
The Networked Intelli-Pass (SAC510NA) operates across your Ethernet network and requires management software.
The Intelli-Pass Triad (SAC530NA) featured here is identical to the Networked Intelli-Pass but has added RFID capability.

Tight security.
A unique two-part architecture makes Intelli-Pass the ultimate in secure access control. The reader and controller units are separate, so there are no connections in the reader unit exposed to the outside. Because all the mechanics for opening the secured door are within the protected area, hackers can’t cut the wires or spoof the signals to open the door. Plus, proprietary encryption protects communications between the reader and the controller, further enhancing security.

The duress feature allows a person forced to enter a room against his/her will to activate a silent alarm. Even if the power fails, Intelli-Pass is prepared with a backup battery that provides up to eight hours of limited use.

Extensive management features.
The Intelli-Pass has many features that make managing door access easy. A full audit trail means you can keep track of who is coming and going and when. The time-banding feature enables you to determine when individuals can be granted access to rooms or facilities. You can set the Intelli-Pass to deny access outside of approved time slots. You can also set up temporary workers with a predefined length of access; the system automatically deactivates their access after the period has expired.

You can group users and doors together to make management simple. For example, members of a department can have access to some doors but not others. Users can easily be deleted in just a few seconds.

Fingerprint identity simplifies administration.
Enrolling users couldn’t be easier. When a person is entered into the Intelli-Pass system, the system creates a multipoint schematic of the user’s biometric fingerprint profile, which it stores as a fingerprint template. Each time that user seeks access to a secure area, that template will be matched to the live fingerprint. The system does not store fingerprint images, and the biometric template cannot be used to create an image of the original print.

The multistage fingerprint verification goes beyond pattern recognition. The Intelli-Pass actually looks for “life” in the finger and rejects pictures of or silicon imprints of a finger. The system has an extremely high level of accuracy and reliability (EER <0.1%).

Legitimate users gain quick access to secure areas. All they need to do is enter their PIN and place their finger on the reader. Authentication takes less than one second.

If the fingerprint matches the template perfectly, Intelli-Pass unlocks the door and logs the date and time of entry.

Intelli-Pass can also be set to operate using only a PIN or only a finger scan. In fact, the Intelli-Pass Triad can operate using any combination of PIN, finger scan, and RFID for identification.

Standalone access control for isolated installations and ultimate security.
When your installation doesn’t require centralized control of multiple access points or when ultra-high security prevents any network connections, select the standalone Intelli-Pass (SAC510SA). In this case, all programming—including user enrollment—is performed via the reader’s keypad and LCD display via simple-to-use menus.


Networked access control for easy administration from anywhere.
The Intelli-Pass Biometric Access Control networked model (SAC510NA) enables you to control and monitor hundreds or thousands of doors from a central location.

Controller units attach to their site’s computer network or private network using standard IP addresses and communicate with central control stations with encrypted TCP/IP. User enrollment can occur at one central location, using the Intelli-Pass™ Management and Enrollment Software (SAC500MSA). The software enables you to easily manage and control multiple Intelli-Pass units installed on multiple doors. Instead of having to enroll users on each door separately, you can enroll once, then use that information for each relevant door. Additionally, the software makes the creation of user groups and door access zones a much easier process. You can set up and configure each networked unit, and upload fingerprint templates to any networked units to grant user access to them.

Audit trails are automatically downloaded and stored in the central database, which is included in the software. You can view individual user and door logs as needed.

If your network fails, the Intelli-Pass continues to operate normally because network communication is not required for fingerprint verification. The system saves all logging activity and uploads it to a database once the network connection is restored.

Three-way access control for more versatility.
This Intelli-Pass Triad model offers all the features of the networked model plus an RFID reader that enables you to use an RFID card as a third form of identification.

Because the Intelli-Pass Triad can use any combination of identification methods, you can vary the security level at different entrances, requiring, for instance, an RFID card only at the building entrance and a PIN plus finger scan at the data center entrance.

Intelli-Pass Triad is compatible with any Wiegand RFID cards. Two blank cards compatible with any RFID card printer are included.

So many uses.
Applications for the Intelli-Pass include communications closets, data centers, command centers, server rooms, main building entrances, motor pools, network operations centers, hospitals, medical records rooms, raw material storage, remote buildings, research labs, SCIFs, munitions facilities, arms rooms, security gates, and more!

What you’ll need:
The first step is to choose a networked or standalone system. If you choose a networked system, you’ll need to select your software package based on the number of doors you wish to secure.

If your doors don‘t already have electric strikes, we can help you select the correct Electric-Strike or Mag-Locks for the specific types of doors in your facility. Optional on-site installation and/or configuration services are available—call our FREE Tech Support hotline at 724-746-5500 to get started.

What’s included:

Reader unit (2 pieces)

Controller unit

Installation template and screws

18.5-VDC power supply

U.S. power cord

User’s guide (printed)

CD containing installation manual, software manual, management software (trial)

RFID reader

(2) blank RFID cards

This product works with:

Management & Enrollment Software Additional User License with Scanner (SAC501MSA)

Replacement Enrollment Scanner (SAC506SCA)

Push to Exit Switch, Green Backlit (MSX6100)

Surface-Mount Prop Door Magnetic Sensor (CNT100)

Recessed-Mount Prop Door Magnetic Sensor (CNT200)

Outdoor Weather Box (SAC509BXA)

Compact (HES 5000) Electric Strike (5000-12/24D)

Concealed (HES 5900) Electric Strike (5900-12/24D-591-630)

Premium (HES 1006) Electric Strike (1006-F-12/24D-630)

Surface-Mount (HES 9500) Electric Strike (9500-12/24D-630)

Intelli-Pass Premium Warranty and Support Package, 1 Year per Door (SAC510XWA-1)

Intelli-Pass Premium Warranty and Support Package, 3 Years per Door (SAC510XWA-3)
(NOTE: Premium Warranty and Support Packages include an extended hardware warranty, express replacement, remote diagnostic support, and an on-site service call [if necessary].)
Questions? Contact our FREE Tech Support.
