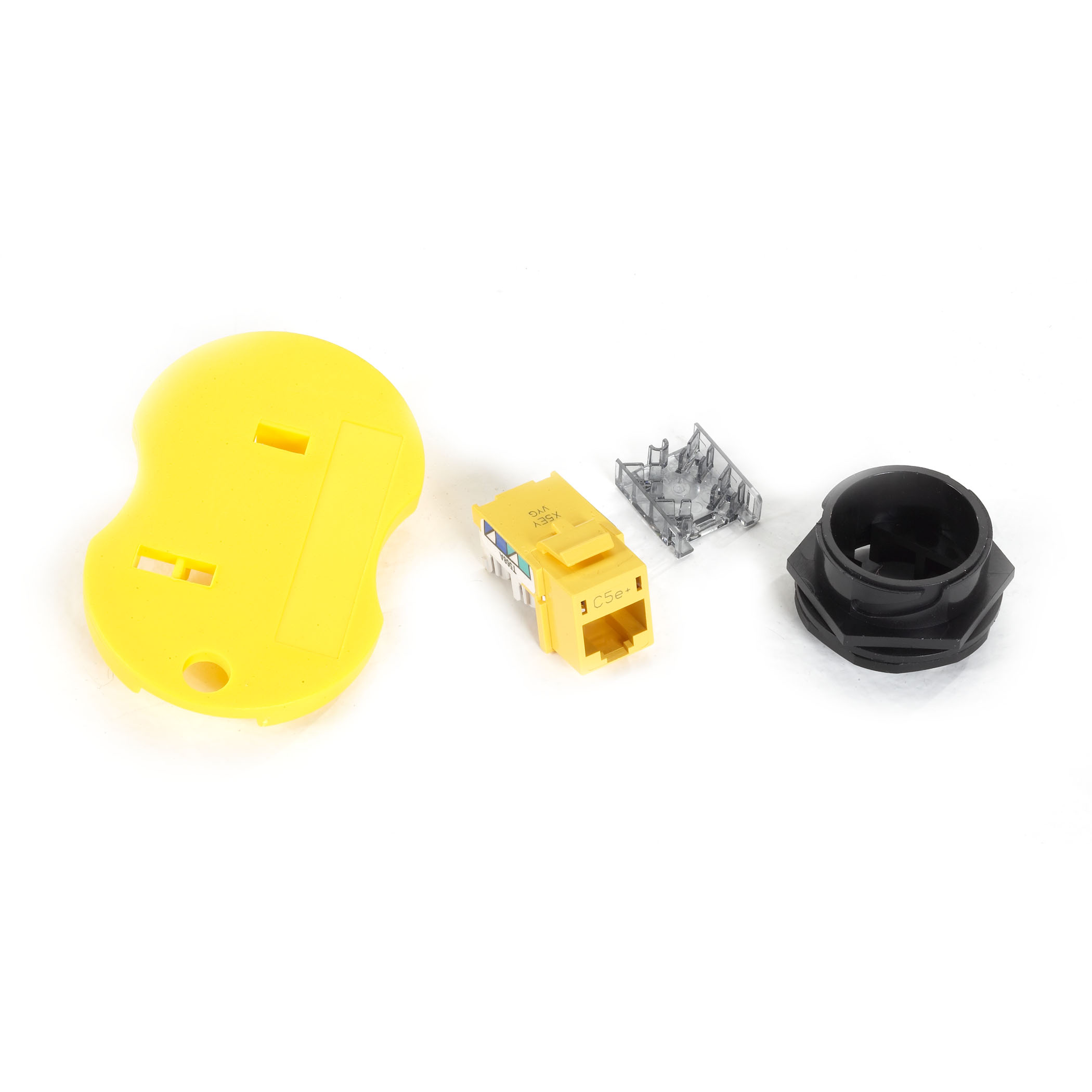

Industrial Panel-Mount Connector Housing, CAT5e

Shields copper terminations from mechanical vibration and corrosion.

FMI002

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Install in our Industrial Wallplates and our Secure NEMA 3R Box.


  • Description

    Industrial Panel-Mount Connector Housings, CAT5e


    Quick Facts

  • Install in our Industrial Wallplates and our Secure NEMA 3R Box.

  • Further Details

  • Available for CAT6 or CAT5e applications.
  • Shielded CAT5e Housing for areas highly susceptible to noise.
  • For coax CATV applications, order the F-Type model.

  • Built to withstand dust, moisture, and dramatic drops in temperature, the Industrial Connector is a robust, UV-resistant housing that shields copper terminations from mechanical vibration and corrosion caused by common chemicals, cleaning agents, and oils. It's ideal for use anywhere the demands of your application exceed the capabilities of ordinary RJ-45 connectors.


    Technical Specifications for Industrial Panel-Mount Connector Housing, CAT5e:

    Compliance UL® Listed, cUL listed, CSA
    Environmental Protection Ingress Protection: IP67 (dust), IP66 (water);
    Corrosion protection: Resistant to most common chemicals, cleaning agents, and oil;
    UV: UV resistant;
    Temperature range: +14 to +158° F (-10 to +70° C)
    Housing PBT, UL® 94V-0
    IDC 110 Contacts Phosphor bronze with 100 microinch tin lead 60/40 plating over nickel underplating
    Mating Cycles 750 minimum
    Mechanical Vibration Frequency range: 10–500 Hz;
    Acceleration: 5 g
    Nose Contacts Beryllium copper with a minimum of 50 micro-inch gold plating over nickel underplating
    These products work with:
  • In-Line CAT5e Industrial Coupler Connector (FMI005)
  • Secure Industrial NEMA 3R Box with Slide-Up Cover (WPI055)
  • Industrial Panel-Mount Connector Cover (FMI010)
  • Stainless Industrial Wallplates (WPI001)
  • CAT6 Industrial Patch Cords (EVNSLI05)
  • CAT5e Industrial Patch Cords (EVNSLI01)
