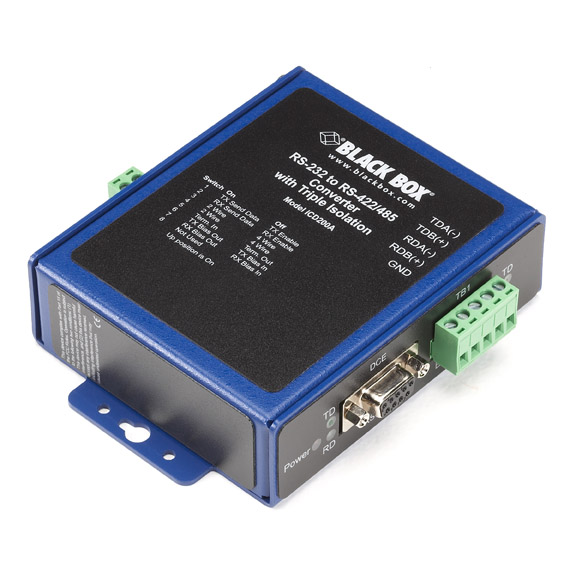

Industrial Opto-Isolated RS-232 to RS-422/485 Converter

Convert RS-232 data signals to RS-422/485 signals in heavy industrial areas.

ICD200A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • A heavy-duty, industrial-strength converter.
  • Converts RS-232 to RS-422/485, extending signals up to 4000 feet (121.9 m).
  • Rugged, IP30-rated metal case for panel mounting.

  • Description

    Industrial Opto-Isolated RS-232 to RS-422/485 Converter


    Quick Facts

  • A heavy-duty, industrial-strength converter.
  • Converts RS-232 to RS-422/485, extending signals up to 4000 feet (121.9 m).
  • Rugged, IP30-rated metal case for panel mounting.

  • Further Details

  • Tolerates temperatures ranging from -30 to +185º F (-34 to +85º C).
  • 2G shock and 3G vibration protection.
  • Boasts 2-kV triple isolation for safeguarding data and equipment.
  • DB9 port on the RS-232 side and a removable terminal block for RS-422/485 links.
  • Data rates up to 115.2 kbps.
  • Modbus® and ASCII/RTU compatible.
  • DIN rail mountable with optional adapter.

    This heavy-duty Industrial Opto-Isolated RS-232 to RS-422/485 Converter makes it easy to convert unbalanced, full- or half-duplex RS-232 to balanced RS-422/485 while extending signals up to 4000 feet (121.9 m).

    Encased in an IP30-rated enclosure, the converter's been put through some of the most exacting tests in the industry. The high-grade converter meets the requirements of two standards that make it suitable for electrical substation installations—IEC 61850-3 and IEEE 1613—specifications that are more stringent than NEMA TS1/TS2 requirements for transportation applications.

    Three levels of isolation.
    The Industrial Opto-Isolated RS-232 to RS-422/485 Converter features 2-kV triple isolation, protecting equipment as well as data from rogue currents and ground loops. It provides powerful isolation on both data ports, and with additional isolation on the converter’s power supply circuits, you’re given a third degree of protection for your expensive components.

    This level of protection helps prevent stray currents from disrupting important data communications, such as those in factory, engineering, military, defense industry, or utility applications.

    By isolating voltage anomalies, you stand a much better chance of preventing a surge from shutting down an assembly line—or your entire plant.

    Use in point-to-point or multipoint applications.
    You’ll need two units for a standard point-to-point application. But you can also easily set up a multidrop configuration, depending on the mode. The box converts RS-232 format data signals to RS-422 for increased range or to RS-485 for increased range and multidrop capability.

    For DCE connections on the RS-232 side, the converter has a standard DB9 port. For RS-422/RS-485 side links, it has a removal terminal block. The Industrial Opto-Isolated RS-232 to RS-422/485 Converter supports serial Modbus® connections for both ASCII or RTU (remote terminal unit) formats.

    Simple to configure and set up.
    RS-422/RS-485 4-wire and RS-485 2-wire DIP switches on the Industrial Opto-Isolated RS-232 to RS-422/485 Converter enable you to configure it for point-to-point or multi-drop operation.

    For additional ease of setup, bit-wise-enabled circuitry detects the data rate automatically—you don't have to set a DIP switch. An automatic send data control feature enables an RS-485 serial port to be used in Windows® applications where you have no control over the handshake lines.

    In addition, the converter has built-in switchable bias resistors (1.2 kilohm) on transmit and receive ports, as well as switchable termination (120 ohm).

    NOTE: At minimum, must be used in pairs. Power supply not included.



  • Technical Specifications for Industrial Opto-Isolated RS-232 to RS-422/485 Converter:

    Approvals — IEC 61850-3, IEEE 1613
    Data Rates — 1.2 –115.2 kbps
    Distance (Maximum) — 4000 ft. (121.9 m)
    Enclosure — IP30-rated metal, panelmount
    Operating Environment — Temperature: -30 to +185º F (-34 to +85º C);
    Humidity: 0 to 95%, noncondensing
    CE Approval — Yes
    RoHS — Yes
    Connectors — RS-232: (1) DB9 F;
    RS-422/RS-485: (1) 5-postion terminal block (removable)
    Indicators — LEDs: (1) Power, (1) TD (transmit data) and (1) RD (receive data) on both the RS-232 and RS-422/RS-485 connectors
    Power — From an external power supply (not included*);
    Input: 10–48 VDC (56 VDC maximum) on 2-position terminal block (removable);
    Consumption: 0.5 W typical (1.9 W with termination)
    Size — 1.3"H x 3.7"W x 5.2"D (3.3 x 9.4 x 13.2 cm)
    Weight — 0.5 lb. (0.2 kg)

    * See our PS1003 power supply, available separately.


    NOTE: At minimum, must be used in pairs. Power supply not included.

    This product works with:
  • 120-VAC/12-VDC Wallmount Power Supply with Bare Leads (PS1003)
  • DIN Rail Adapter (ICD11MNT)
