Networking > Industrial

click photo to enlarge

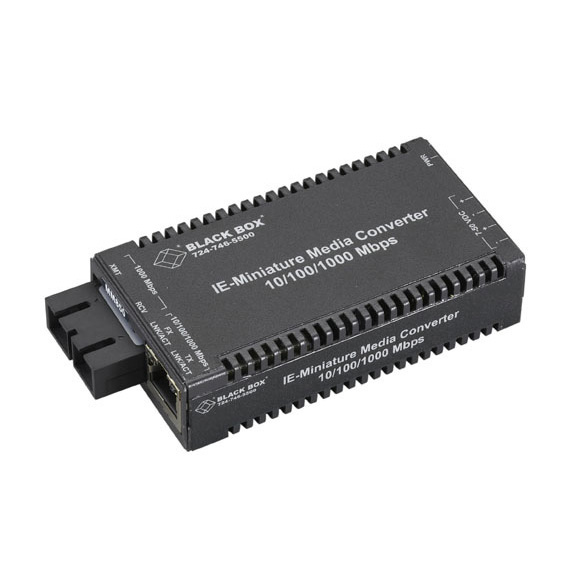

LGC320A-R2

Photo may show similar product

Other views

  • LGC320A-R2
  • LGC320A-R2
  • LGC320A-R2

Industrial MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Fiber Duplex, Multimode, 850-nm, 300 m

Get Gigabit speeds in a robust industrial media converter.

LGC320A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Works over duplex multimode fiber cable.
  • Extended temperature range when used with DC power.
  • RoHS compliant.
  • Can be used as a standalone device or DIN rail mounted.


    • Description

    Industrial MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Fiber Duplex, Multimode, 850-nm, 300 m


    Quick Facts

  • Works over duplex multimode fiber cable.
  • Extended temperature range when used with DC power.
  • RoHS compliant.
  • Can be used as a standalone device or DIN rail mounted.

    • Further Details

  • The 10-/100-/1000-Mbps copper port autonegotiates speed.

    • The Black Box® Industrial MultiPower Miniature Media Converter seamlessly and transparently converts 10-/100-/1000-Mbps copper to 1000-Mbps duplex fiber. Because it is a Layer 2 media converter, it automatically senses and adapts to speed on the copper side for truly plug-and-play operation.

    Use the converter to extend your network over fiber at distances up to 300 meters (984.3 ft.).

    The Industrial MultiPower Miniature Media Converter is perfectly adapted to industrial environments. The converter can be powered conventionally with an AC adapter or powered through a DC terminal block. The terminal block features a pair of input and a pair of output terminals, so you can easily cascade power in DIN Rail applications.

    When used with DC power, the converter supports an extended temperature range of -31 to +158° F (-35 to +70° C).

    The compact metal chassis is so small, you can tuck it nearly anywhere—it even includes VELCRO® strips for surface mounting so you can mount it out of the way on a wall or even under a shelf. It also comes with DIN clips for standard DIN rail mounting.


    Technical Specifications for Industrial MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Fiber Duplex, Multimode, 850-nm, 300 m:

    Data Rate — Copper: 10/100/1000 Mbps;
    Fiber: 1000 Mbps
    Environmental — Operating temperature: DC configuration: -31 to +158° F (-35 to +70° C), AC configuration: +32 to +122° F (0 to +50° C);
    Storage temperature: -49 to +185° F (-45 to +85° C);
    Humidity: 5 to 95%, noncondensing
    Standards — IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
    CE Approval — Yes
    Connectors — (1) RJ-45, (1) SC, (1) AC power, (1) 4-terminal DC power
    Indicators — LEDs: (1) FX LNK/ACT, (1) TX LNK/ACT
    Power — Dual power: AC: 100–240 VAC external power supply;
    DC: 7–50 VDC at 2.5 watts, chassis grounded to negative terminal
    Size — 0.8"H x 1.8"W x 3.4"D (2 x 4.6 x 8.6 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Industrial MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Fiber Duplex, Multimode, 850-nm, 300 m:

    Manuals

    • Industrial MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Fiber Duplex
      (Version 1)
      httpftp

    Product Data Sheets


    Connect your Industrial MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Fiber Duplex, Multimode, 850-nm, 300 m with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A SIX YEAR WARRANTY warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $66.30

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $132.59

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$


    Add to Cart

    Price: $662.95
