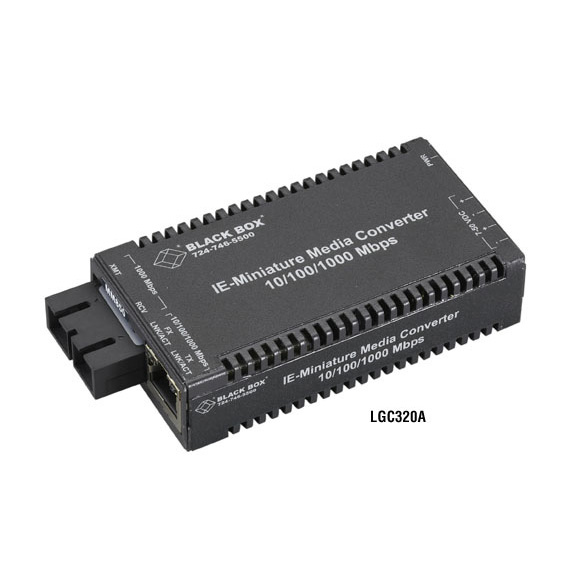

LGC320A-NPS

Photo may show similar product

Other views

Industrial MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Fiber Duplex, Multimode, 850-nm, 300 m, No Power Supply

Get Gigabit speeds in a robust industrial media converter.

LGC320A-NPS

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Works over duplex multimode or single-mode fiber cable.
  • Extended temperature range when used with DC power.
  • RoHS compliant.
  • Can be used as a standalone device or DIN rail mounted.


  • Further Details

  • The 10-/100-/1000-Mbps copper port auto-negotiates speed.

  • MultiPower Miniature Media Converters seamlessly and transparently convert 10-/100-/1000-Mbps copper to 1000-Mbps duplex fiber. Because they're Layer 2 media converters, they automatically sense and adapt to speed on the copper side for truly plug-and-play operation.

    Use the converters to extend your network over fiber at distances ranging from 300 meters (984.3 ft.) on multimode cable to as much as 70 kilometers (43.4 mi.) on single-mode cable.

    Multi-Power Miniature Media Converters are perfectly adapted to industrial environments. The converters can be powered conventionally with an AC adapter or powered through a DC terminal block. The terminal block features a pair of input and a pair of output terminals, so you can easily cascade power in DIN Rail applications.

    When used with DC power, the converters support an extended temperature range of -31 to +158° F (-35 to +70° C), making them suitable for a wide range of industrial applications.

    These converters are perfectly adapted to industrial environments. The compact metal chassis is so small, you can tuck it nearly anywhere—it even includes VELCRO® strips for surface mounting so you can mount it out of the way on a wall or even under a shelf. For industrial applications, these converters also come with DIN clips for standard DIN rail mounting.

    Data Rate Copper: 10/100/1000 Mbps;
    Fiber: 1000 Mbps
    Environmental Operating temperature: DC configuration: -31 to +158°F (-35 to +70°C), AC configuration: +32 to +122°F (0 to +50°C);
    Storage temperature: -49 to +185°F (-45 to +85°C);
    Humidity: 5 to 95%, noncondensing
    Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
    CE Approval Yes
    Connectors (1) RJ-45, (1) SC, (1) AC power, (1) 4-terminal DC power
    Indicators LEDs: (1) FX LNK/ACT, (1) TX LNK/ACT
    Power Dual power: AC: 100-240 VAC external power supply;
    DC: 7-50 VDC at 2.5 watts, chassis grounded to negative terminal
    Size 0.8"H x 1.8"W x 3.4"D (2 x 4.6 x 8.6 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Manuals

    • Industrial MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Fiber Duplex
      (Version 1)

    Product Data Sheets


    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The Industrial MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Fiber Duplex, Multimode, 850-nm, 300 m, No Power Supply comes with a standard 6 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Industrial MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Fiber Duplex, Multimode, 850-nm, 300 m LGC320A-R2 $750.40

    Industrial MultiPower Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Duplex Single-Mode Fiber, 10 km, No Power Supply LGC321A-NPS $816.05

    Industrial MultiPower Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Duplex Single-Mode Fiber, 10 km LGC321A-R2 $846.35

    Industrial MultiPower Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Duplex Single-Mode Fiber, 40 km LGC322A-R2 $967.55

    Industrial MultiPower Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Duplex Single-Mode Fiber, 70 km LGC323A-R2 $1,049.35



    Add to Cart

    Price: $723.15

    Quantity Available: 15

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.5 lbs.
    HxWxD: 1.5 x 5.25 x 7.25 in.
