Networking > Industrial

click photo to enlarge

Other views

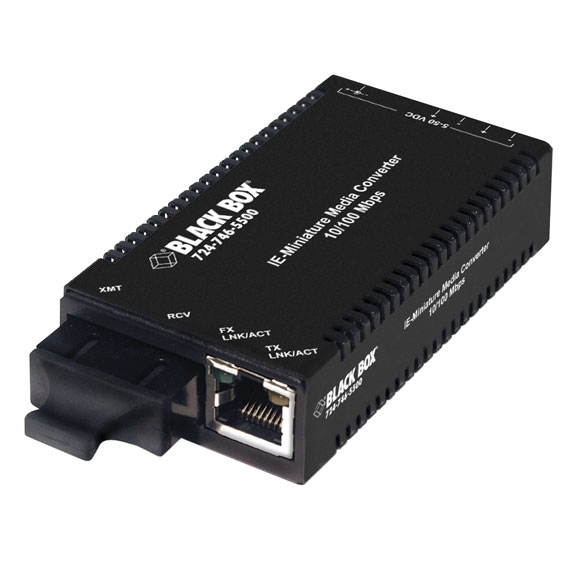

Industrial MultiPower Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 1310-nm TX/1550-nm RX, 60 km

Extend your network up to 60 kilometers on one strand of fiber.

LIC056A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

Power up one of four ways: with AC or DC power, via a PC’s USB port, or using Power over Ethernet (PoE).

Convert 10-/100-Mbps copper to single-strand 100-Mbps fiber, autonegotiating for speed on the copper side.

Extends your network up to 60 kilometers (37.3 mi.) over a single strand of single-mode fiber when used together with the LIC057A-R2.

Description

Industrial MultiPower Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 1310-nm TX/1550-nm RX, 60 km

Quick Facts

Power up one of four ways: with AC or DC power, via a PC’s USB port, or using Power over Ethernet (PoE).

Convert 10-/100-Mbps copper to single-strand 100-Mbps fiber, autonegotiating for speed on the copper side.

Extends your network up to 60 kilometers (37.3 mi.) over a single strand of single-mode fiber when used together with the LIC057A-R2.

Further Details

Operates in temperatures from -13 to +158º F.

Includes clips for mounting on DIN rails.

This single-mode, single-strand media converter is part of the Miniature MultiPower Media Converter family. These ultra-compact, plug-and-play converters offer power options that include support for the IEEE 802.3af Power over Ethernet (PoE) standard. Plus, Industrial MultiPower Media Converters are designed for use in harsh industrial environments.

In all, there are four different ways to power the converter: with its AC adapter, using 5–50-VDC terminal block power, via an optional USB Power Adapter Cable, which you plug into your PC’s USB port and is sold separately (LHC021A), or over a PoE link.

You can even use multiple power options at the same time to provide maximum redundancy and ensure that your mission-critical applications remain up and running. For instance, you can connect a converter to power sourcing equipment (PSE) for PoE while also using AC adapter power, DC terminal block power, and USB bus power. Then, if any one of these power sources fails, the other sources will continue to supply power to the converter seamlessly.

You can also connect a PSE switch to an uninterruptible power supply to ensure that the switch and each connected media converter always have power.

The converter comes with a DIN clip for DIN rail mounting. When installing multiple Industrial MultiPower Media Converters on a DIN rail, use one DC input source, then cascade from one DC block to the next until you reach the maximum current available (for an example, click on “Application Diagrams”).

Technical Specifications for Industrial MultiPower Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 1310-nm TX/1550-nm RX, 60 km:

Cable Requirements — Single-mode fiber: 9-/125-µm single-strand
Mounting — With included DIN clip on DIN-35 rails
Operating Environment — Temperature: Using AC adapter: +32 to +122º F (0 to +50° C);
Using other available power sources: -13 to +158º F (-25 to +70° C);
Humidity: 5 to 95% noncondensing
Switching Engine — Store-and-forward; autonegotiating; broadcast storm protection; supports oversized packets up to 1916 bytes
Connectors — (1) SC, (1) RJ-45
Power — From the included external 100–240-VAC, 50–60-Hz adapter;
Via the terminal block: 5 to 50 VDC;
Via the USB Power Adapter Cable (LHC021A) connected to a computer’s USB port;
From a PSE over a Power over Ethernet link
Size — 0.8"H x 1.8"W x 3.4"D (2 x 4.6 x 8.6 cm)

NOTE: Must be used in matched pairs—use LIC052A with LIC053A; use LIC054A-R2 with LIC055A-R2; and use LIC056A-R2 with LIC057A-R2.

These products work with:

Miniature Media Converter and Industrial Multipower Media Converter USB Power Adapter Cable

Questions? Contact our FREE Tech Support.

NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

Resources for Industrial MultiPower Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 1310-nm TX/1550-nm RX, 60 km:

Manuals

Industrial MultiPower Media Converters User Manual
User Manual for the LIC022A-R2, LIC023A-R2, LIC024A-R2, LIC025A-R2, LIC026A-R2, LIC027A-R2, LIC052A-R2, LIC053A-R2, LIC054A-R2, LIC055A-R2, LIC056A-R2, and LIC057A-R2 (Version 2)

Product Data Sheets

Miniature Media Converters Industrial MultiPower Media Converters

Black Box Explains

Connect your Industrial MultiPower Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 1310-nm TX/1550-nm RX, 60 km with:

Miniature Media Converter and Industrial Multipower Media Converter USB Power Adapter Cable

» more info

Standard Manufacturer's Warranty

A SIX YEAR WARRANTY warranty is included.

Extended Two years for one Warranty Available

Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
Cost: $66.90

Extended Three years for two Warranty Available

Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
Cost: $133.79

Double Diamond™ Warranty (Standard)

Coverage:

The most complete product warranty exclusively from Black Box

The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

Worry-Free Purchases

If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

Coverage

Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

Lifetime Guarantees

Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

Fast Service

During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

Extra Coverage

Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

No-Risk 45-Day Return Policy

If it's not right, send it back.
(Excludes custom built products)

* Certain products may not be eligible.

Warranty Compared

	Black Box® Double Diamond™ Warranty	The Competition
Warranty Length	One Year to Lifetime, Depending on the Product.	Read the fine print.
Guaranteed for Life!	Black Box® Brand Copper Cables, Manual Switches and More!	No.
Accidental Damage	100% Covered!	No.
Water Damage	100% Covered!	No.
Power Surges	100% Covered!	No.
Warranty Replacements	No Questions Asked!	Forget It.
Tech Support Hotline	100% FREE!	$$$


Product	SKU	Price	Quantity
Industrial MultiPower Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 1310-nm TX/1550-nm RX, 60 km	LIC056A-R2	$668.95
Industrial MultiPower Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 1310-nm TX/1550-nm RX, 20 km, SC	LIC052A-R2	$432.95
Industrial MultiPower Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 1550-nm TX/1310-nm RX, 20 km, SC	LIC053A-R2	$462.95
Industrial MultiPower Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 1310-nm TX/1550-nm RX, 40 km	LIC054A-R2	$462.95
Industrial MultiPower Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 1550-nm TX/1310-nm RX, 40 km	LIC055A-R2	$576.95
Industrial MultiPower Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 1550-nm TX/1310-nm RX, 60 km	LIC057A-R2	$813.95
