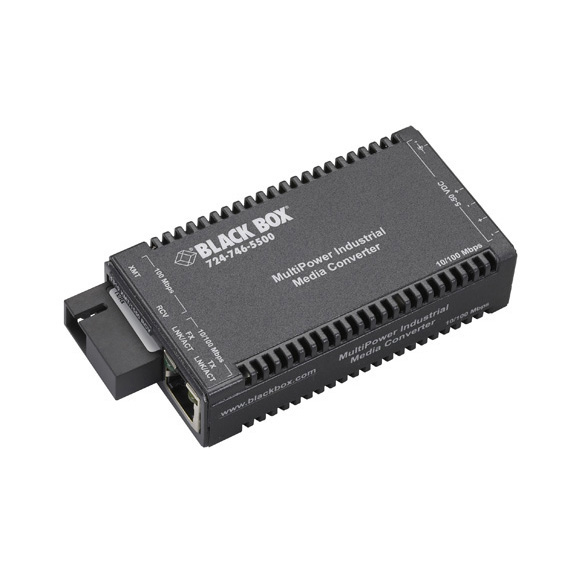

LIC052A-R2

Photo may show similar product

Other views

Industrial MultiPower Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 1310-nm TX/1550-nm RX, 20 km, SC

Convert copper to single-strand 100-Mbps fiber, autonegotiating for speed on the copper side.

LIC052A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Power up one of four ways: with AC or DC power, via a PC's USB port, or using Power over Ethernet (PoE).
  • Converts 10-/100-Mbps copper to single-strand 100-Mbps fiber, autonegotiating for speed on the copper side.

  • Description

    Industrial MultiPower Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 1310-nm TX/1550-nm RX, 20 km, SC


    Quick Facts

  • Power up one of four ways: with AC or DC power, via a PC's USB port, or using Power over Ethernet (PoE).
  • Converts 10-/100-Mbps copper to single-strand 100-Mbps fiber, autonegotiating for speed on the copper side.

  • Further Details

  • Operates in temperatures from -13 to +158º F.
  • Includes clips for mounting on DIN rails.

    This ultra-compact, plug-and-play converter offers multiple power options, including support for the IEEE 802.3af Power over Ethernet (PoE) standard. Plus, the Industrial MultiPower Media Converter is designed for use in harsh industrial environments.

    This converter works together with the LIC053A-R2 to send and receive data over a single fiber strand.

    In all, there are four different ways to power the converter: with its AC adapter, using 5–50-VDC terminal block power, via an optional USB Power Adapter Cable (which you plug into your PC's USB port and is sold separately), or over a PoE link.

    You can even use multiple power options at the same time to provide maximum redundancy and ensure that your mission-critical applications remain up and running. For instance, you can connect a converter to power sourcing equipment (PSE) for PoE while also using AC adapter power, DC terminal block power, and USB bus power. Then, if any one of these power sources fails, the other sources will continue to supply power to the converter seamlessly.

    You can also connect a PSE switch to an uninterruptible power supply to ensure that the switch and each connected media converter always have power.

    The converter comes with DIN clips, so you can attach it to a DIN rail. When installing multiple Industrial MultiPower Media Converters on a DIN rail, use one DC input source, then cascade from one DC block to the next until you reach the maximum current available. NOTE: The included AC power adapter doesn't work with the earlier version of this converter (LIC052A).
    NOTE: Must be used in matched pairs—use LIC052A with LIC053A.

    NOTE: The included AC power adapter doesn't work with the earlier version of this converter (LIC052A).

    This product works with:
  • USB Power Adapter Cable (LHC021A)
  • PowerTray (LHC018A-AC-R2)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for Industrial MultiPower Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 1310-nm TX/1550-nm RX, 20 km, SC:

    Cable Requirements Single-mode fiber: 9-/125-µm duplex or single-strand
    Mounting With included DIN clip on DIN-35 rails
    Operating Environment Temperature: Using AC adapter: +32 to +122° F (0 to +50° C);
    Using other available power sources: -13 to +158° F (-25 to +70° C);
    Humidity: 5 to 95% noncondensing
    Switching Engine Store-and-forward; autonegotiating; broadcast storm protection; supports oversized packets up to 1916 bytes
    Connectors (1) SC
    Power From the included external 100-240-VAC, 50-60-Hz adapter;
    Via the terminal block: 5 to 50 VDC;
    Via the USB Power Adapter Cable (LHC021A) connected to a computer's USB port;
    From a PSE over a Power over Ethernet link
    Size 0.8"H x 1.8"W x 3.4"D (2 x 4.6 x 8.6 cm)

    NOTE: Must be used in matched pairs—use LIC052A with LIC053A.

    NOTE: The included AC power adapter doesn't work with the earlier version of this converter (LIC052A).

    This product works with:
  • USB Power Adapter Cable (LHC021A)
  • PowerTray (LHC018A-AC-R2)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Industrial MultiPower Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 1310-nm TX/1550-nm RX, 20 km, SC:

    Manuals

    • Industrial MultiPower Media Converters User Manual
      User Manual for the LIC022A-R2, LIC023A-R2, LIC024A-R2, LIC025A-R2, LIC026A-R2, LIC027A-R2, LIC052A-R2, LIC053A-R2, LIC054A-R2, LIC055A-R2, LIC056A-R2, and LIC057A-R2 (Version 2)
