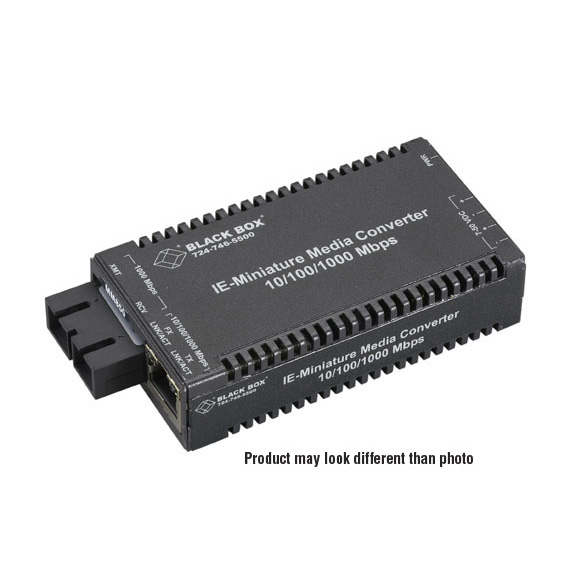

LGC329A-R2

Photo may show similar product

Other views

Industrial MultiPower Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Single-Mode Fiber, Single-Strand, 1550-nm TX/1310-nm RX, 60 km, SC

Provides Gigabit speeds over single-strand single-mode fiber.

LGC329A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Uses single-strand single-mode fiber cable.
  • Extended temperature range when used with DC power: -13 to +158º F (-25 to +70° C).
  • Can be used as a standalone device or DIN rail mounted.


  • Description

    Industrial MultiPower Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Single-Mode Fiber, Single-Strand, 1550-nm TX/1310-nm RX, 60 km, SC


    Quick Facts

  • Uses single-strand single-mode fiber cable.
  • Extended temperature range when used with DC power: -13 to +158º F (-25 to +70° C).
  • Can be used as a standalone device or DIN rail mounted.

  • Further Details

  • The 10-/100-/1000-Mbps copper port autonegotiates speed.

  • This Single-Strand Fiber Industrial MultiPower Media Converter seamlessly and transparently converts 10-/100-/1000-Mbps copper to 1000-Mbps fiber. As a Layer 2 media converter, it automatically senses and adapts to speed on the copper side for truly plug-and-play operation.

    Use this converter to extend your network over fiber at distances up to 60 kilometers (37.2 mi.) on single-mode cable. This model both sends and receives over one strand of fiber by using different wavelengths in each direction. Because it uses only a single strand of fiber, you save on fiber infrastructure!

    Industrial MultiPower Media Converters are designed for use in harsh industrial environments. When used with DC power, the converters support an extended temperature range of -13 to +158° F (-25 to +70° C), making them suitable for a wide range of industrial applications.

    In all, there are three different ways to power the converter: with its AC adapter, using 5–50-VDC terminal block power, or via an optional USB Power Adapter Cable, which you plug into your PC's USB port and is sold separately (LHC021A).

    You can even use multiple power options at the same time to provide maximum redundancy and ensure that your mission-critical applications remain up and running. Then, if any one of these power sources fails, the other sources will continue to supply power to the converter seamlessly.

    The converter comes with a DIN clip for DIN rail mounting. When installing multiple Industrial MultiPower Media Converters on a DIN rail, use one DC input source, then cascade from one DC block to the next until you reach the maximum current available.


    Technical Specifications for Industrial MultiPower Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Single-Mode Fiber, Single-Strand, 1550-nm TX/1310-nm RX, 60 km, SC:

    Cable Requirements Twisted pair: CAT5 or above, shielded or unshielded;
    Single-mode fiber: 9-/125-µm single-strand
    Data Rate Copper: 10/100/1000 Mbps;
    Fiber: 1000 Mbps
    Operating Environment Temperature: Using AC adapter: +32 to +122° F (0 to +50° C);
    Using other available power sources: -13 to +158° F (-25 to +70° C);
    Humidity: 5 to 95% noncondensing
    Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
    CE Approval Yes
    Connectors (1) RJ-45, (1) SC, (1) AC power, (1) 4-terminal DC power
    Indicators LEDs: (1) FX LNK/ACT, (1) TX LNK/ACT
    Power From the included external 100-240-VAC, 50-60-Hz adapter;
    Via the terminal block: 5 to 50 VDC;
    Via USB Power Adapter Cable (LHC021A) connected to a computer's USB port;
    From the PowerTray with a 100-240 VAC, 50-60 Hz (LHC018A-AC-R2) power supply;
    From a PSE over a Power over Ethernet link
    Size 0.8"H x 1.8"W x 3.4"D (2 x 4.6 x 8.6 cm)

    NOTE: The power supply included with this converter is not compatible with the earlier version of this product (LGC329A).

    NOTE: Must be used in a pair with LGC328A-R2.
    This product works with:
    • USB Power Adapter Cable (LHC021A)
    • PowerTray (LHC018A-AC-R2)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
