Datacom > Extenders & Line Drivers

click photo to enlarge

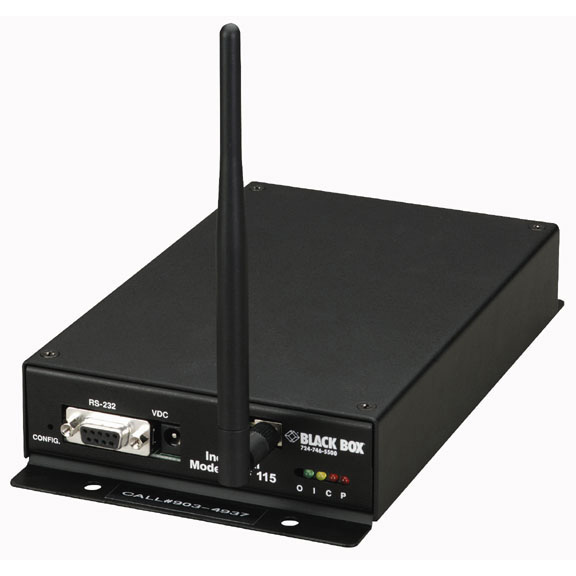

MDR100A-R4

Photo may show similar product

Other views

Industrial Modem RF115

Transmit data securely through the harshest environments—up to 20 miles!

MDR100A-R4

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Makes wireless line-of-sight connections up to 20 miles (32.1 km) and up to 60 miles (96.5 km) with two repeaters.
  • Transmits uncompressed data at speeds up to 115 kbps, half-duplex.
  • Frequency-Hopping Spread Spectrum technology sends data error free via radio waves.

  • Description

    Industrial Modem RF115


    Quick Facts

  • Makes wireless line-of-sight connections up to 20 miles (32.1 km) and up to 60 miles (96.5 km) with two repeaters.
  • Transmits uncompressed data at speeds up to 115 kbps, half-duplex.
  • Frequency-Hopping Spread Spectrum technology sends data error free via radio waves.

  • Further Details

  • Supports point-to-point or multipoint RS-232 links. Plug-in RS-422/485 modules also available.
  • Heavy-gauge steel and extended-temperature components ensure industrial operation.

    Our compact wireless Industrial Modem RF115 opens up a whole new world of options for establishing vital async data links in really tough environments.

    Industrial Modem RF115 uses Frequency-Hopping Spread Spectrum wireless technology to broadcast async data quickly and securely where dialup lines and copper wires don’t reach or are too costly to install. Electromagnetic and radio interference (EMI and RFI), industrial motors, even temperature extremes are no hazards to communication when you use the Industrial Modem RF115.

    Set up two modems with either standard or optional antennas in a point-to-point configuration to connect an alarm unit, distant data-collection terminal, or remote-control device. Or contact multiple remote devices in a polled multipoint setting.

    In addition to providing error-free throughput and data security, the Industrial Modem RF115 offers excellent throughput rates. Each modem includes a fixed-whip antenna but can be outfitted with any of the optional RF Antennas, which can be located up to 100 feet (30.4 m) from your base unit. For communication up to 20 miles (32.1 km), set up the antennas in a direct line-of-sight configuration. And with two repeaters, you can transmit up to 60 miles (96.5 km) in line-of-sight connections! Be sure to use lightning arrestors when using outdoor antennas.

    This modem can also help you to make within-the-building wireless connections (with obstructions) up to 1000 feet (304.8 m).
    The MDR100A-R4 includes:
  • (1) modem
  • (1) fixed-whip antenna
  • (1) power supply

  • NOTE: To match older modems or antennas with newer versions, contact our FREE Tech Support.

    This product works with:
  • Industrial Modem RF115 Modules (MD3310-R2, MD3311-R2)
  • Industrial Modem RF115 Omnidirectional RF Antenna with Bracket Mount (MDR151-R2, MDR151A-R3)
  • Industrial Modem RF115 Yagi (Unidirectional) RF Antenna with Bracket Mount (MDR152-R4)
  • DB9 Extension Cables (with EMI/RFI Hoods) (EDN12H)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for Industrial Modem RF115:

    Hopping Code — 15 orthogonal user-selectable pseudorandom algorithms
    Occupied Bandwidth — 230 kHz
    Operating Environment — Temperature: -40 to +167° F (-40 to +75° C);
    Humidity: Up to 95%, noncondensing
    Protocol — Async, Modbus RTU support
    Radio Frequency — 902- to 928-MHz Frequency-Hopping Spread Spectrum; no FCC license required
    Range (Maximum) — 20 mi. (32.1 km) line of sight, depending on environment, geographical conditions, and optional antenna; 60 mi. (96.5 km) with 2 repeaters
    RF Output Power — 1/10 to 1 watt (selectable in 1/10 increments)
    Speed (Maximum) — 115.2 kbps half-duplex (57.6 kbps full-duplex)
    Spreading Function — Frequency Hopping 112 channels (96 channels international)
    Word Length — 10-/11-bit maximum
    Interface — RS-232 (can support RS-485 [2-wire] or RS-422 [4-wire] with optional modules)
    Connectors — RS-232: DB9 F;
    Antenna: Standard-thread SMA F;
    Optional RS-485/422 modules: 2- or 4-wire screw terminal strip
    Power — 12 VDC (24 VDC available as special order); 115- or 230-VAC wallmount transformer included
    Size — 1.4"H x 5"W x 7.8"D (3.6 x 12.7 x 19.8 cm)
    Weight — 1.8 lb. (0.8 kg)
    NOTE: To match older modems or antennas with newer versions, contact our FREE Tech Support.

    This product works with:
  • Industrial Modem RF115 Modules (MD3310-R2, MD3311-R2)
  • Industrial Modem RF115 Omnidirectional RF Antenna with Bracket Mount (MDR151-R2, MDR151A-R3)
  • Industrial Modem RF115 Yagi (Unidirectional) RF Antenna with Bracket Mount (MDR152-R4)
  • DB9 Extension Cables (with EMI/RFI Hoods) (EDN12H)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
