Datacom > Modems & CSUs

click photo to enlarge

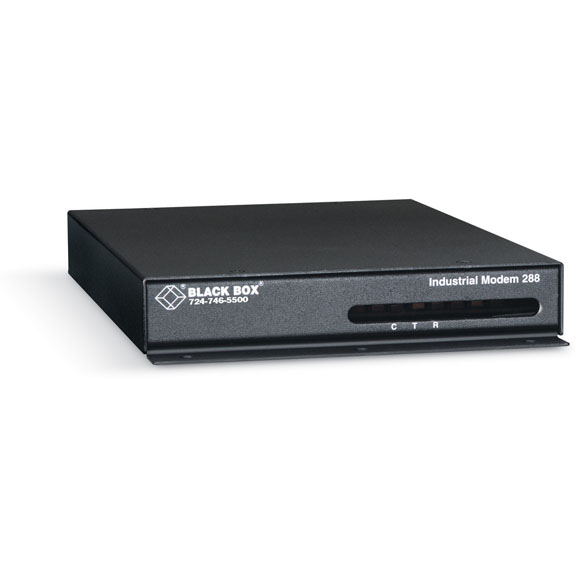

MD3400A

Photo may show similar product

Other views

Industrial Modem 288

Industrial-strength communications at 28.8 kbps.

MD3400A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Use this sturdy, temperature-tolerant modem for your industrial applications.
  • Durable metal enclosure wards off signal-disrupting EMI/RFI signals.

  • Description

    Industrial Modem 288


    Quick Facts

  • Use this sturdy, temperature-tolerant modem for your industrial applications.
  • Durable metal enclosure wards off signal-disrupting EMI/RFI signals.

  • Further Details

  • V.34 trellis encoding, error correction, and data compression support throughput rates up to 57.6 kbps.
  • Operates via dialup or leased phone lines. Or hardwire it as a point-to-point line driver for links up to 20 miles (32 km).
  • Operates reliably at temperatures of 32 to 140° F (0 to 60° C).
  • Modules (MD3315–MD3316) are available for 2-wire RS-485 or 4-wire RS-422 interfaces.
  • Steel bolt-mount flange anchors the modem for use in rough industrial settings.
  • Easily managed from a central site.


  • The BLACK BOX® Industrial Modem 288 has a durable design that supports communications in application environments with motors, generators, and air-conditioning compressors—all of which emit EMI. And it endures temperatures from 32 to 140° F (0 to 60° C).

    Use it for remote data-acquisition or process-control applications where a standalone device must ensure throughput. It monitors activity anywhere that ordinary modems can’t go.

    You can also send data across long 2-wire leased- or dialup-line links. Or hardwire the modem as a line driver for point-to-point connections up to 20 miles (32.1 km).

    This product works with:
  • RS-485 Modem 144/288 Modules for Industrial Modem 288 (MD3315–MD3316)
  • RS-232 Extended Distance/Quiet Cable (EBN25C)
  • PROCOMM PLUS® 32 Quarterdeck Software (14-00-00397)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for Industrial Modem 288:

    Operating Environment — 32 to 140° F (0 to 60° C)
    Operation — Dialup or 2-wire leased line duplex
    Protocol — Asynchronous
    Speed — 28.8 kbps (up to 115.2 kbps DTE)
    Interface — RS-232 (or RS-422 or RS-485 with optional modules)
    Connectors — (2) RJ-11, (1) DB25 F
    Power — 115-VAC, 60-Hz wallmount adapter (included)
    Size— 1.4"H x 7.5"W x 11.3"D (3.6 x 19.1 x 28.7 cm)
    Weight — 4.5 lb. (2 kg)
    This product works with:
  • RS-485 Modem 144/288 Modules for Industrial Modem 288 (MD3315–MD3316)
  • RS-232 Extended Distance/Quiet Cable (EBN25C)
  • PROCOMM PLUS® 32 Quarterdeck Software (14-00-00397)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for Industrial Modem 288:

    Product Data Sheets


    Connect your Industrial Modem 288 with:

    Accessory: EBN25C-0005-MM

    Extended-Distance/Quiet Cable with Die-Cast Removable Metallic EMI/RFI Hoods, Stranded, DB25, NEC® CL2, 25 (12 1/2 Pairs)—Pins 1–25, 5-ft. (1.5-m), MM

    Extended-Distance/Quiet Cable with Die-Cast Removable Metallic EMI/RFI Hoods, Stranded, DB25, NEC® CL2, 25 (12 1/2 Pairs)—Pins 1–25, 5-ft. (1.5-m), MM
