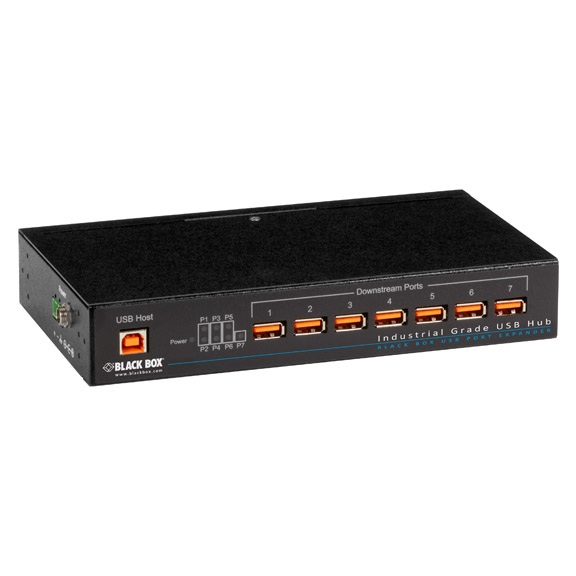

Industrial-Grade USB Hub, 7-Port

This rugged, ESD-protected hub helps ensures maximum uptime for high-speed USB devices.

ICI207A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Features high electrostatic discharge protection (Level 4, 15 kV).
  • Included high-retention ports to help keep USB cables tightly connected.
  • Withstands a wide temperature range: -40 to +176° F (-40 to +80° C).


  • Description

    Industrial-Grade USB Hub, 7-Port


    Quick Facts

  • Features high electrostatic discharge protection (Level 4, 15 kV).
  • Included high-retention ports to help keep USB cables tightly connected.
  • Withstands a wide temperature range: -40 to +176° F (-40 to +80° C).

  • Further Details

  • Housed in a durable, IP30-rated metal enclosure.
  • UL® listed for use in Class 1 Division 2 hazardous areas.
  • Tested for 50G shock and 4g vibration.
  • USB 1.1 and USB 2.0 compatible.
  • Supports USB speeds of 480 Mbps.
  • Includes panel- and DIN rail-mounting hardware.
  • USB bus-powered with external power as an option.
  • Use either a locking barrel plug and terminal block for power input.

  • A great choice for factory, utility, and engineering applications, the Black Box® Industrial-Grade USB Hub, 7-Port enables more reliable USB device connectivity in harsh environments.

    The hub expands one USB port into seven, so you can connect additional USB peripherals to your host system via its upstream port. Considerably more rugged than ordinary, office-grade USB hubs, it's designed to allow you to operate USB peripherals in areas with lots of electromagnetic interference (EMI) and prevent data errors caused by such interference.

    Tested to meet heavy industrial EMC standards, the hub is also designed to prevent ESD (electrostatic discharge) from damaging your connected USB devices—which makes it ideal for use near electronically noisy motor controls, variable frequency drives, and equipment with large electrical loads.

    Because the hub has high-retention ports for device connections, standard USB cables are a lot less likely to shake loose—even in environments with lots of equipment vibration. (Disconnecting them requires up to 3.2 pounds of force.) Cables click into the ports securely to help eliminate data loss.

    Also, because it can be powered via the USB bus, you don't need to locate it next to a power outlet. But, if your downstream USB devices require extra power, the hub can be used with an external power supply. Through its terminal block input or locking barrel plug, it receives power externally from a 10–30-VDC source.

    When the hub is using USB bus power, it provides a maximum of 100 mA to each downstream port; when powered externally, it provides 500 mA to each downstream port.

    The hub includes hardware for mounting, including a DIN rail mounting bracket and panel-mount brackets.

    What's included:
    • Industrial-Grade USB Hub, 7-Port
    • 6-ft. (1.8-m) USB Type A/Type B cable
    • (2) panel-mount adapters with (4) mounting screws
    • DIN rail adapter with (3) mounting screws
    • Quick-start guide

    NOTE: A power supply is not included. To order, contact Black Box Tech Support for our PS290 power supply.


    Technical Specifications for Industrial-Grade USB Hub, 7-Port :

    MTBF 211,773 hours (MIL 217F parts count reliability calculated)
    Standards USB 1.1, USB 2.0
    USB Interface ESD 15 kV (air), 8 kV (contact)
    USB Interface Surge Protection +/- 0.5 kV (DC ports), +/- 1 kV (signal ports)
    USB Speed (Maximum) 480 Mbps
    CE Approval Yes
    Connectors Upstream port: (1) USB Type B F (high retention with withdrawal of >15 N);
    Downstream ports: (7) USB Type A F (high retention with withdrawal of >15 N)
    Indicators (6) LEDs: (1) USB Bus Power, (1) External Power, (7) USB Port Ready
    Operating Environment Temperature: -40 to 176° F (-40 to 80° C);
    Humidity: 0 to 95%, noncondensing
    Power Input: From the USB bus or from separate external 10-30-VDC power supply* (via a terminal block or locking barrel plug input);
    Output: 5 VDC
    Size 1.4"H x 5.5"W x 3.5"D (3.6 x 14 x 8.8 cm)
    Weight 1.4 lb. (0.6 kg)

    * NOTE: A power supply is not included. To order, contact Black Box Tech Support for our PS290 power supply.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Industrial-Grade USB Hub, 7-Port :

    Manuals

    • Industrial-Grade USB Hub User Manual
      User Manual for the ICI207A & ICI208A (Version 1)
