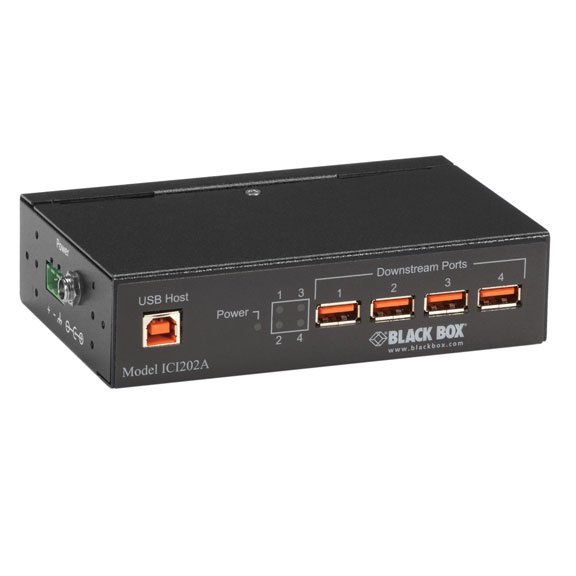

Industrial-Grade USB Hub, 4-Port with Isolation

This rugged, ESD-protected and isolated hub helps ensures maximum uptime for USB devices.

ICI202A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

Features high electrostatic discharge protection (Level 4, 15 kV).

Offers 4-kV isolation between upstream and downstream ports.

Included high-retention ports to help keep USB cables tightly connected.

Withstands a wide temperature range: -40 to +176° F (-40 to +80° C).

Description

Industrial-Grade USB Hub, 4-Port with Isolation

Quick Facts

Features high electrostatic discharge protection (Level 4, 15 kV).

Offers 4-kV isolation between upstream and downstream ports.

Included high-retention ports to help keep USB cables tightly connected.

Withstands a wide temperature range: -40 to +176° F (-40 to +80° C).

Further Details

Housed in a durable, IP30-rated metal enclosure.

UL® listed for use in Class 1 Division 2 hazardous areas.

Meets the EN60601-1-2 standard for medical electronics.

Tested for 50G shock and 4g vibration.

USB 1.1 and USB 2.0 compatible.

Supports USB speeds of 12 Mbps.

Includes panel- and DIN rail-mounting hardware.

Use either a locking barrel plug and terminal block for power input.

A great choice for factory, utility, engineering, and even healthcare applications, the Black Box® Industrial-Grade USB Hub, 4-Port with Isolation enables more reliable USB device connectivity in harsh environments.

The hub expands one USB port into four, so you can connect additional USB peripherals to your host system via its upstream port. Considerably more rugged than ordinary, office-grade USB hubs, it’s designed to allow you to operate USB peripherals in areas with lots of electromagnetic interference (EMI) and prevent data errors caused by such interference.

Tested to meet heavy industrial EMC standards, the hub is also designed to prevent ESD (electrostatic discharge) from damaging your connected USB devices—which makes it ideal for use near electronically noisy motor controls, variable frequency drives, and equipment with large electrical loads.

The hub supports full-speed (12 Mbps) USB 2.0 connections and offers isolation from ground loops. Use it, for instance, in areas where you are connecting a PLC in one cabinet to a drive in another cabinet, or in tightly packed medical cart. It enables data to pass unaffected while 4-kV isolation between the upstream and downstream USB ports helps prevent harm to important USB devices.

Because the hub has high-retention ports for device connections, standard USB cables are a lot less likely to shake loose—even in environments with lots of equipment vibration. (Disconnecting them requires up to 3.2 pounds of force.) Cables click into the ports securely to help eliminate data loss.

Through its terminal block input or locking barrel plug, it receives power externally from a 10–30-VDC source and provides 500 mA to each downstream port.

The hub includes hardware for mounting, including a DIN rail mounting bracket and panel-mount brackets.

What’s included:
• Industrial-Grade USB Hub, 4-Port with Isolation
• 6-ft. (1.8-m) USB Type A/Type B cable
• (2) panel-mount adapters with (4) mounting screws
• DIN rail adapter with (3) mounting screws
• Quick-start guide

NOTE: A power supply is not included. To order, contact Black Box Tech Support for our PS290 power supply.

Technical Specifications for Industrial-Grade USB Hub, 4-Port with Isolation:

MTBF — 190,999 hours (MIL 217F parts count reliability calculated)
Standards — USB 1.1, USB 2.0
USB Interface ESD — 15 kV (air), 8 kV (contact)
USB Interface Isolation — 4 kV, upstream port isolated from downstream ports
USB Interface Surge Protection — +/- 0.5 kV (DC ports), +/- 1 kV (signal ports)
USB Speed (Maximum) — 12 Mbps
CE Approval — Yes
Connectors — Upstream port: (1) USB Type B F (high retention with withdrawal of >15 N);
Downstream ports: (4) USB Type A F (high retention with withdrawal of >15 N)
Indicators — (6) LEDs: (1) USB Bus Power, (1) External Power, (4) USB Port Ready
Operating Environment — Temperature: -40 to 176° F (-40 to 80° C);
Humidity: 0 to 95%, noncondensing
Power — Input: From external 10–30-VDC power supply* (via a terminal block or locking barrel plug input);
Output: 5 VDC
Size — 1.4"H x 5.5"W x 3.5"D (3.6 x 14 x 8.8 cm)
Weight — 1.4 lb. (0.6 kg)

* NOTE: A power supply is not included. To order, contact Black Box Tech Support for our PS290 power supply.

NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
