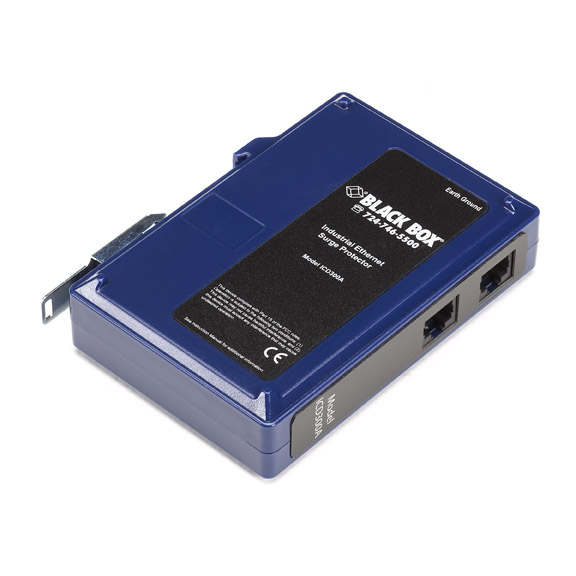

ICD300A

Photo may show similar product

Other views

Industrial Ethernet Surge Protector, DIN Rail

Industrial-grade protection for CAT5e and PoE connections.

ICD300A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Protects all eight wires of CAT5e cabling for devices in factories and other harsh environments.
  • Space-saving, slim enclosure with a DIN rail mount.
  • Use in Power over Ethernet (PoE) applications, too.



  • Description

    Industrial Ethernet Surge Protector, DIN Rail


    Quick Facts

  • Protects all eight wires of CAT5e cabling for devices in factories and other harsh environments.
  • Space-saving, slim enclosure with a DIN rail mount.
  • Use in Power over Ethernet (PoE) applications, too.


  • Further Details

    This single-port, industrial-strength Ethernet surge protector brings data line protection to 10-/100-Mbps links on plant floors and in other harsh areas.

    The durable DIN mount protector suits temperatures ranging from -40 to +176º F (-40 to +80° C) and is designed to protect all eight pins of standard CAT5e cabling.

    Use this compact device alongside other CAT5e cabled DIN rail equipment, such as hardened switches, media converters, and repeaters. Protecting 10BASE-T or 100BASE-TX connections from transient surges, the surge protector doesn't degrade data signals as they pass through.

    And it works in Power over Ethernet (PoE) applications, too. The 802.11af-compatible surge protector supports both PoE operating modes: Mode A, with power applied to the data pairs (Pins 1/2 and Pins 3/6) and Mode B, with power applied to the unused pairs (Pins 4/5 and Pins 7/8).



    Technical Specifications for Industrial Ethernet Surge Protector, DIN Rail:

    Capacitance <50 pF
    Clamping Voltage 60 V
    Peak Pulse Power 600 W
    Peak Surge Current 100 A
    Response Time <5 nS
    CE Approval Yes
    RoHS Yes
    Operating Temperature -40 to +176° F (-40 to +80° C)
    Connectors (2) RJ-45 (10BASE-T/100BASE-TX)
    Size 5"H x 3.3"W x 1.6"D (12.7 x 8.4 x 1.5 cm)
