Networking > Terminal Servers

click photo to enlarge

LES401A

Photo may show similar product

Other views

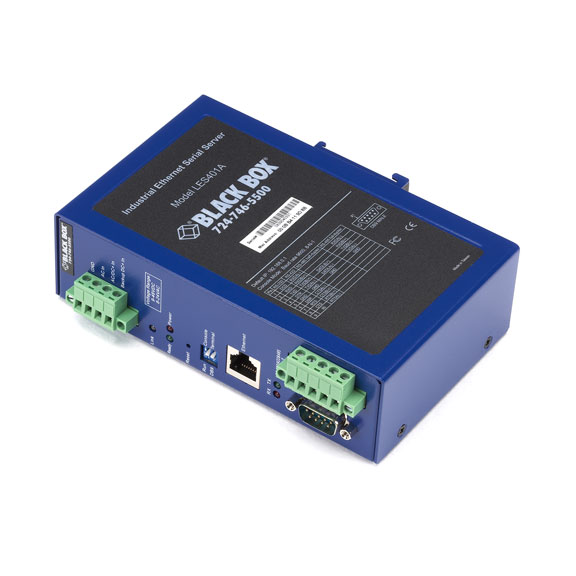

Industrial Ethernet Serial Server, 1-Port

Access hard-to-reach remote serial equipment as if it were local.

LES401A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Control remote serial equipment across your Ethernet network.
  • Slim-line DIN rail box is IP30 rated for use in dirty environments.
  • Support RS-232, RS-422, and RS-485 serial interfaces.

  • Description

    Industrial Ethernet Serial Server, 1-Port


    Quick Facts

  • Control remote serial equipment across your Ethernet network.
  • Slim-line DIN rail box is IP30 rated for use in dirty environments.
  • Support RS-232, RS-422, and RS-485 serial interfaces.

  • Further Details

  • 4-screw power connector enables daisychaining of AC or DC power to multiple servers.
  • Ideal for industrial equipment such as PLCs, drives, motor controls, process analyzers, and more.

    Use these sturdy serial servers to control PLCs, drives, motor controls, process analyzers, and more.

    Whether serial devices are on the factory floor or in a remote location, you can now control them across your Ethernet network with BLACK BOX® Industrial Ethernet Serial Servers.

    Just connect the serial port of your device to the server, and then connect the server to your LAN and monitor equipment as if there were a direct serial connection. Industrial Ethernet Serial Servers work across any IP network—you can even access remote equipment via the Internet.

    The servers are housed in rugged metal cases, are IP30 rated, and are DIN rail mountable. The included software enables easy server management, configuration, and monitoring and supports multiple client sessions.

    This product works with:
  • DIN Rail 12-VDC Power Supply (PSD100)
  • DIN Rail (DR100)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for Industrial Ethernet Serial Server, 1-Port:

    Management — Vlinx™ Manager, Web server, serial console, Telnet™
    Operation — Half- and full-duplex
    Speed — Network: 10BASE-T, 100BASE-TX: 10/100 Mbps, autosensing;
    Serial: 110 bps to 230.4 kbps
    CE Approval — Yes
    Interface — RS-232, RS-422, RS-485
    Connectors — Serial: (1), (2), or (4) DB9 M, DTE configuration; LES401A also has (1) terminal block;
    Ethernet: (1) RJ-45;
    Power: (1) 4-screw terminal block
    Power — Works with an 8 VAC–24 VAC or 9 VDC–48 VDC power supply (not included)
    This product works with:
  • DIN Rail 12-VDC Power Supply (PSD100)
  • DIN Rail (DR100)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
